Removal Procedure

  1. Remove the knee bolster screws.
  2. Unsnap the knee bolster.
  3. Twist the brake release cable in order to disengage the knee bolster.
  4. Remove the lap cooler hose.

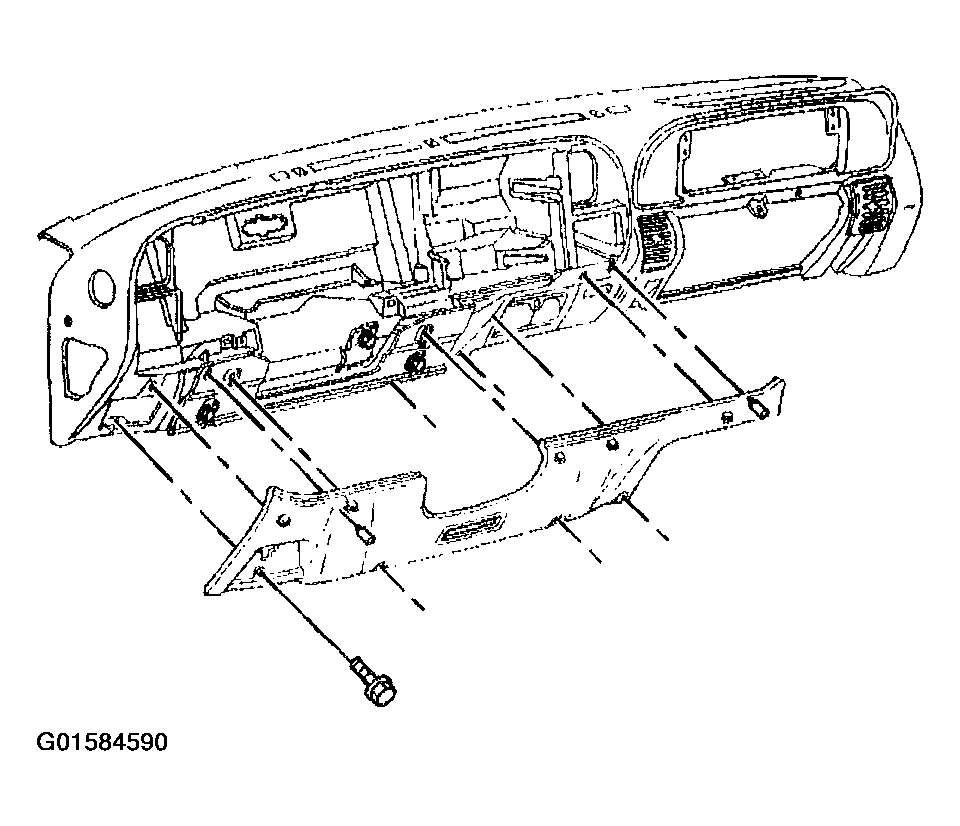

    Fig 1: Knee Bolster & Screws
    G01584590Courtesy of GENERAL MOTORS CORP.
