Installation Procedure

  1. Install the lap cooler hose.
  2. Connect the brake release cable.
  3. Snap the knee bolster into the instrument panel assembly.
    NOTE: Refer to FASTENER NOTICE .

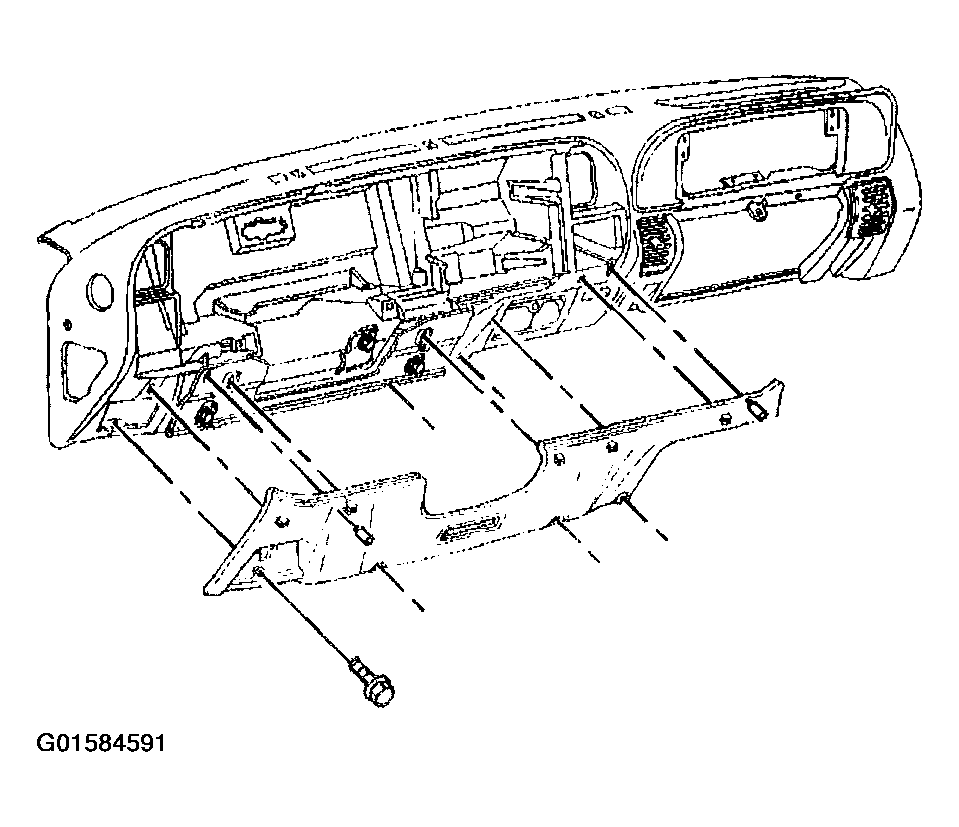

    Fig 1: Knee Bolster & Screws
    G01584591Courtesy of GENERAL MOTORS CORP.
  4. Install the knee bolster screws.

    Tighten

    Tighten the knee bolster screws to 2 N.m (18 lb in).
