Installation Procedure

  1. Install the instrument cluster into the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the instrument cluster hold-down screws.

    Tighten

    Tighten the instrument cluster hold-down screws to 2 N.m (18 lb in).

  3. Connect the electrical connectors to the headlamp switch and the dimmer control and accessory switches.

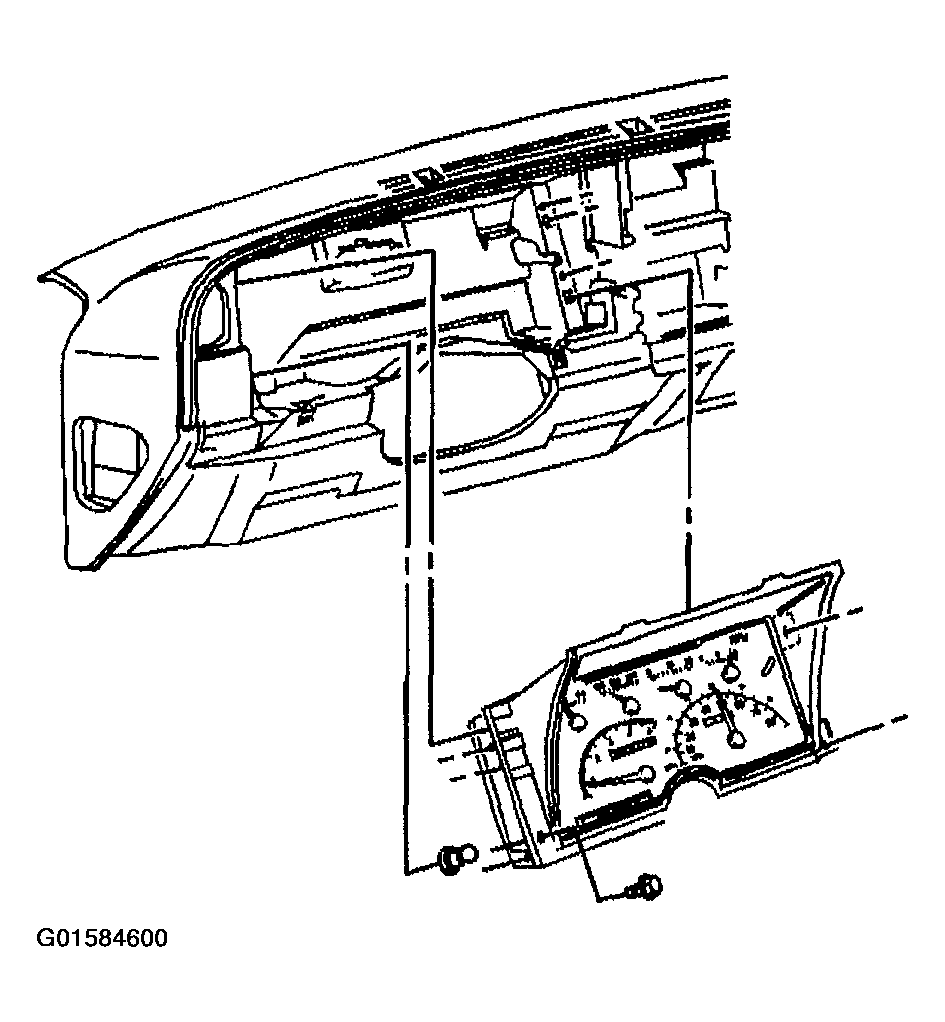

    Fig 1: Instrument Cluster & Screws
    G01584600Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument cluster bezel.

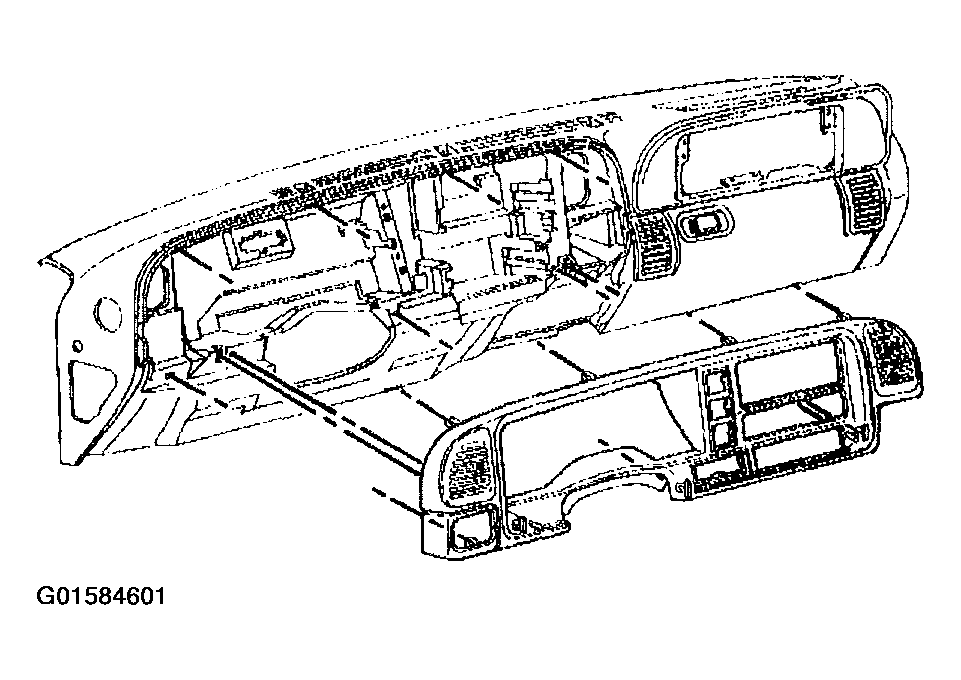

    Fig 2: Instrument Cluster Bezel
    G01584601Courtesy of GENERAL MOTORS CORP.
