Installation Procedure

  1. Pivot the instrument panel forward.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 3 upper IP to dash screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the left and the right lower instrument panel pivot bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

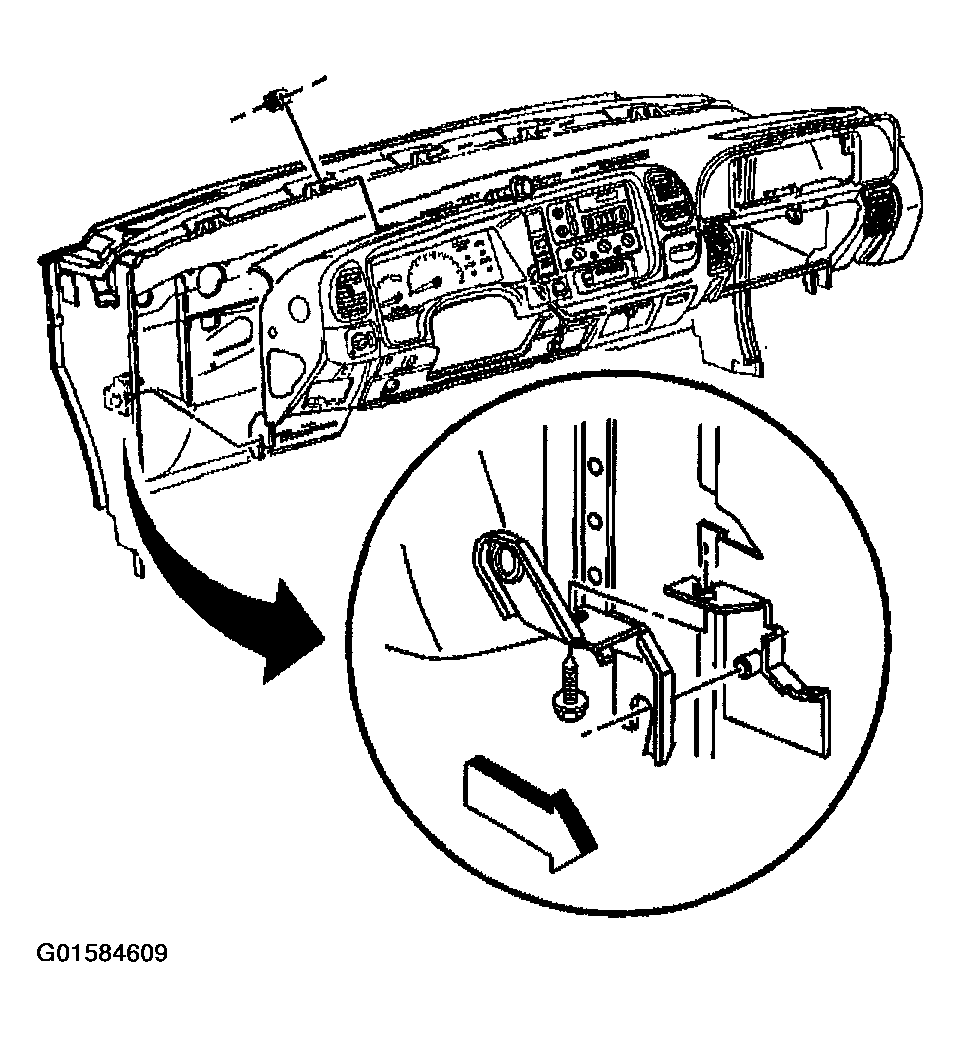

    Fig 1: Left & Right Lower Instrument Panel Pivot Bolts
    G01584609Courtesy of GENERAL MOTORS CORP.
  4. Install the center support screw.
  5. Install the steering column.
  6. Install the tubular tie bar under steering column.
  7. Install the knee deflector bracket.

    Tighten

    Tighten the knee deflector bracket bolts to 3 N.m (27 lb in).

  8. Install the knee bolster reinforcement.

    Tighten

    Tighten the bolts to 7 N.m (62 lb in).

  9. Install the knee bolster. Refer to Knee Bolster Replacement .

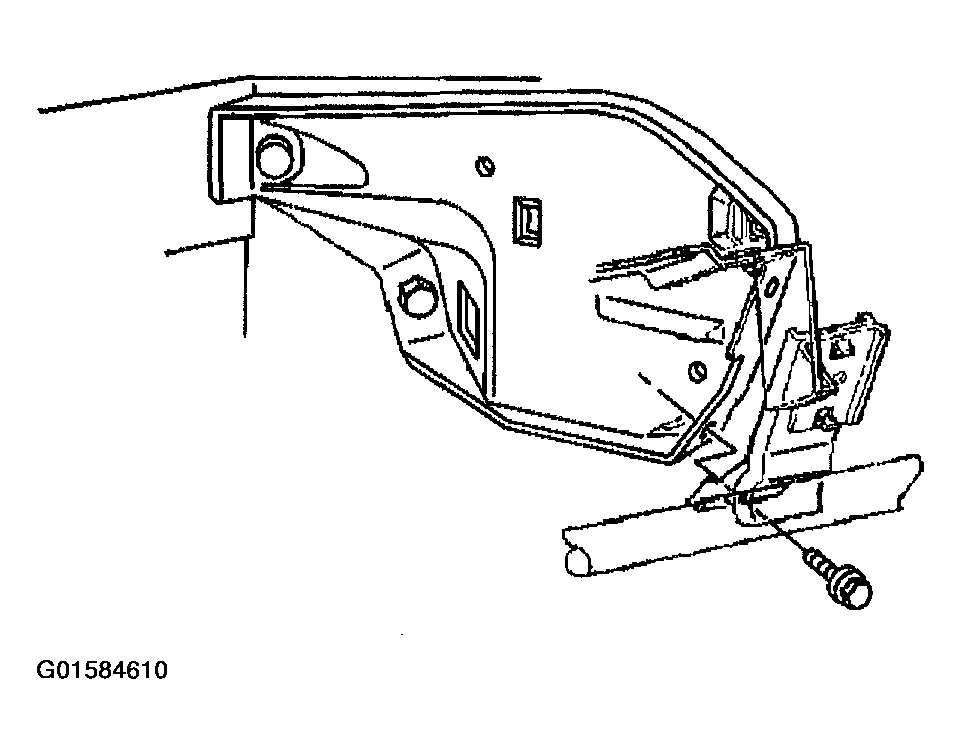

    Fig 2: Center Support Screw
    G01584610Courtesy of GENERAL MOTORS CORP.
  10. Install the IP storage compartment door. Refer to Storage Compartment Replacement - IP .

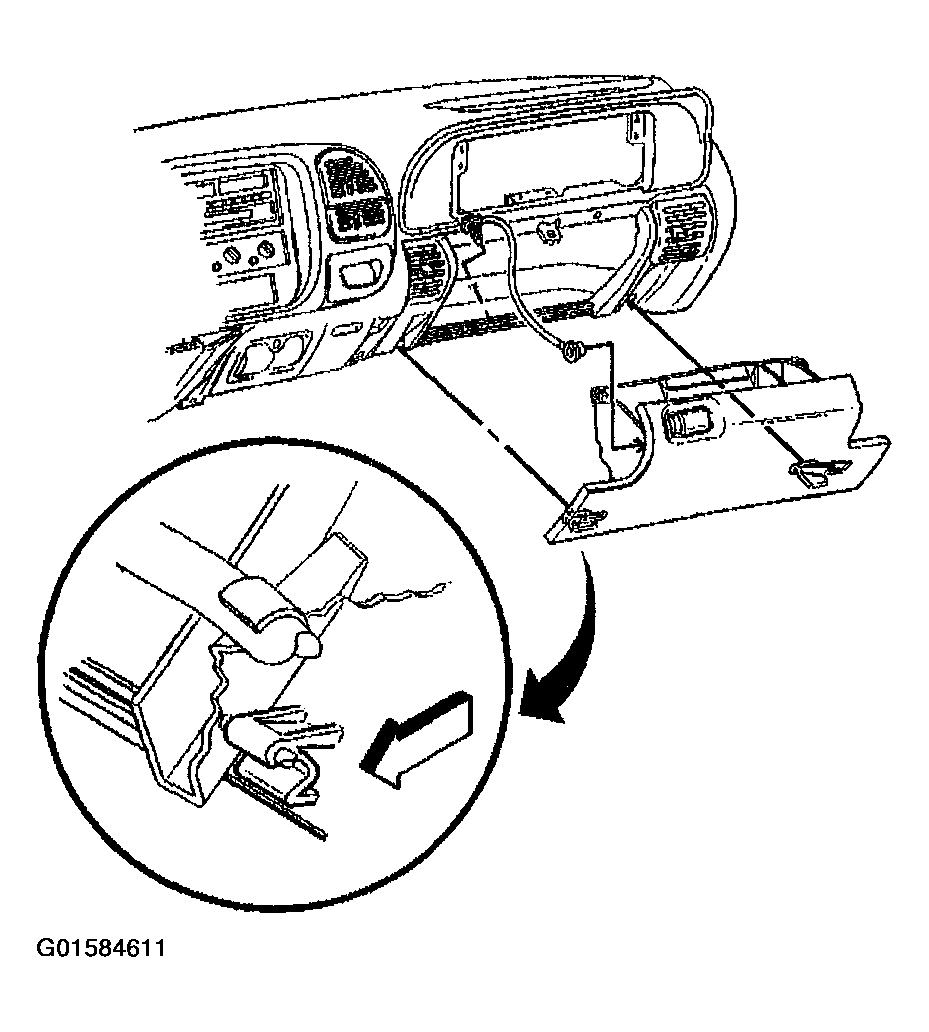

    Fig 3: IP Storage Compartment Door
    G01584611Courtesy of GENERAL MOTORS CORP.
