Removal Procedure

  1. Remove the ashtray. Refer to Ashtray Replacement .
  2. Slide the cupholder out.
  3. Remove the knee bolster. Refer to Knee Bolster Replacement .
  4. Remove the two rear screws from the cupholder.
  5. Remove the cupholder retainer from underneath the instrument panel by twisting the retainer to the left.
  6. Remove the cupholder.

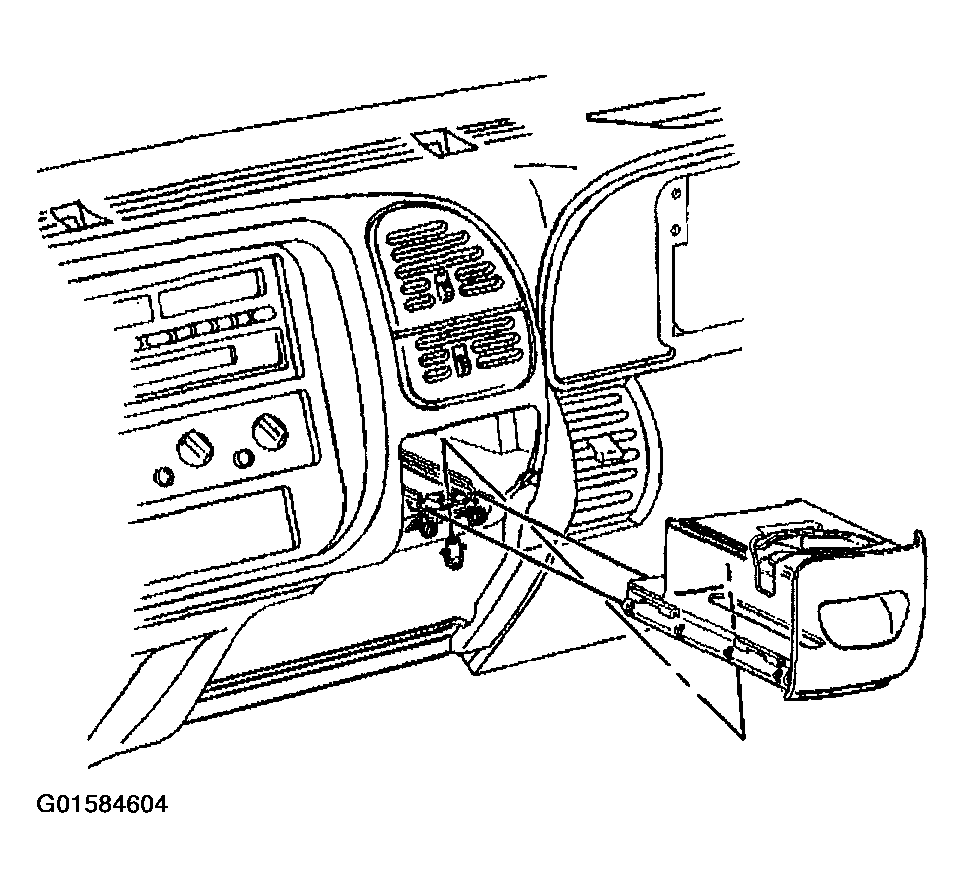

    Fig 1: Cupholder & Screws
    G01584604Courtesy of GENERAL MOTORS CORP.
