Installation Procedure

  1. Slide the cupholder onto the metal track in the instrument panel.
  2. Install the cupholder retainer from underneath the instrument panel by twisting the retainer to the right.
  3. Slide the cupholder into the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the two rear screws to the cupholder

    Tighten

    Tighten the screws to 2 N.m (18 lb in), while holding the cupholder face plate against the cluster bezel opening to assure proper alignment.

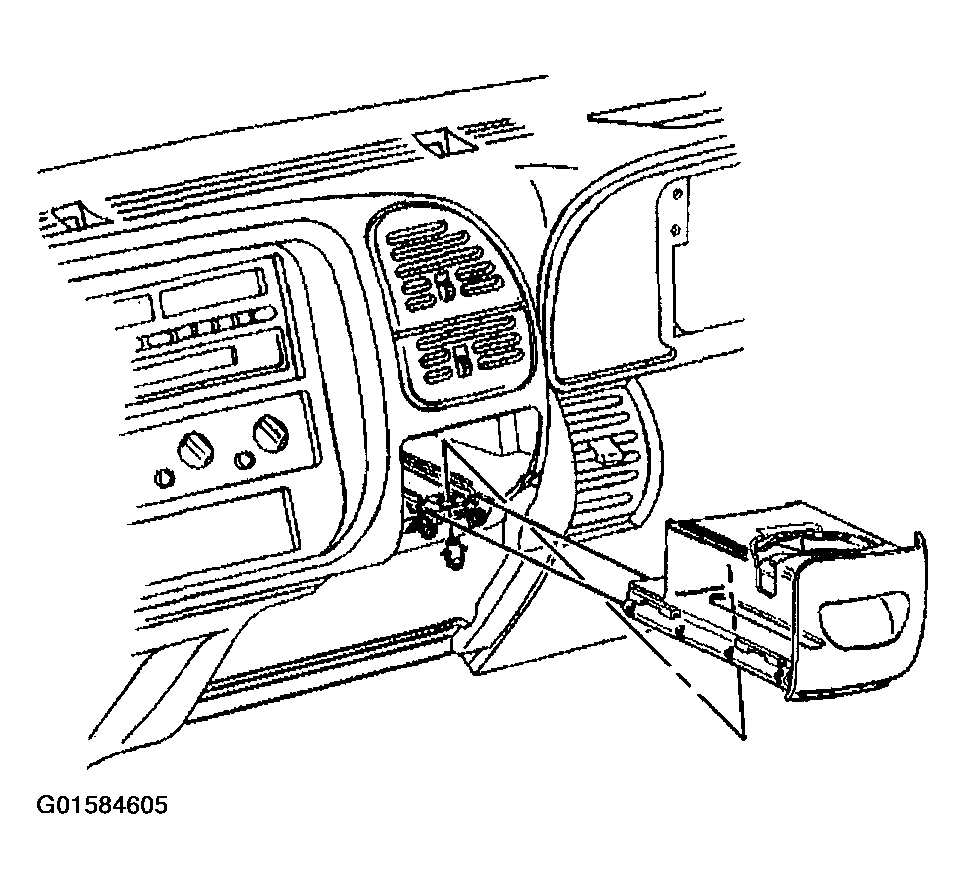

    Fig 1: Cupholder & Screws
    G01584605Courtesy of GENERAL MOTORS CORP.
  5. Install the ashtray. Refer to Ashtray Replacement .
  6. Install the knee bolster. Refer to Knee Bolster Replacement .
