Removal Procedure

  1. Remove the console trim plate. Refer to Trim Plate Replacement - Console .
  2. Remove the console storage bin screws.
  3. Remove the console storage bin from the console.

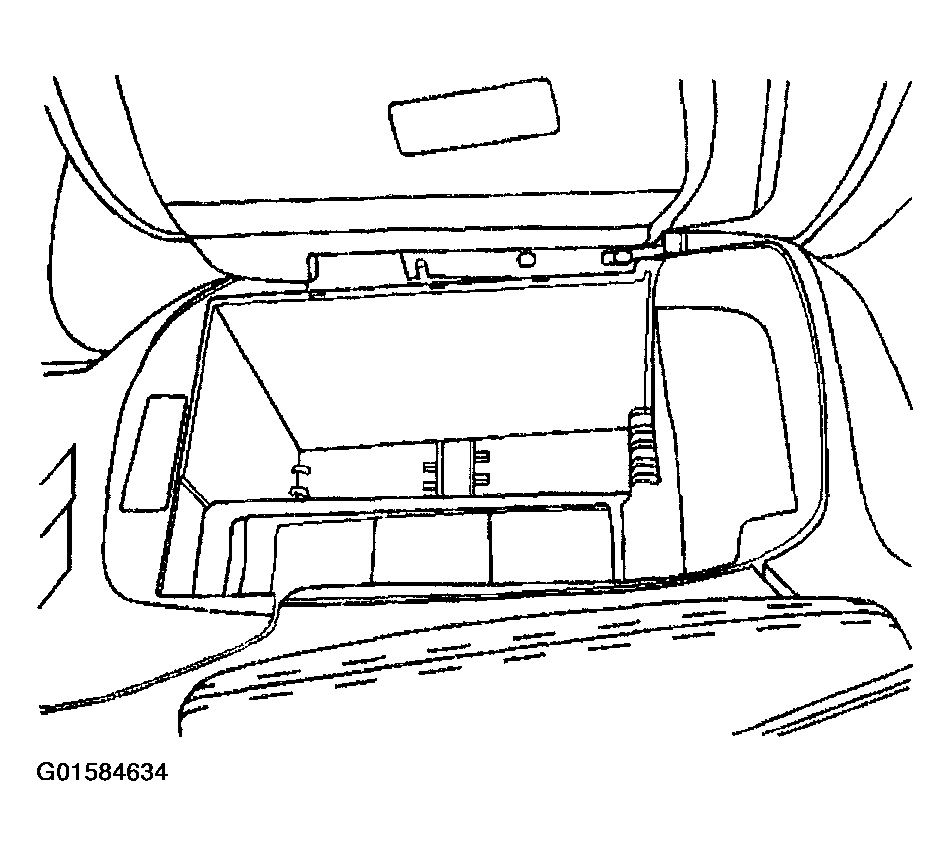

    Fig 1: Console Storage Bin
    G01584634Courtesy of GENERAL MOTORS CORP.
