Installation Procedure

  1. Install the console storage bin to the console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the console storage bin screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the console trim plate. Refer to Trim Plate Replacement - Console .

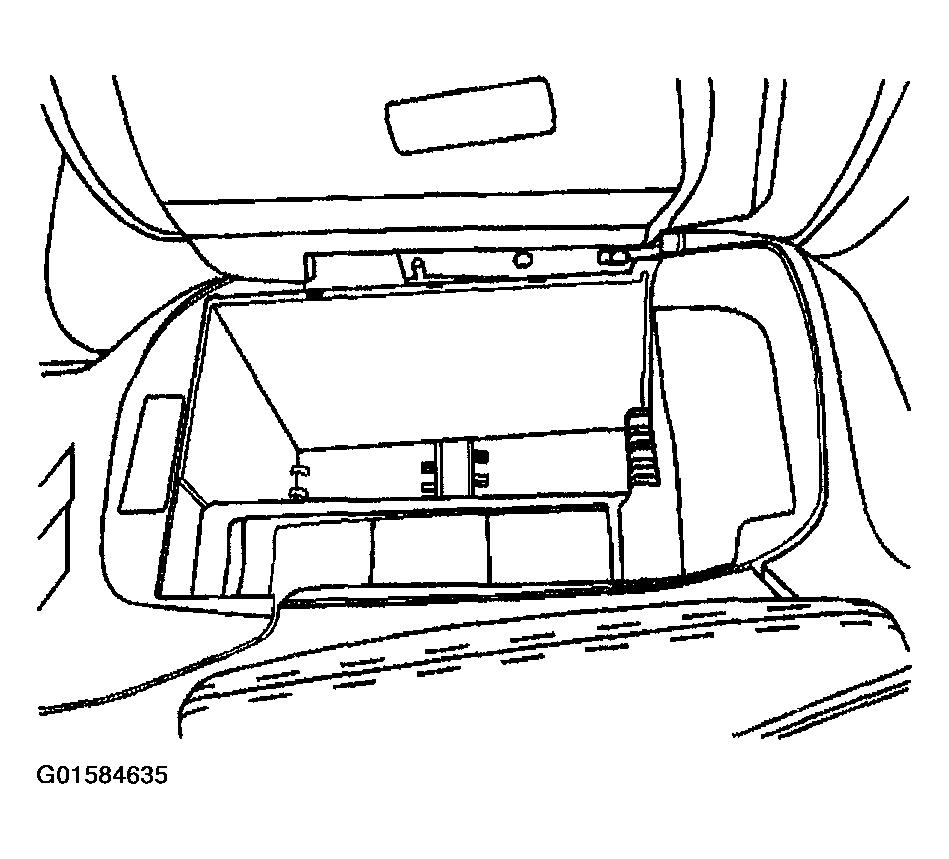

    Fig 1: Console Storage Bin
    G01584635Courtesy of GENERAL MOTORS CORP.
