Removal Procedure

  1. Remove the front tray (4) from the compartment.
  2. Remove the storage bin.
  3. Remove the two bolts (2).
  4. Remove the storage compartment (1).

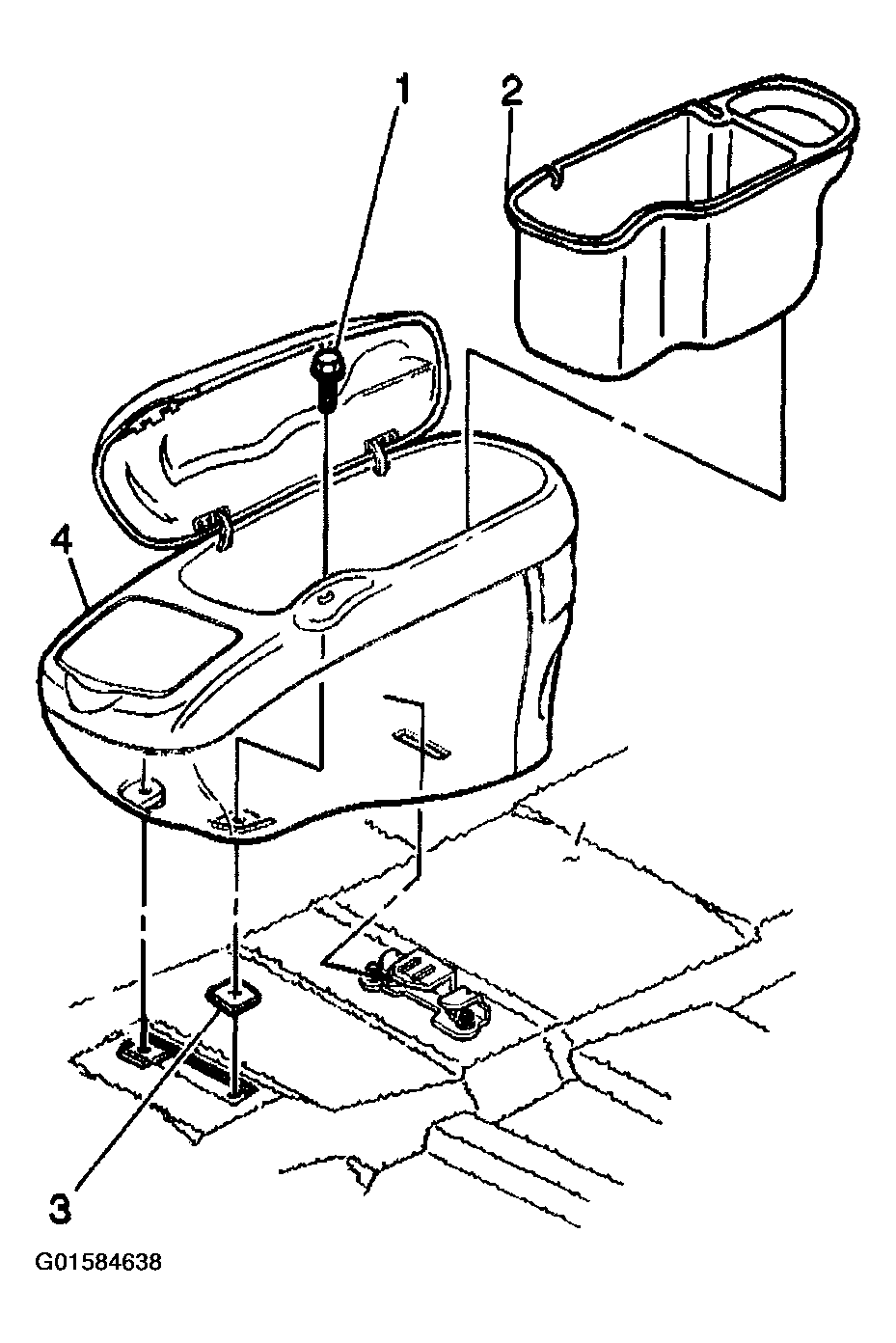

    Fig 1: Front Tray, Storage Compartment & Bolts
    G01584638Courtesy of GENERAL MOTORS CORP.
