Installation Procedure

  1. Install the storage compartment (1).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the two bolts (2).

    Tighten

    Tighten the storage compartment bolts to 6 N.m (53 lb in).

  3. Install the storage bin.
  4. Install the front tray (4).

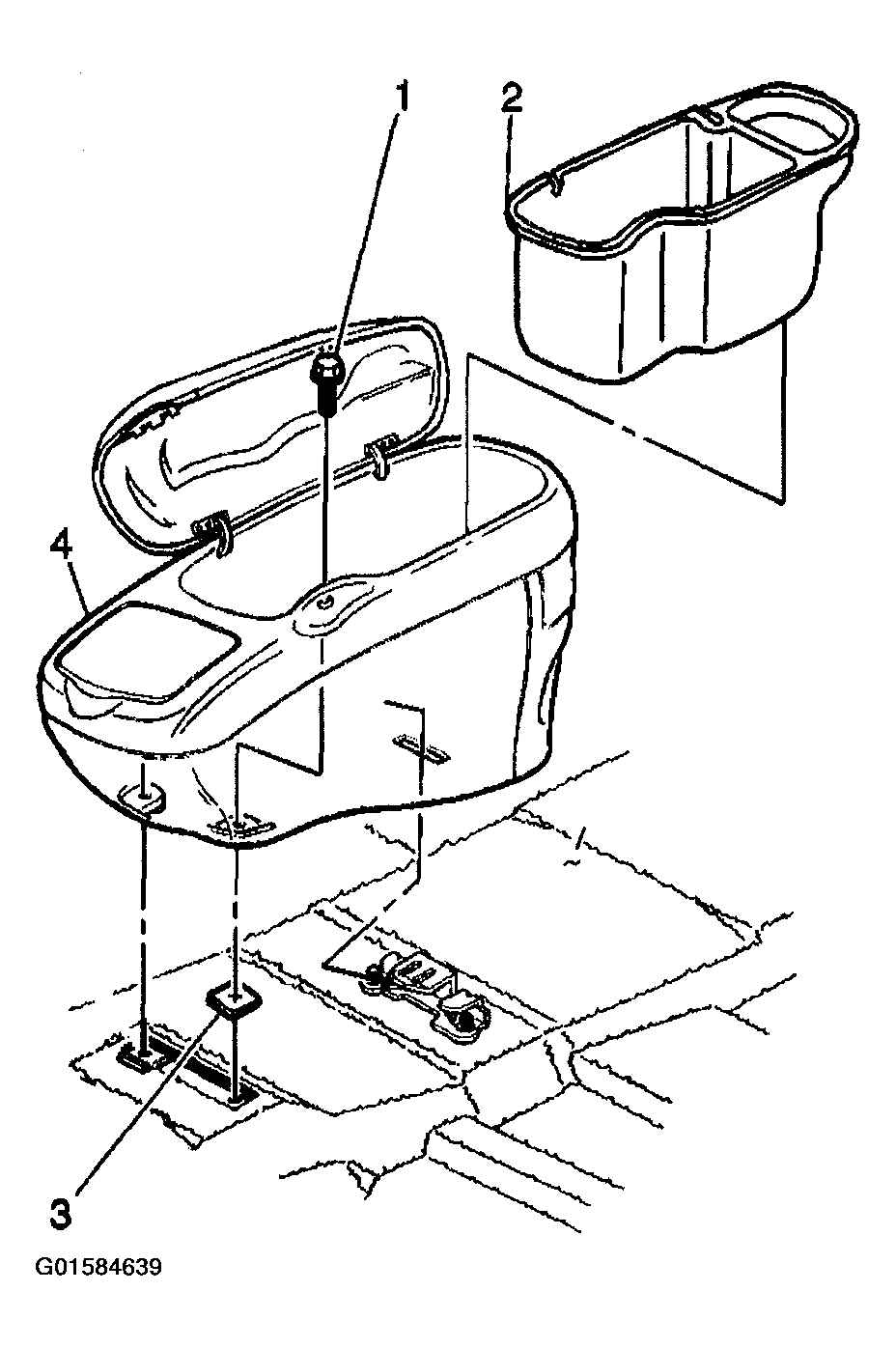

    Fig 1: Front Tray, Storage Compartment & Bolts
    G01584639Courtesy of GENERAL MOTORS CORP.
