Removal Procedure

  1. Roll the instrument panel. Refer to IP Assembly - Rotating .
  2. Remove the four nuts that retain the instrument panel compartment assembly to the carrier.
  3. Remove the instrument panel compartment from the instrument panel.
  4. Remove the distorted clips from the IP.

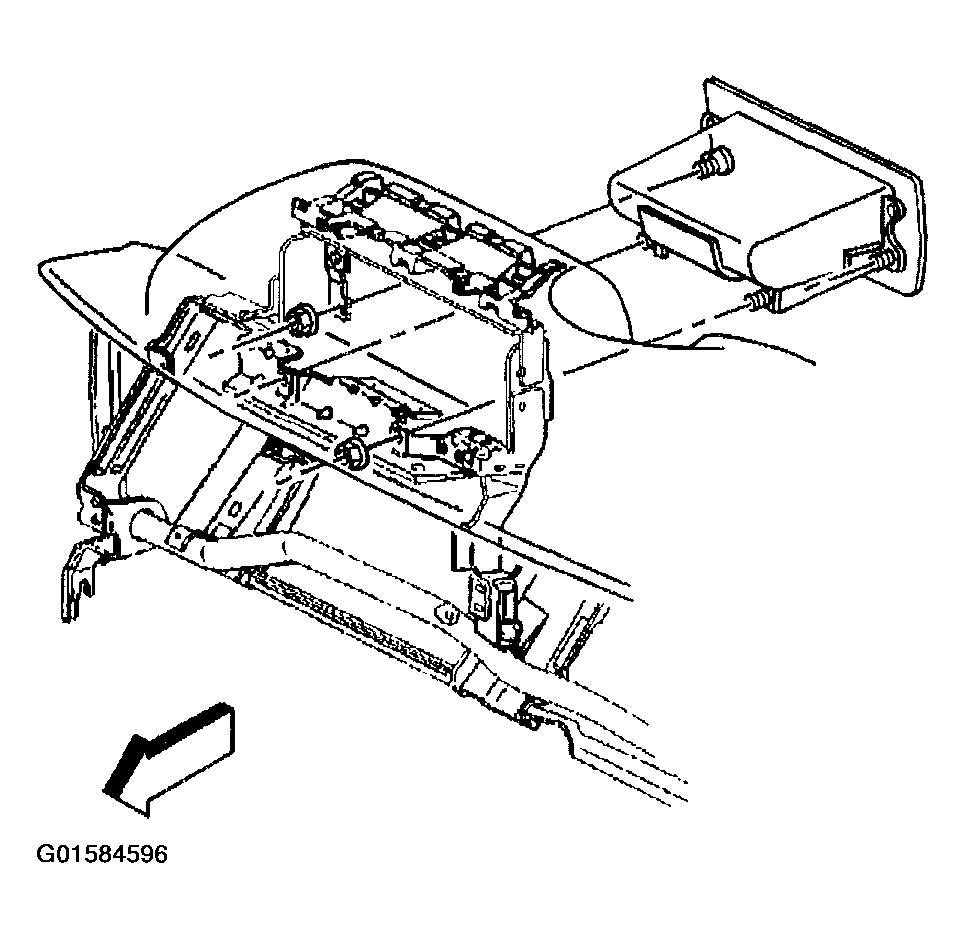

    Fig 1: Instrument Panel Compartment Assembly & Retaining Nuts
    G01584596Courtesy of GENERAL MOTORS CORP.
