Installation Procedure

  1. Install the instrument panel compartment into the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the four nuts that retain the instrument panel compartment assembly to the carrier.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Roll the instrument panel back into place and secure. Refer to IP Assembly - Rotating .

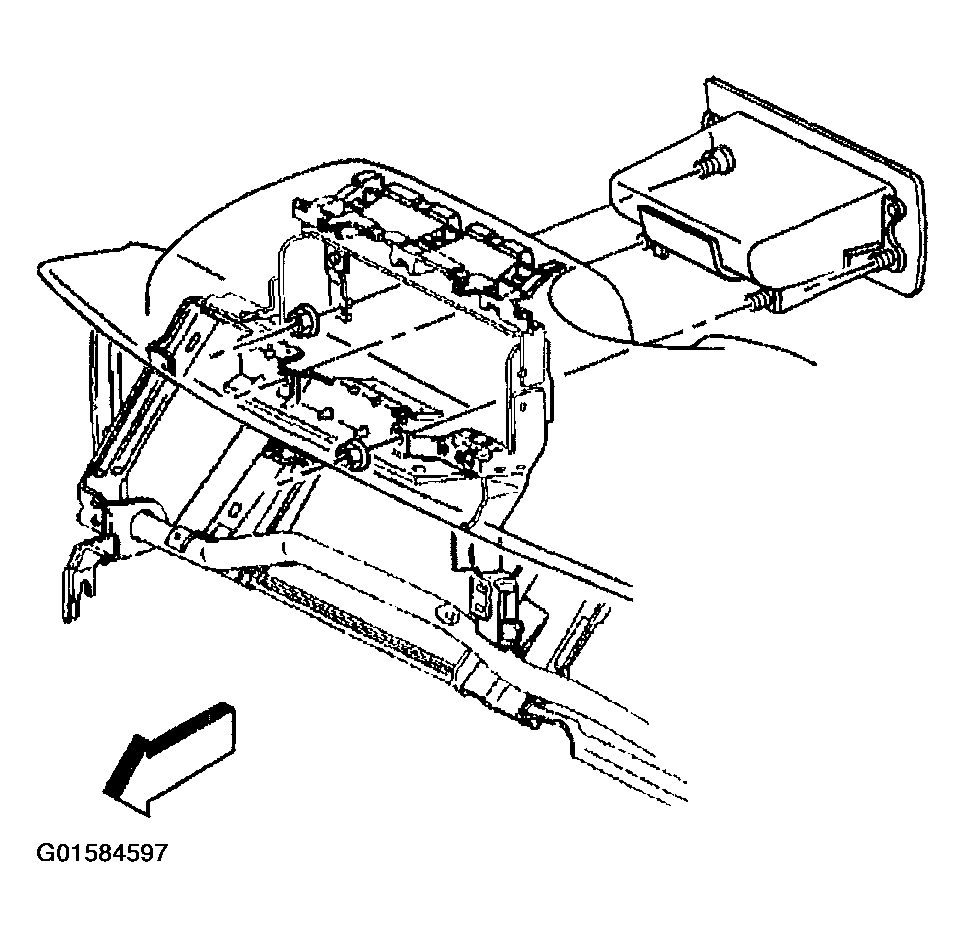

    Fig 1: Instrument Panel Compartment Assembly & Retaining Nuts
    G01584597Courtesy of GENERAL MOTORS CORP.
