Installation Procedure

  1. Connect the electrical connectors for the headlamp switch and the accessory switches.
  2. Press the bezel into the IP making sure that the clips line up with the holes in the IP.
  3. Install the steering column back into position.

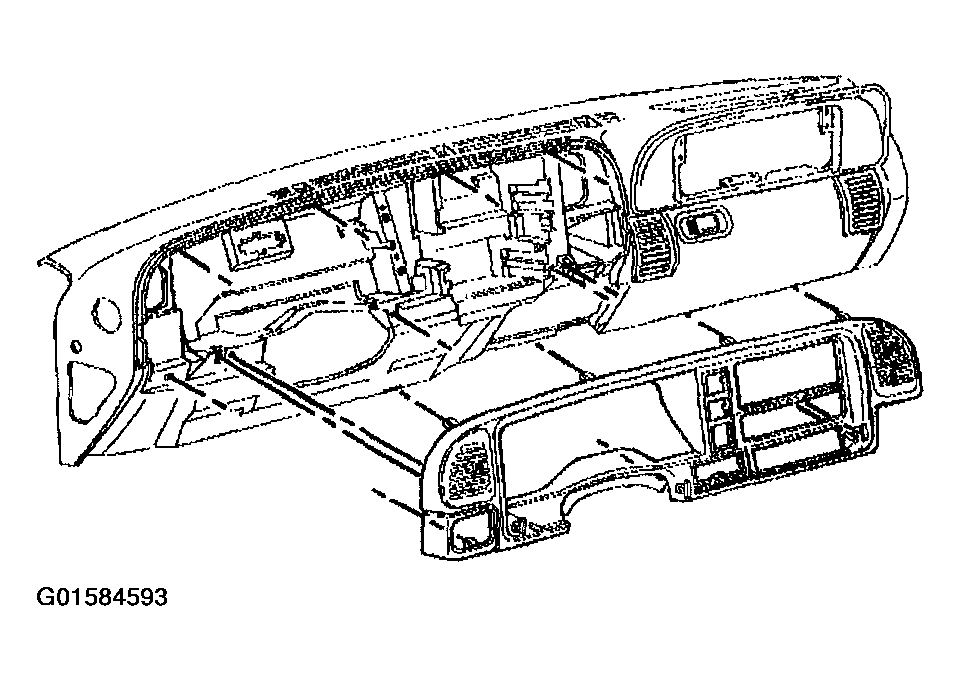

    Fig 1: Bezel & Retaining Clips
    G01584593Courtesy of GENERAL MOTORS CORP.
