Installation Procedure

  1. Connect the electrical connectors.
  2. Install the ashtray into the instrument panel.
  3. Install the ashtray retainer inserts.

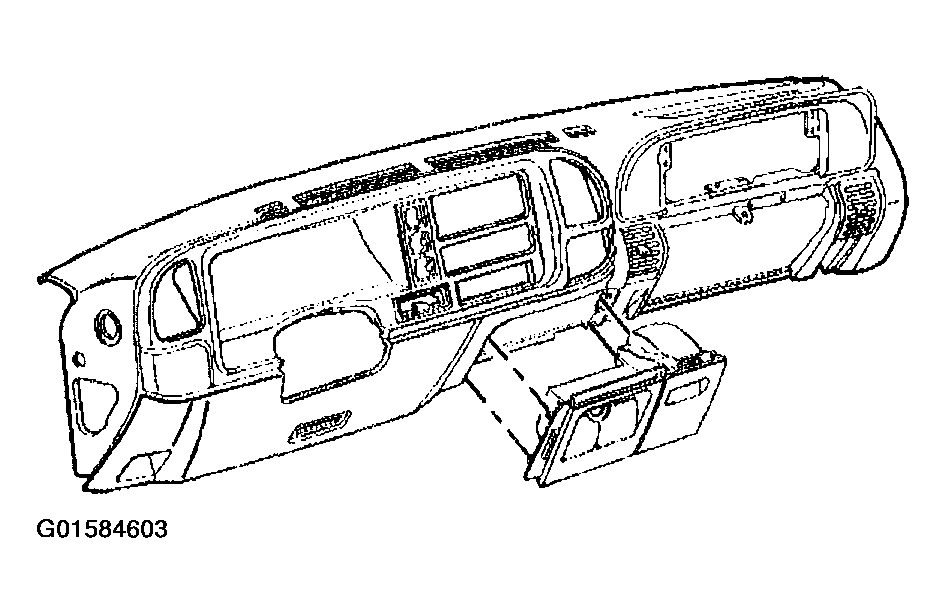

    Fig 1: Instrument Panel & Ashtray
    G01584603Courtesy of GENERAL MOTORS CORP.
