Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster bezel. Refer to Instrument Panel Cluster (IPC) Replacement .
  3. Disconnect the electrical connector.

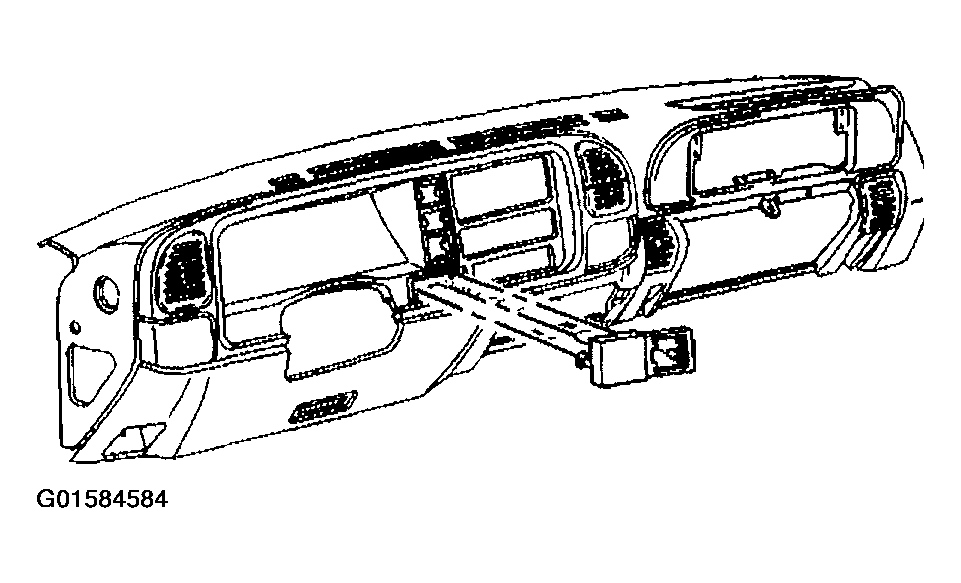

    Fig 1: Removing Bezel From IP
    G01584584Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch from the bezel.

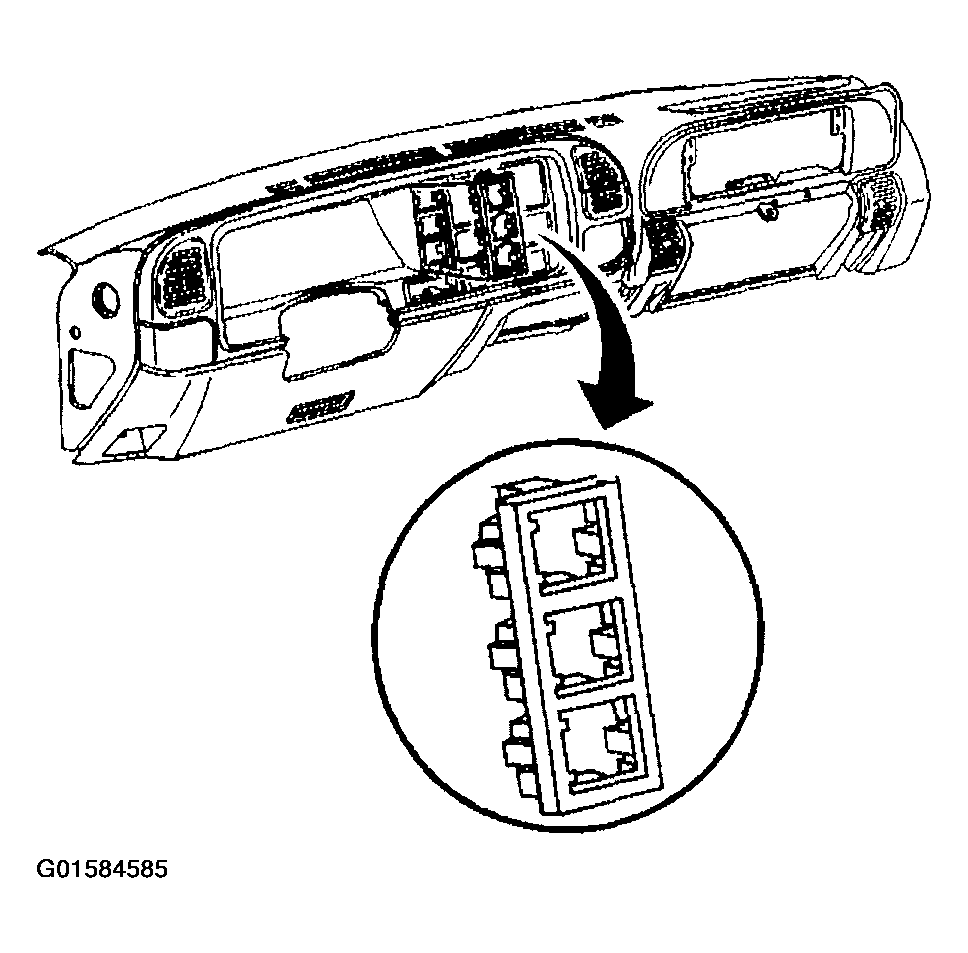

    Fig 2: Switch Bezel
    G01584585Courtesy of GENERAL MOTORS CORP.
