Installation Procedure

  1. Install the switch into the bezel.

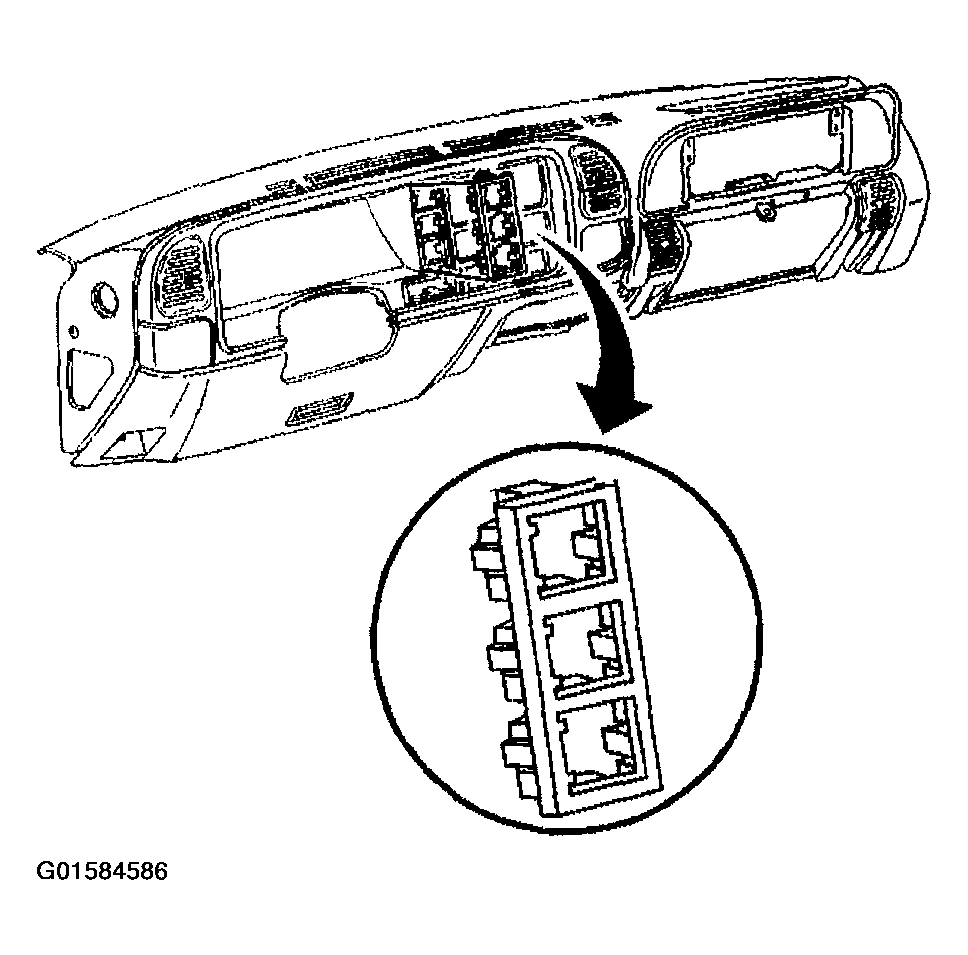

    Fig 1: Switch Bezel
    G01584586Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Install the instrument cluster bezel. Refer to Instrument Panel Cluster (IPC) Replacement .

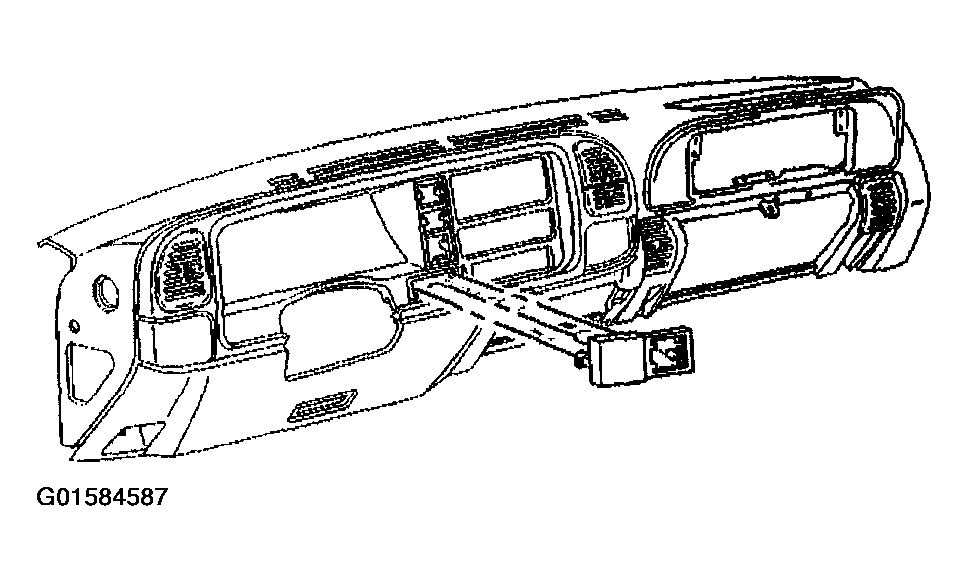

    Fig 2: Installing Bezel Into IP
    G01584587Courtesy of GENERAL MOTORS CORP.
  4. Connect the negative battery cable.
