Tachometer Inaccurate or Inoperative (L65 Diesel Engine)
Tachometer Inaccurate or Inoperative (L65 Diesel Engine)

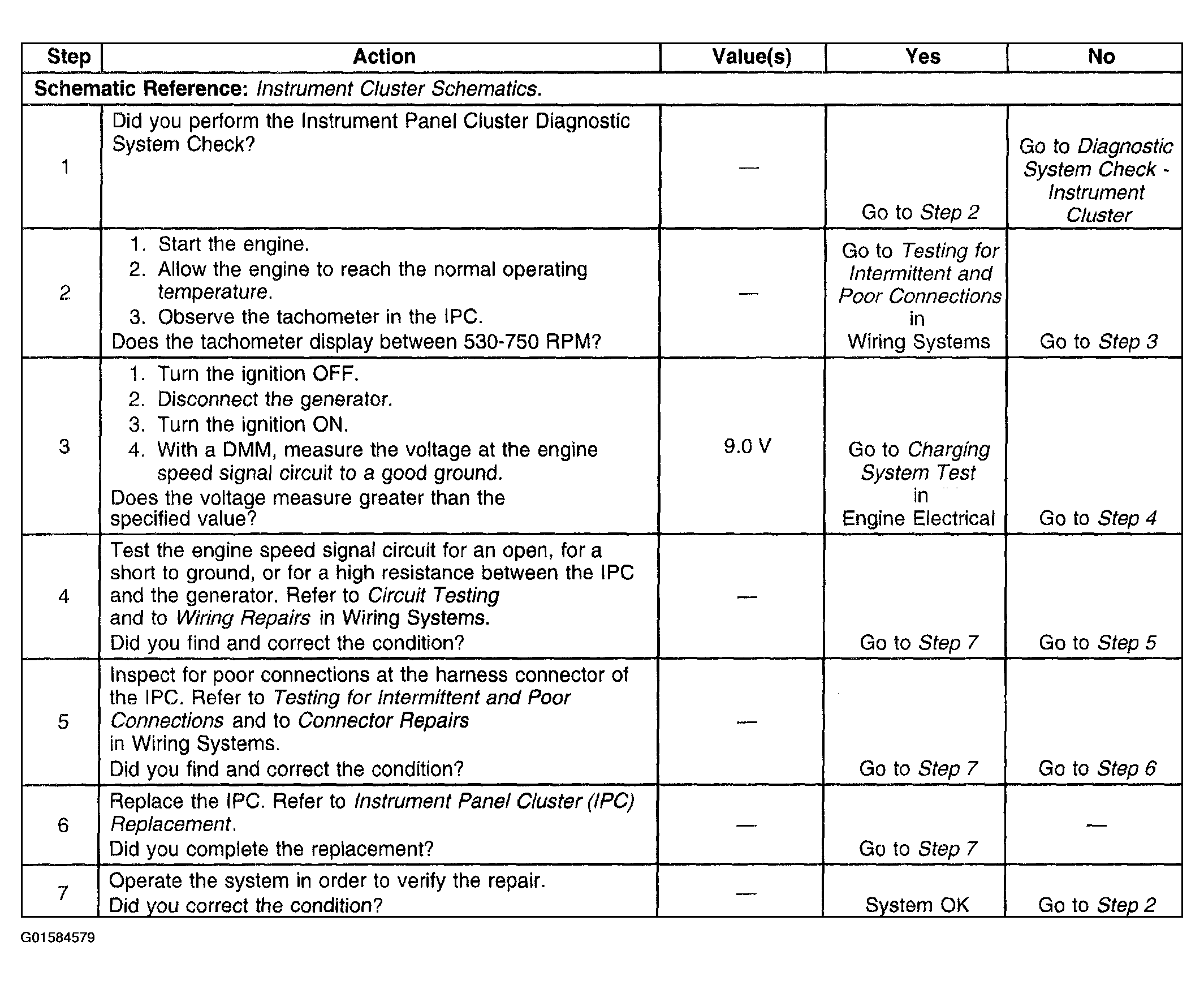

Fig 1: Tachometer Inaccurate Or Inoperative (L65 Diesel Engine)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
