Speedometer and/or Odometer Inaccurate or Inoperative (L65 Diesel Engine)
Speedometer and/or Odometer Inaccurate or Inoperative (L65 Diesel Engine)

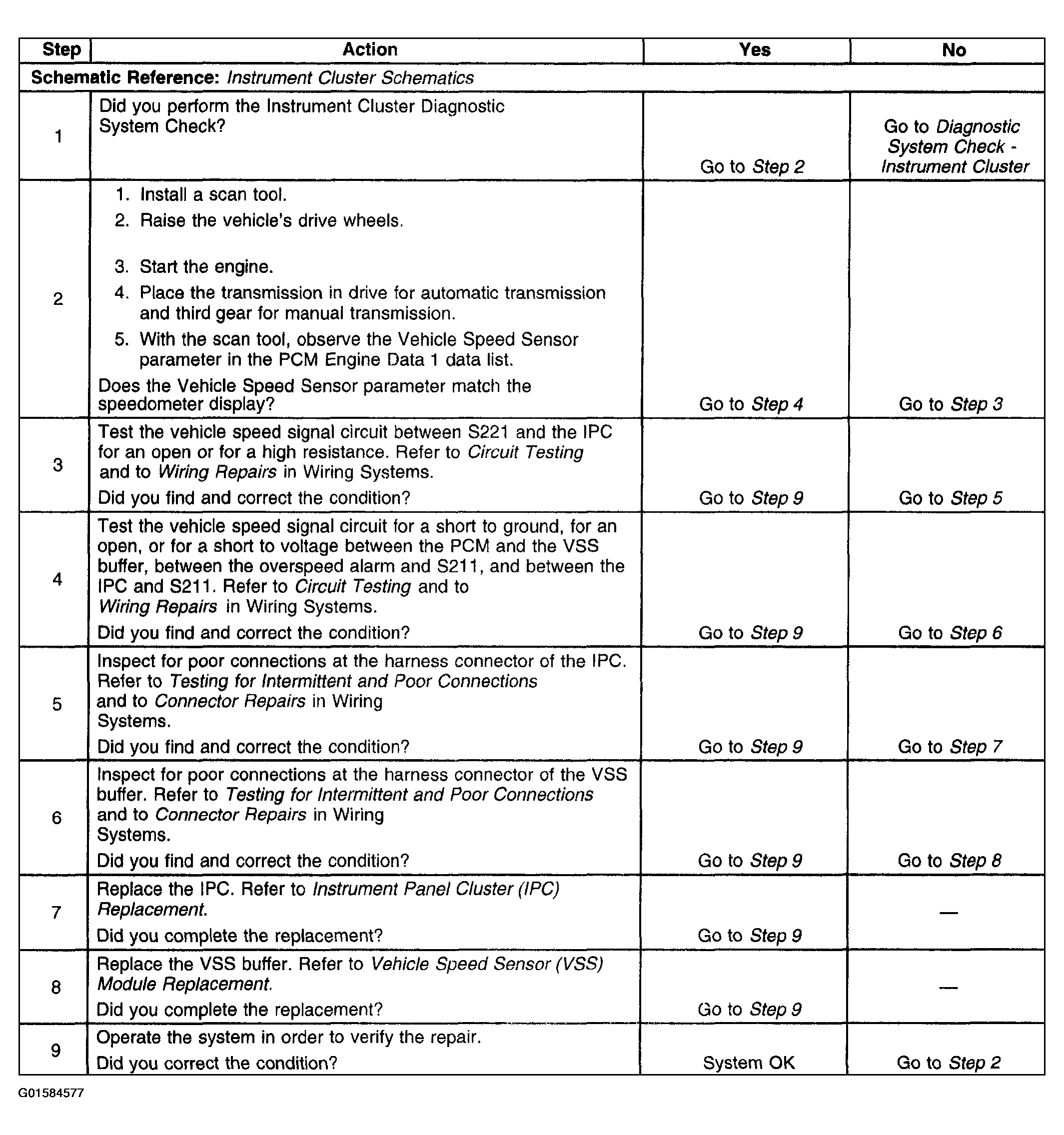

Fig 1: Speedometer &/Or Odometer Inaccurate Or Inoperative (L65 Diesel Engine)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
