Engine Oil Pressure Gage Inaccurate or Inoperative

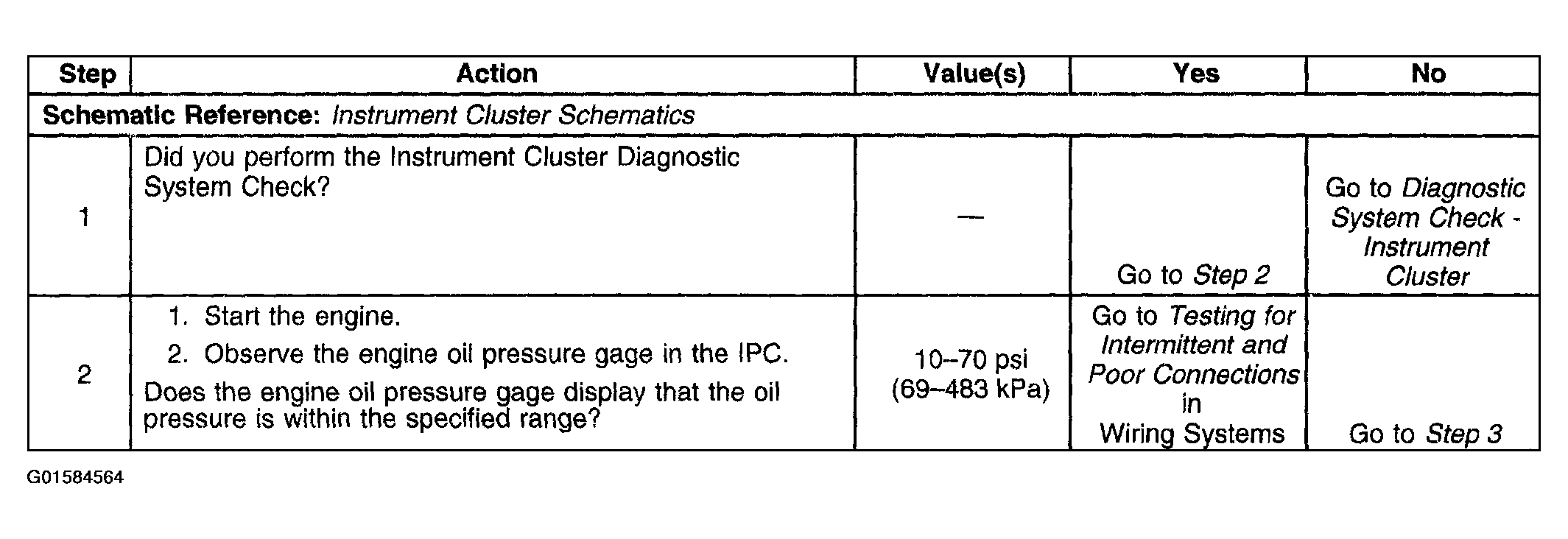

Fig 1: Engine Oil Pressure Gage Inaccurate Or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

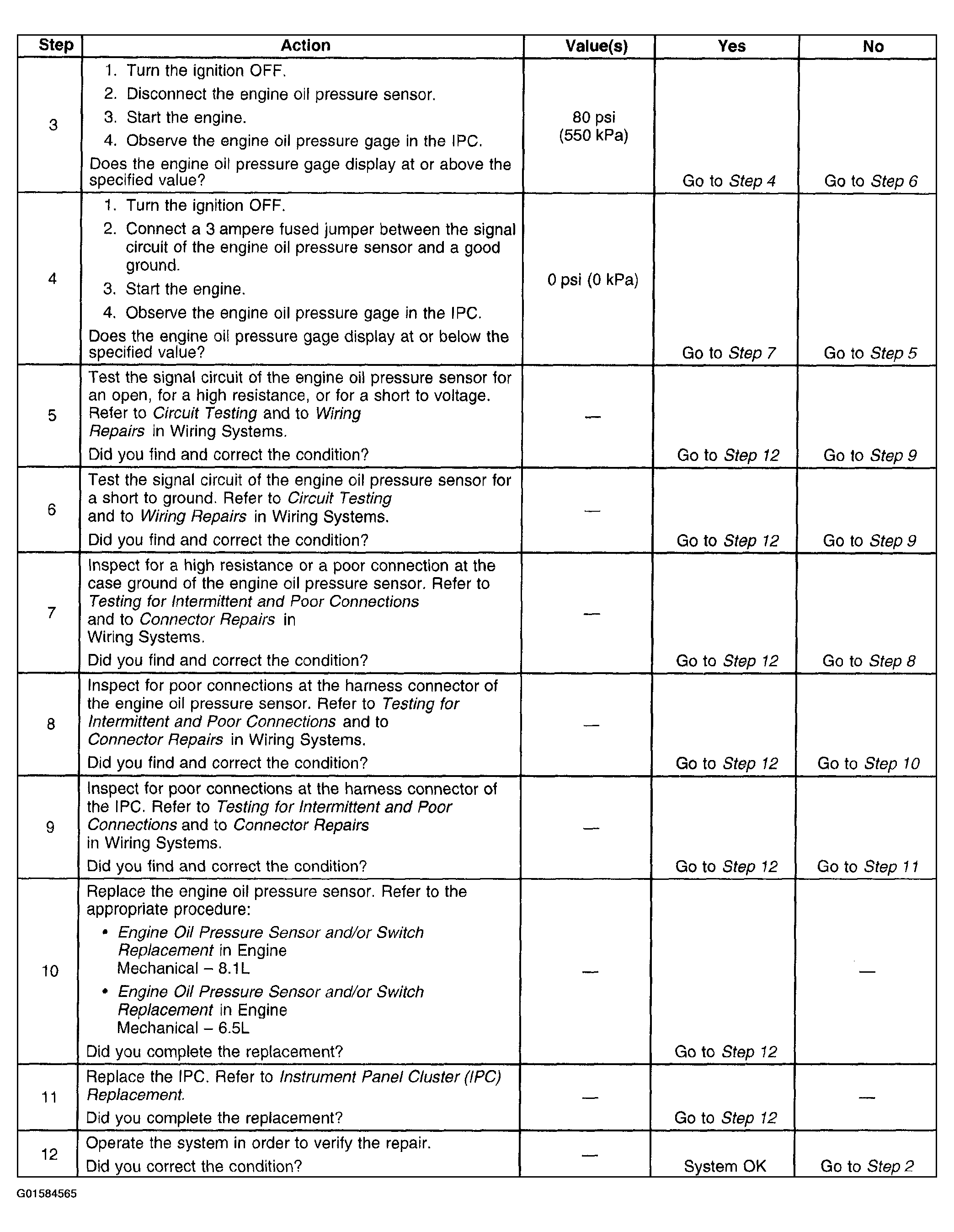

Fig 2: Engine Oil Pressure Gage Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
