Engine Coolant Temperature Gage Inaccurate or Inoperative

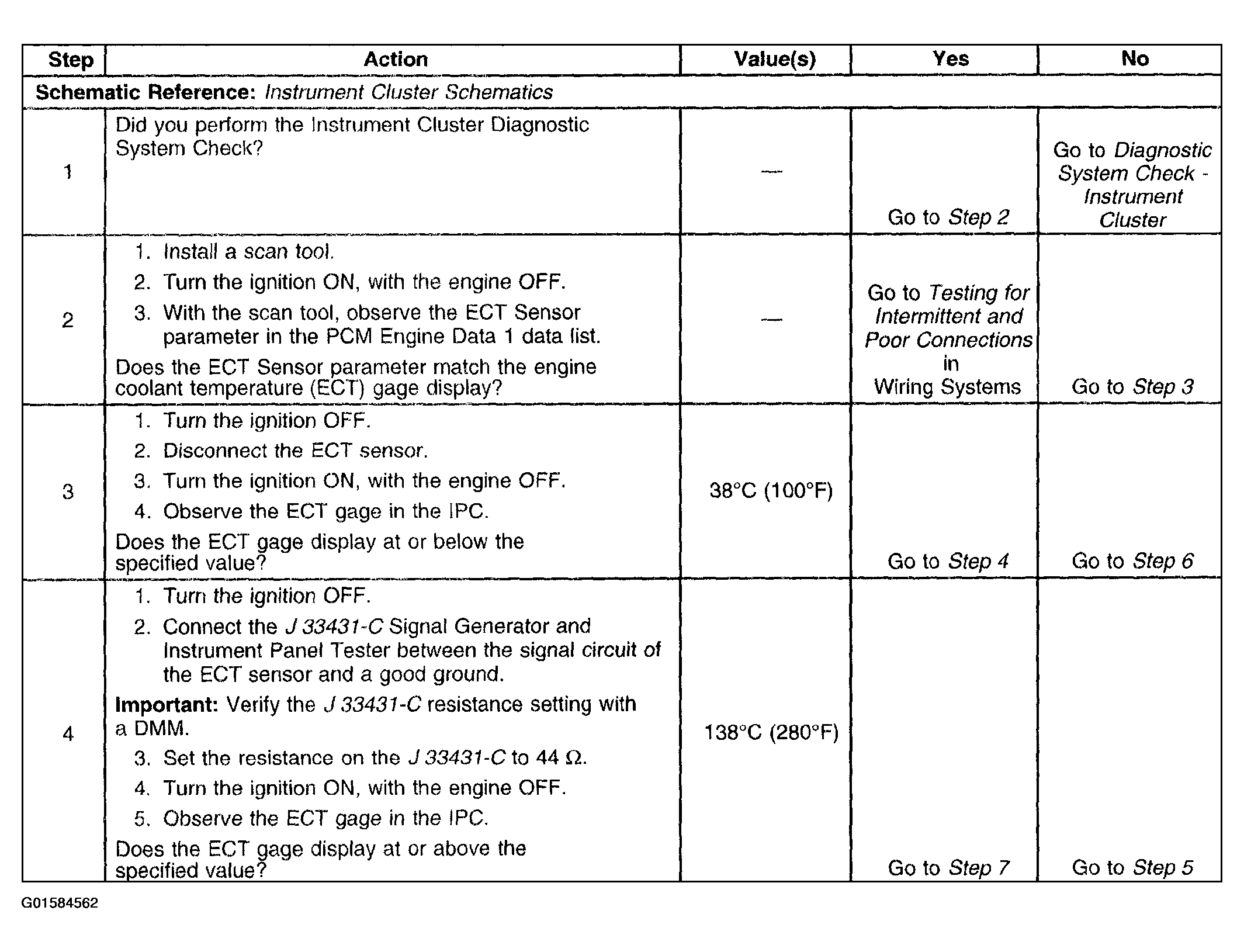

Fig 1: Engine Coolant Temperature Gage Inaccurate Or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

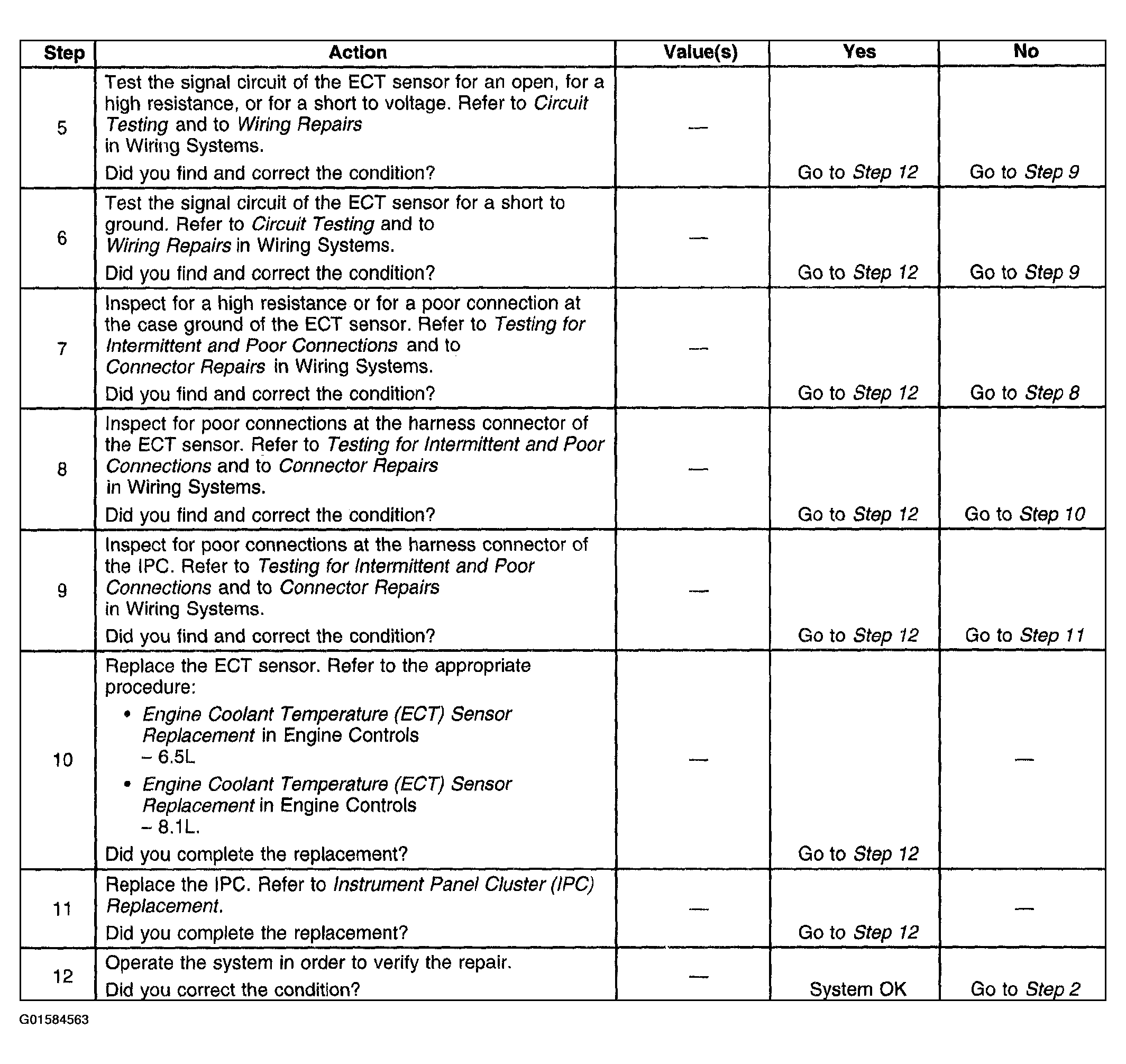

Fig 2: Engine Coolant Temperature Gage Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
