Test Description

The number below refers to the step number on the diagnostic table.

1. 3. Tests for the proper operation of the circuit in the high voltage range.

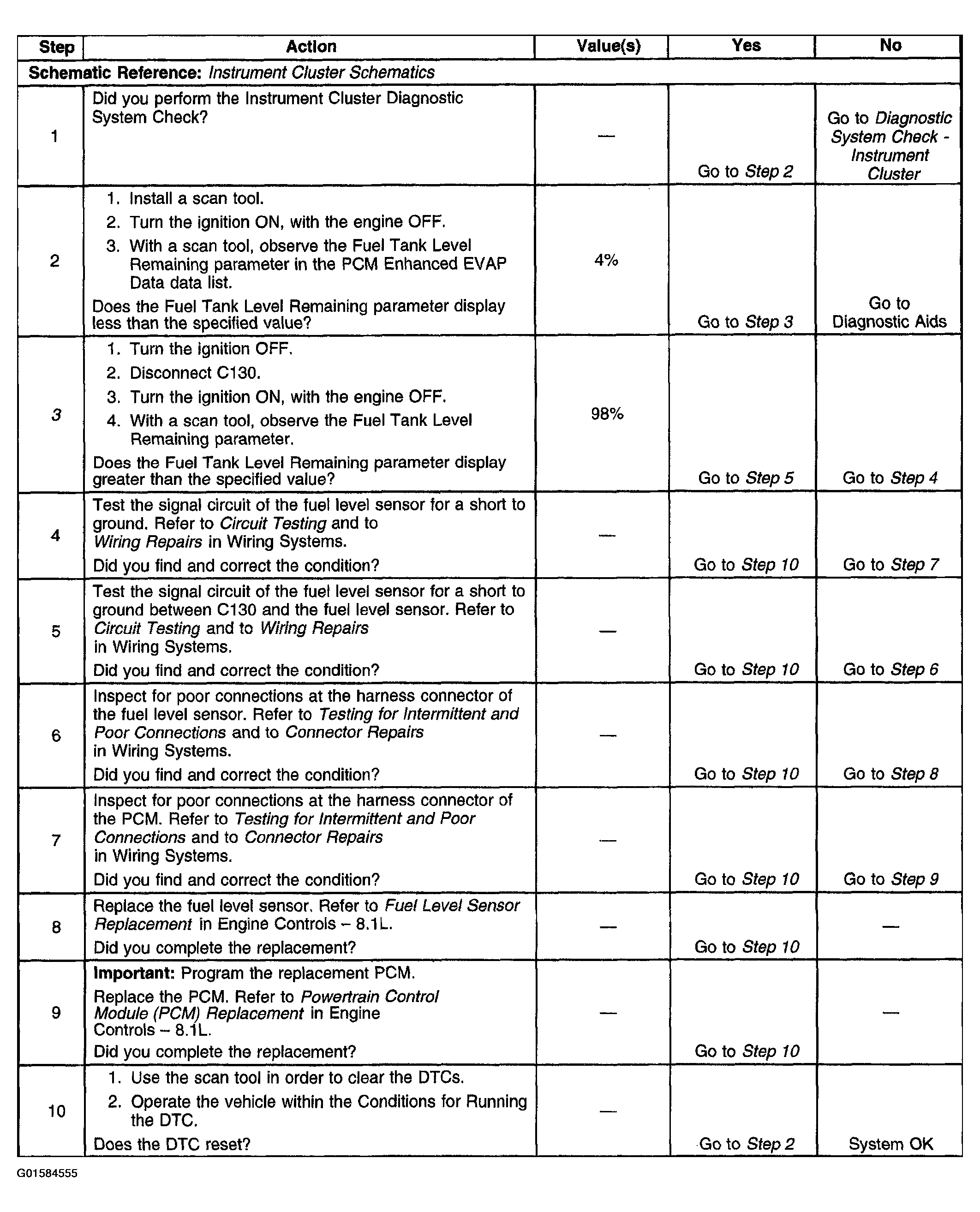

Fig 1: DTC P0462

Courtesy of GENERAL MOTORS CORP.
