LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2002
>>
C3500 HD 6.5 F, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel, Gages, And Console
>>
Diagnostic Information and Procedures
>>
Chime Inoperative
Chime Inoperative

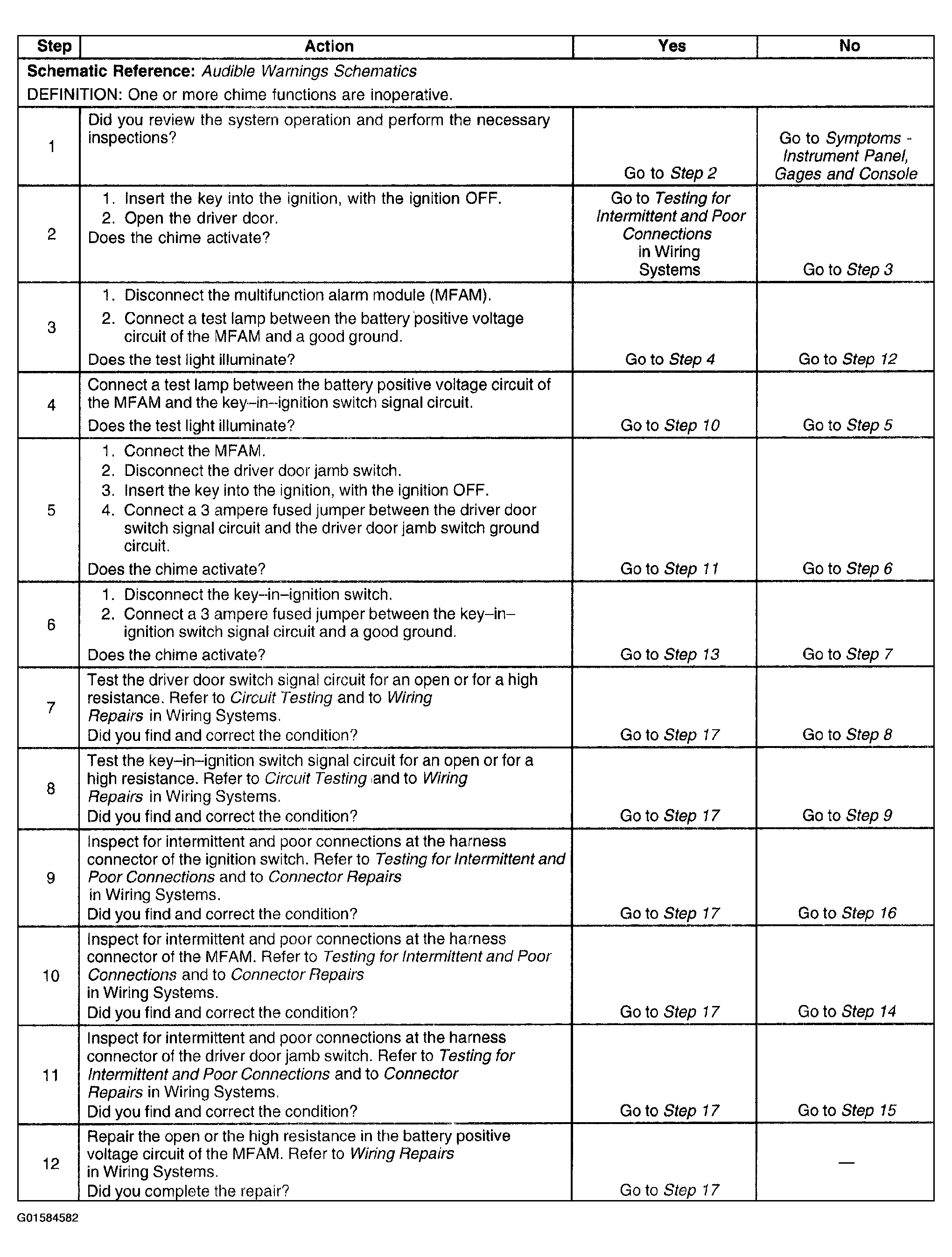

Fig 1: Chime Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

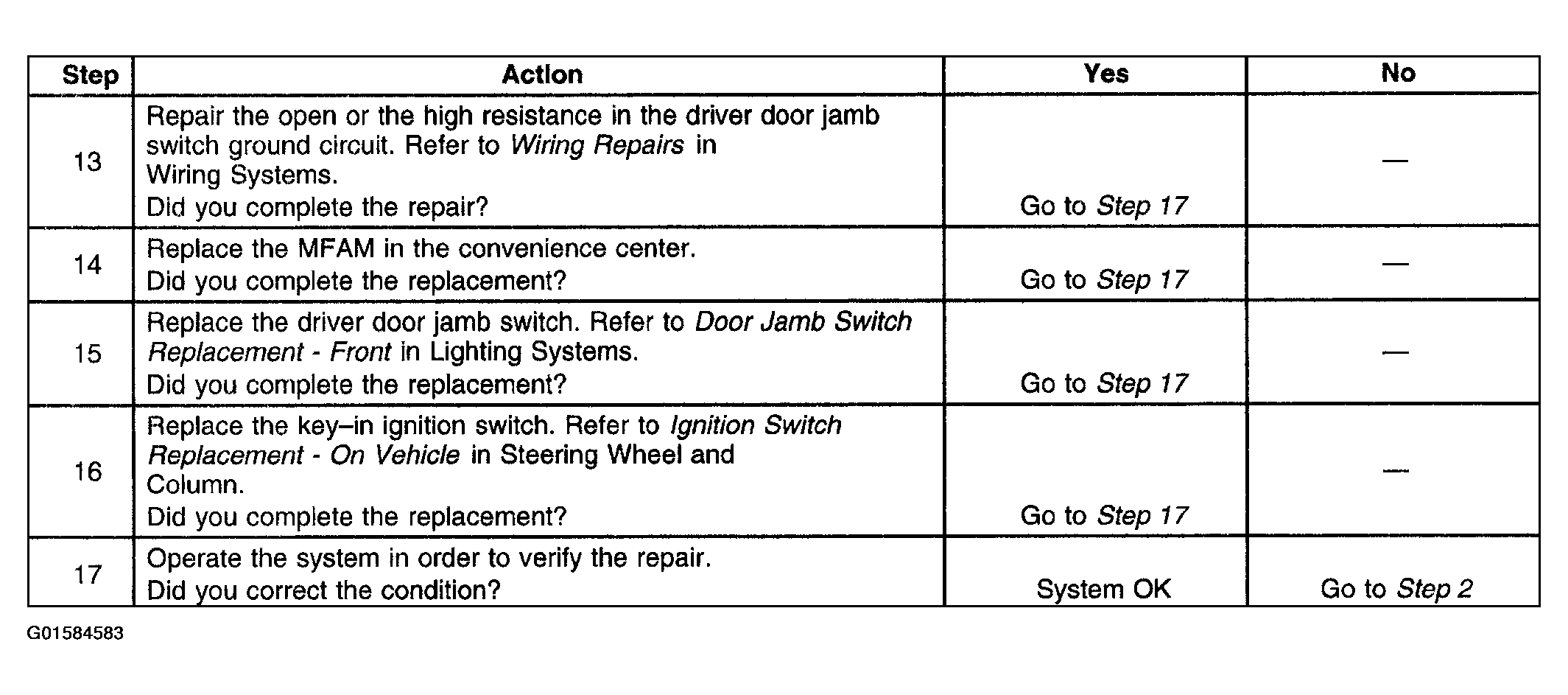

Fig 2: Chime Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
