Instrument Panel, Gages, and Console Connector End Views

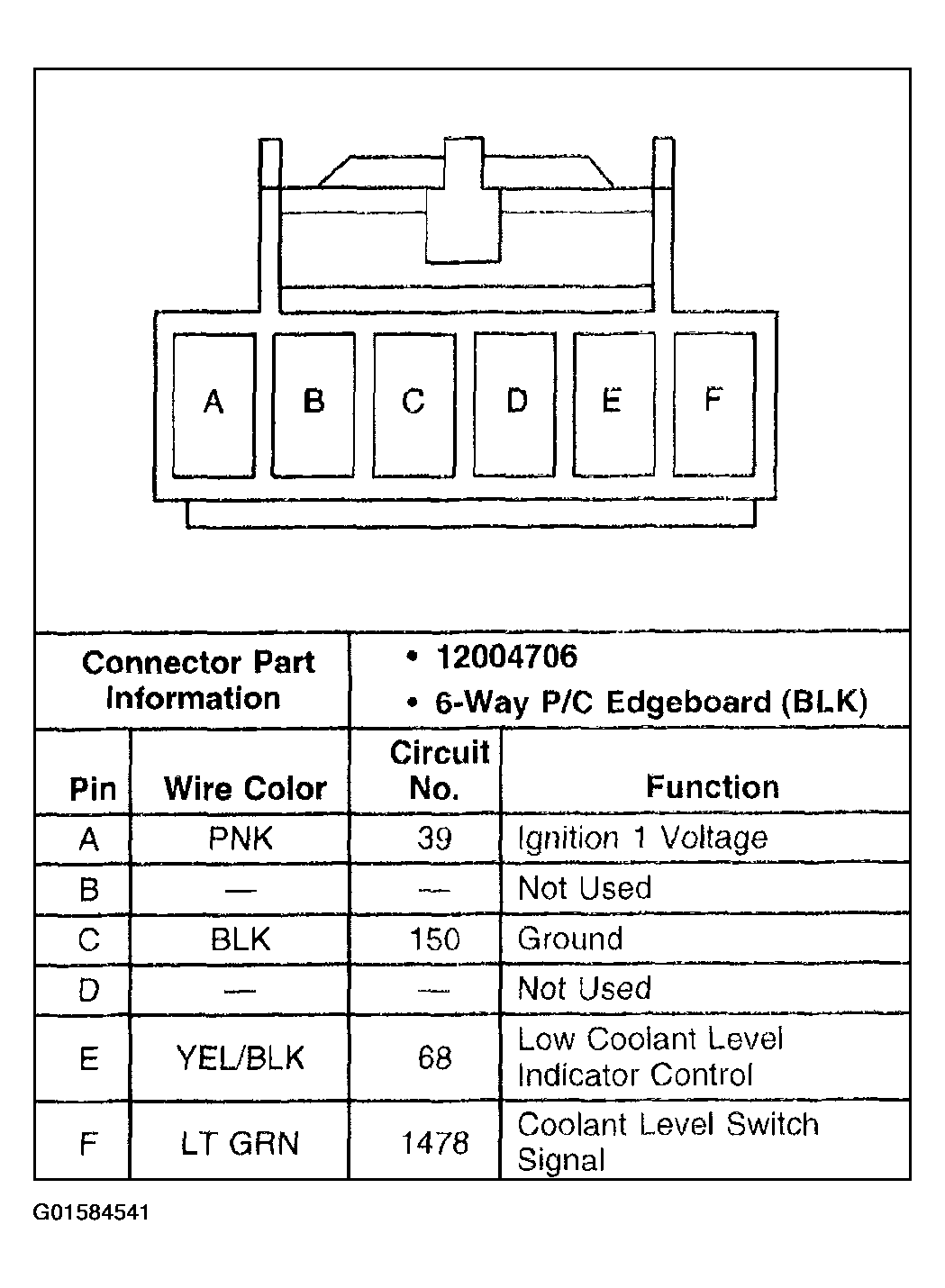

Fig 1: Coolant Level Module - L65

Courtesy of GENERAL MOTORS CORP.

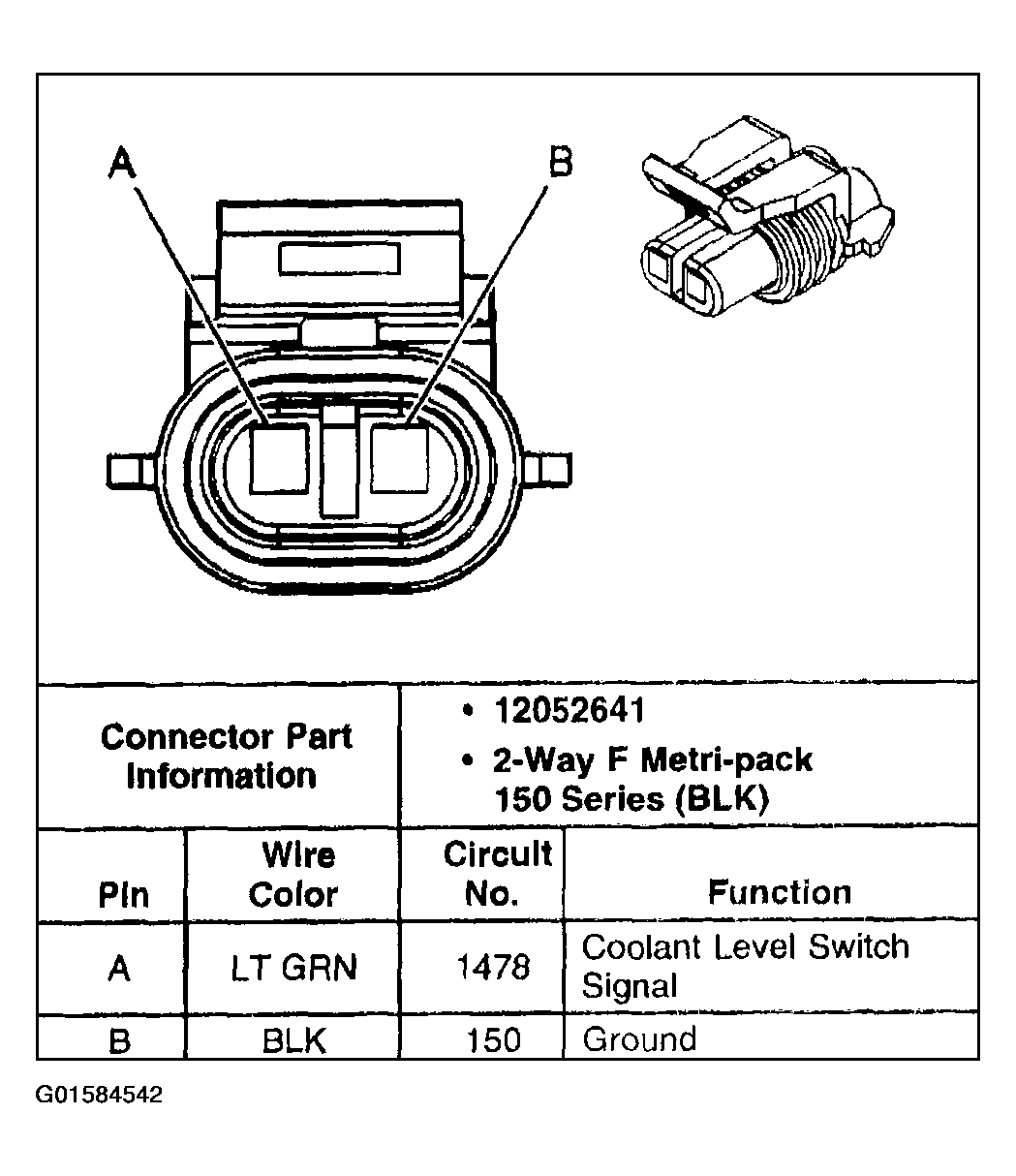

Fig 2: Coolant Level Switch - L65

Courtesy of GENERAL MOTORS CORP.

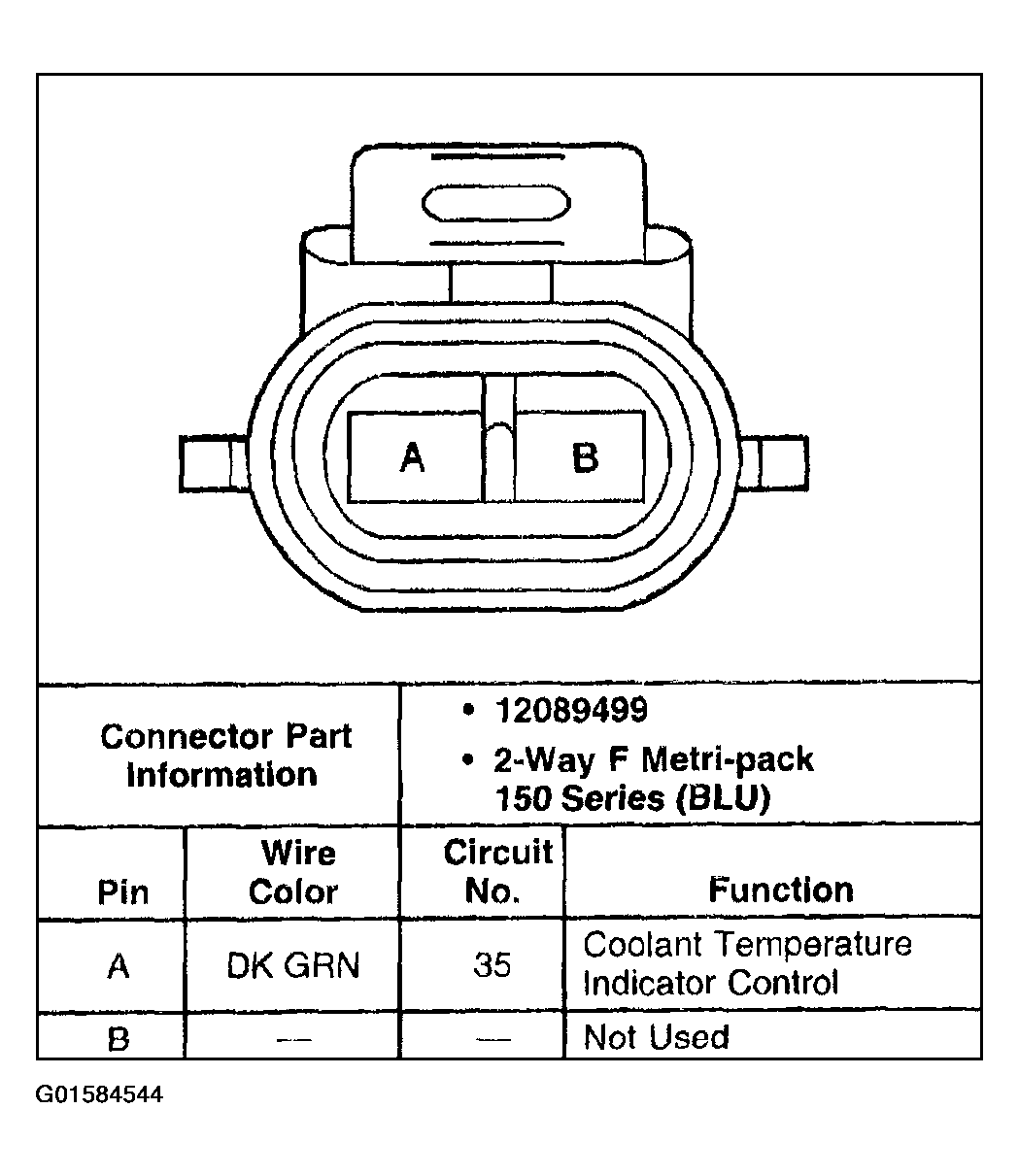

Fig 3: Engine Coolant Temperature (ECT) Gage Sensor - L18

Courtesy of GENERAL MOTORS CORP.

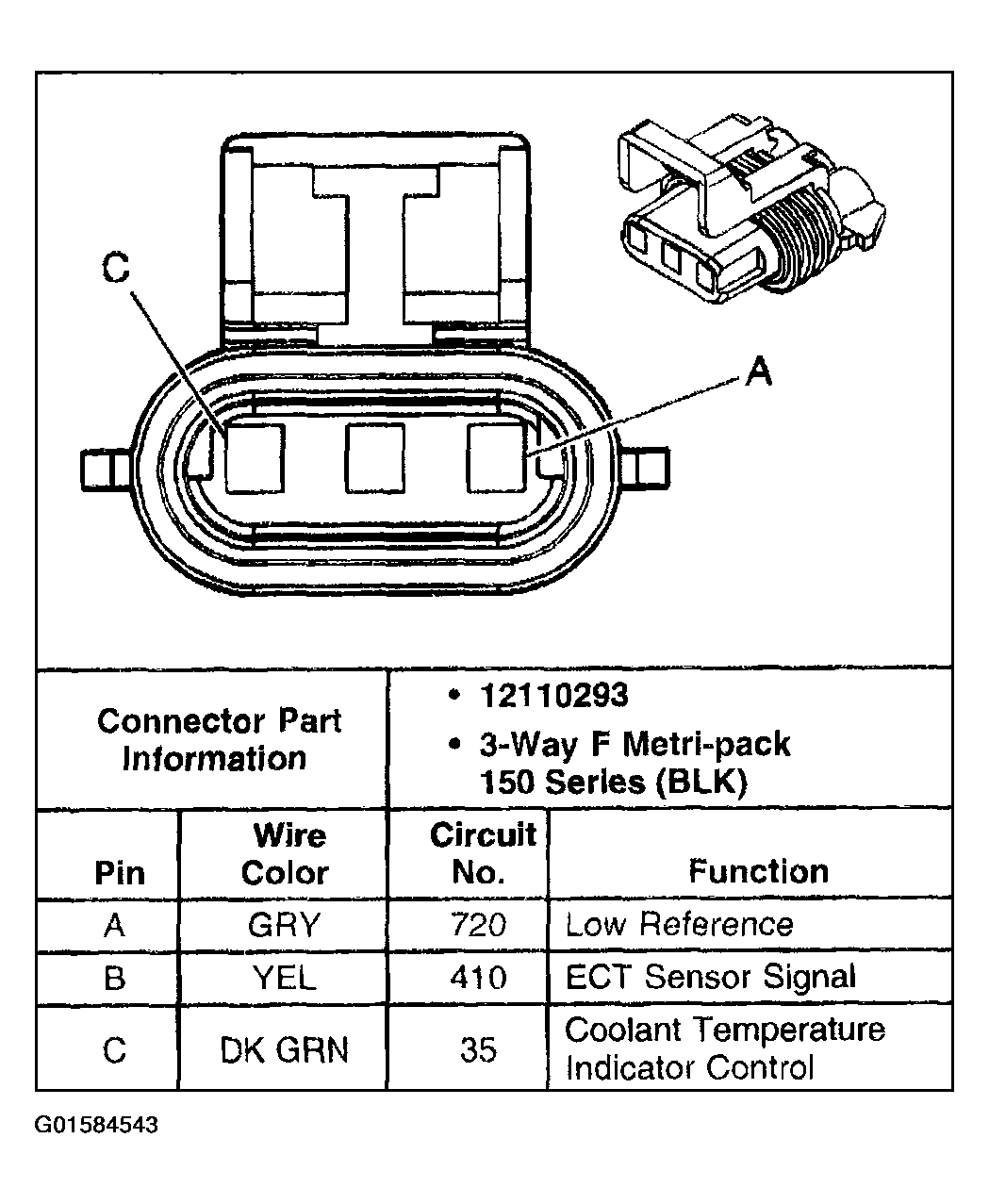

Fig 4: Engine Coolant Temperature (ECT) Gage Sensor - L65

Courtesy of GENERAL MOTORS CORP.

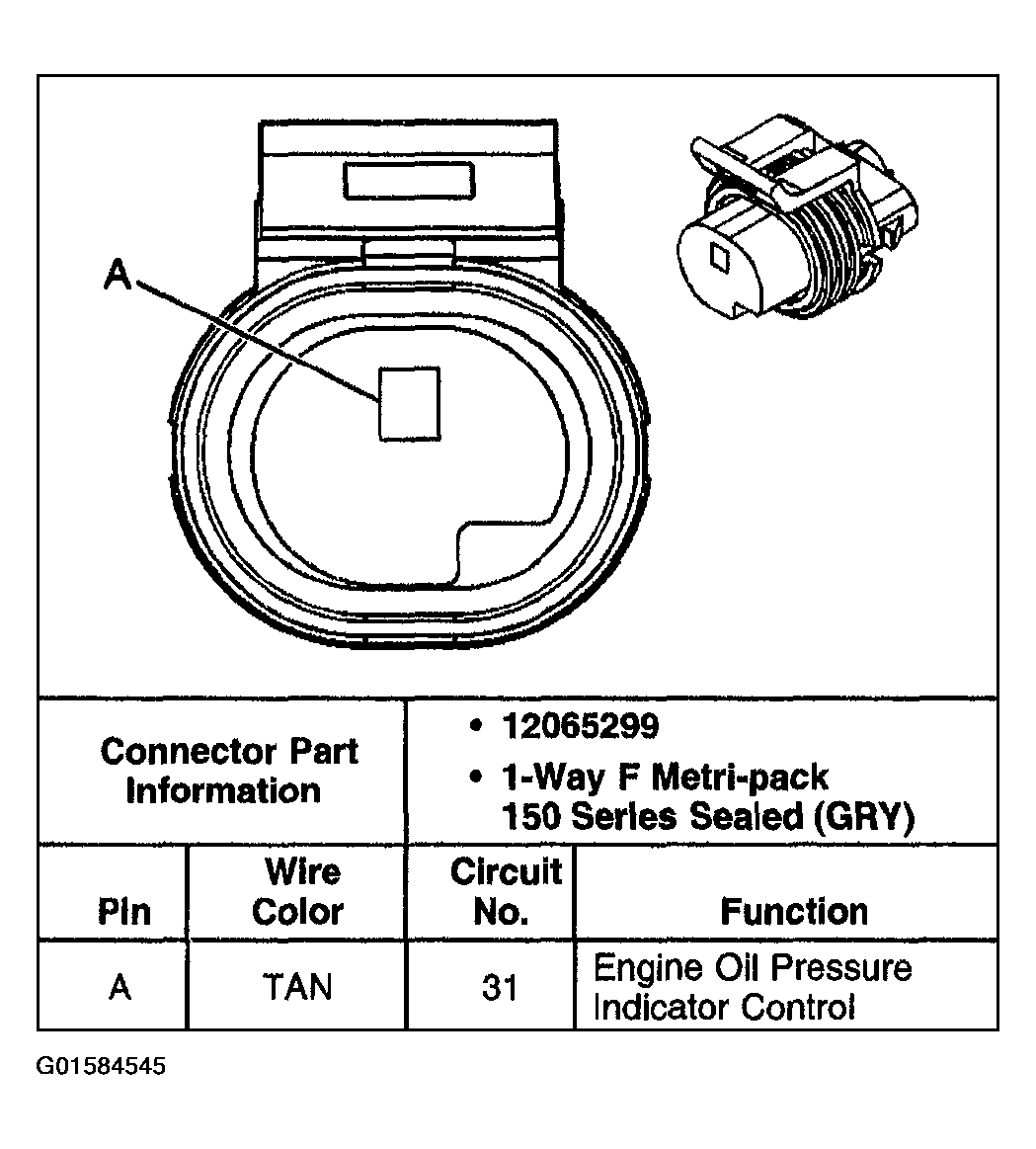

Fig 5: Engine Oil Pressure (EOP) Sensor - L18

Courtesy of GENERAL MOTORS CORP.

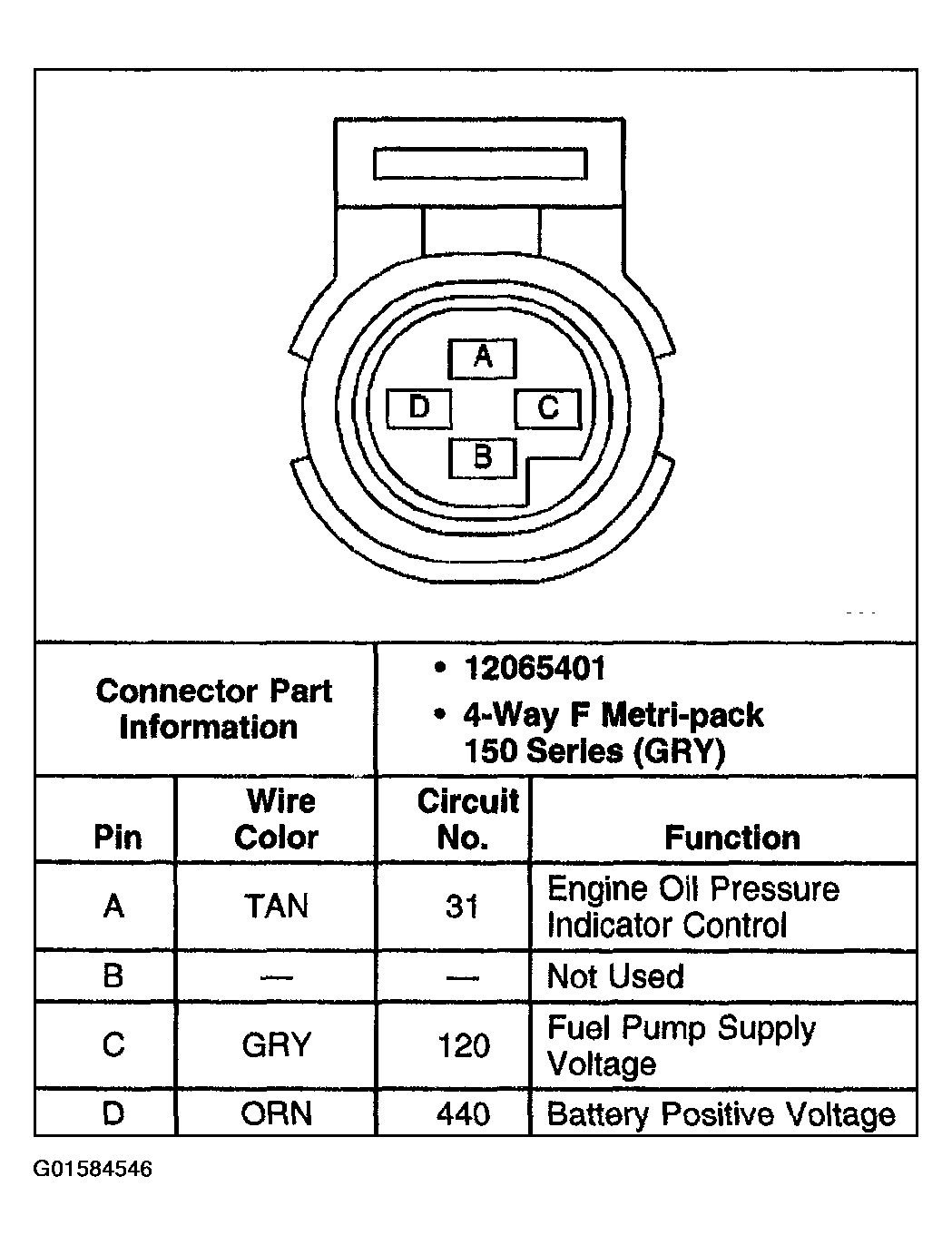

Fig 6: Engine Oil Pressure (EOP) Sensor & Fuel Pump Switch - L65

Courtesy of GENERAL MOTORS CORP.

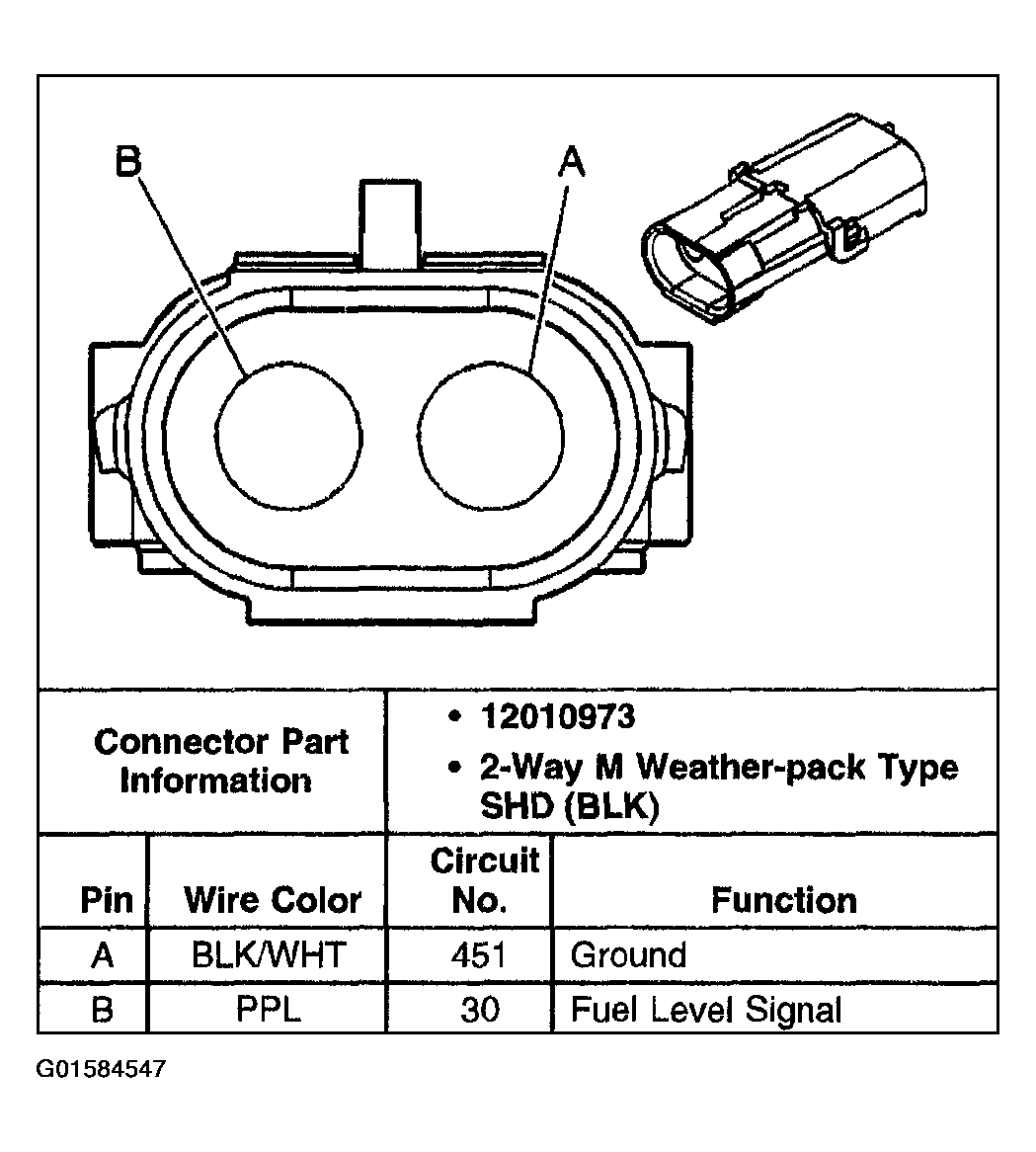

Fig 7: Fuel Level Sensor - L65

Courtesy of GENERAL MOTORS CORP.

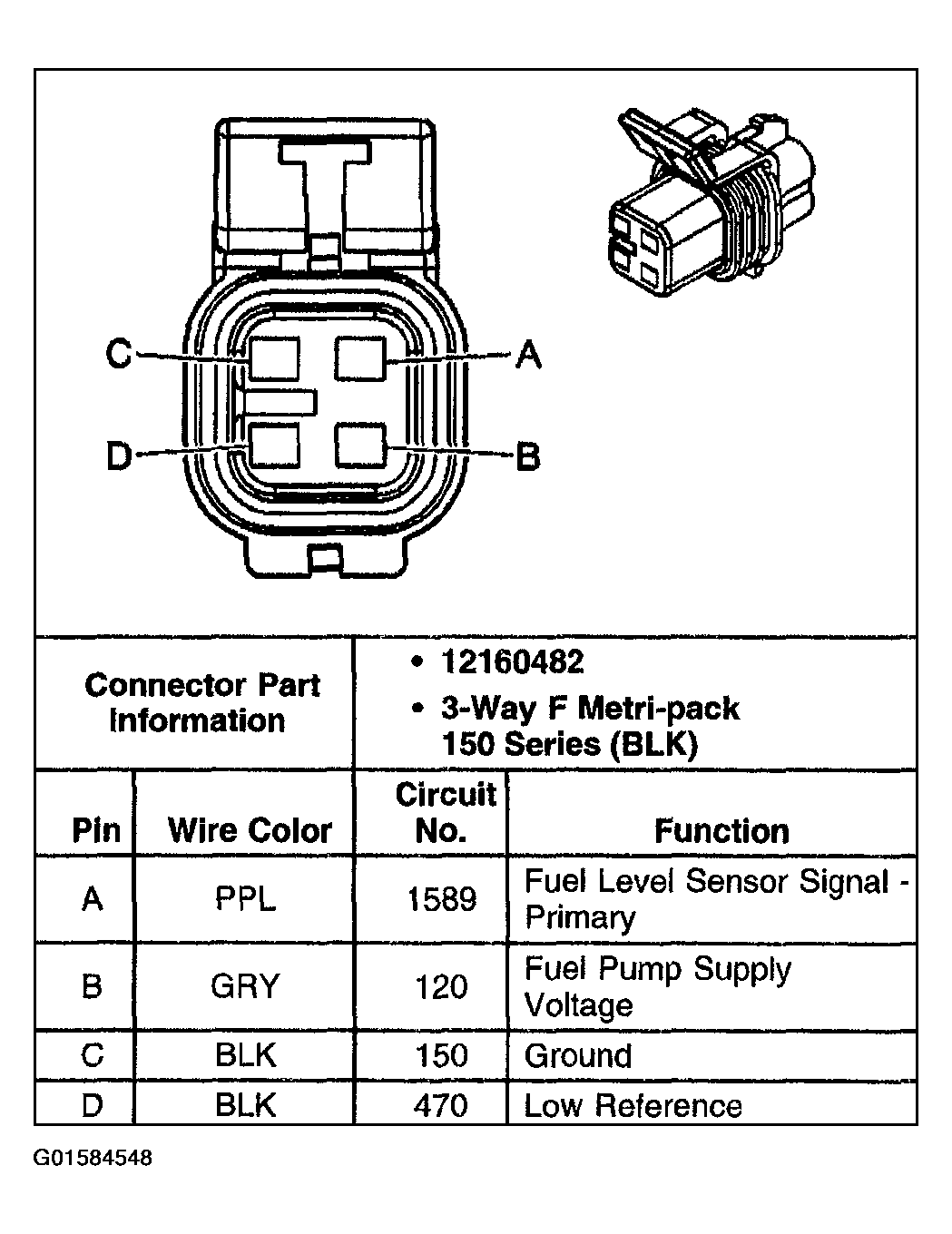

Fig 8: Fuel Pump and Sender - L18

Courtesy of GENERAL MOTORS CORP.

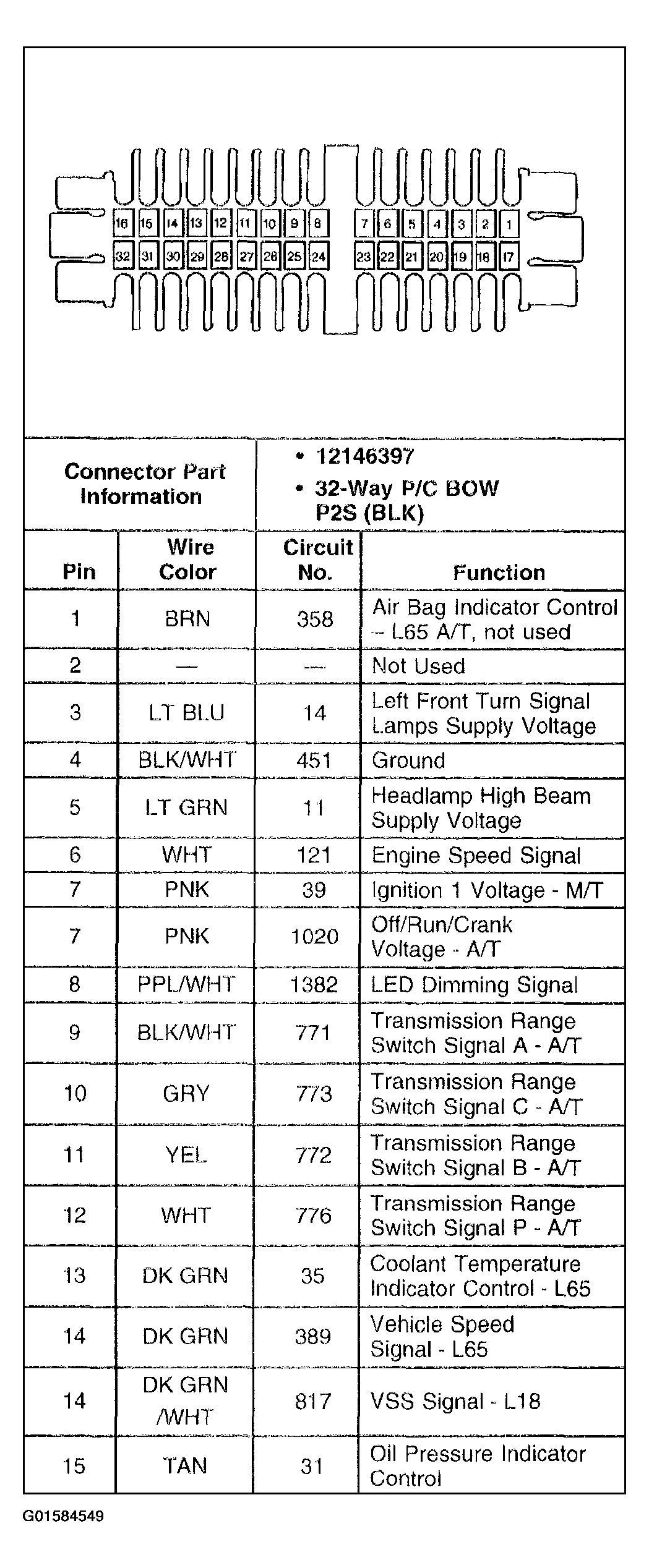

Fig 9: Instrument Panel Cluster (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

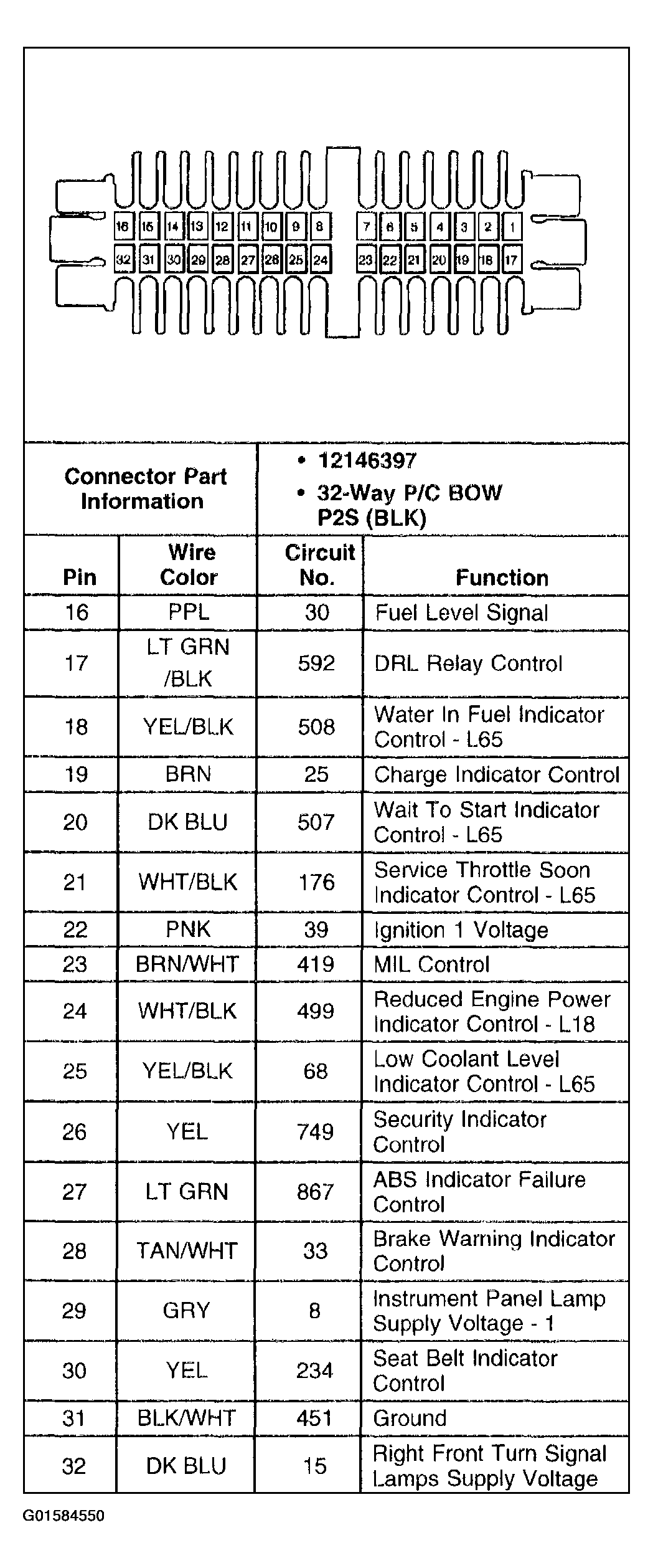

Fig 10: Instrument Panel Cluster (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
