Instrument Panel, Gages, and Console Component Views

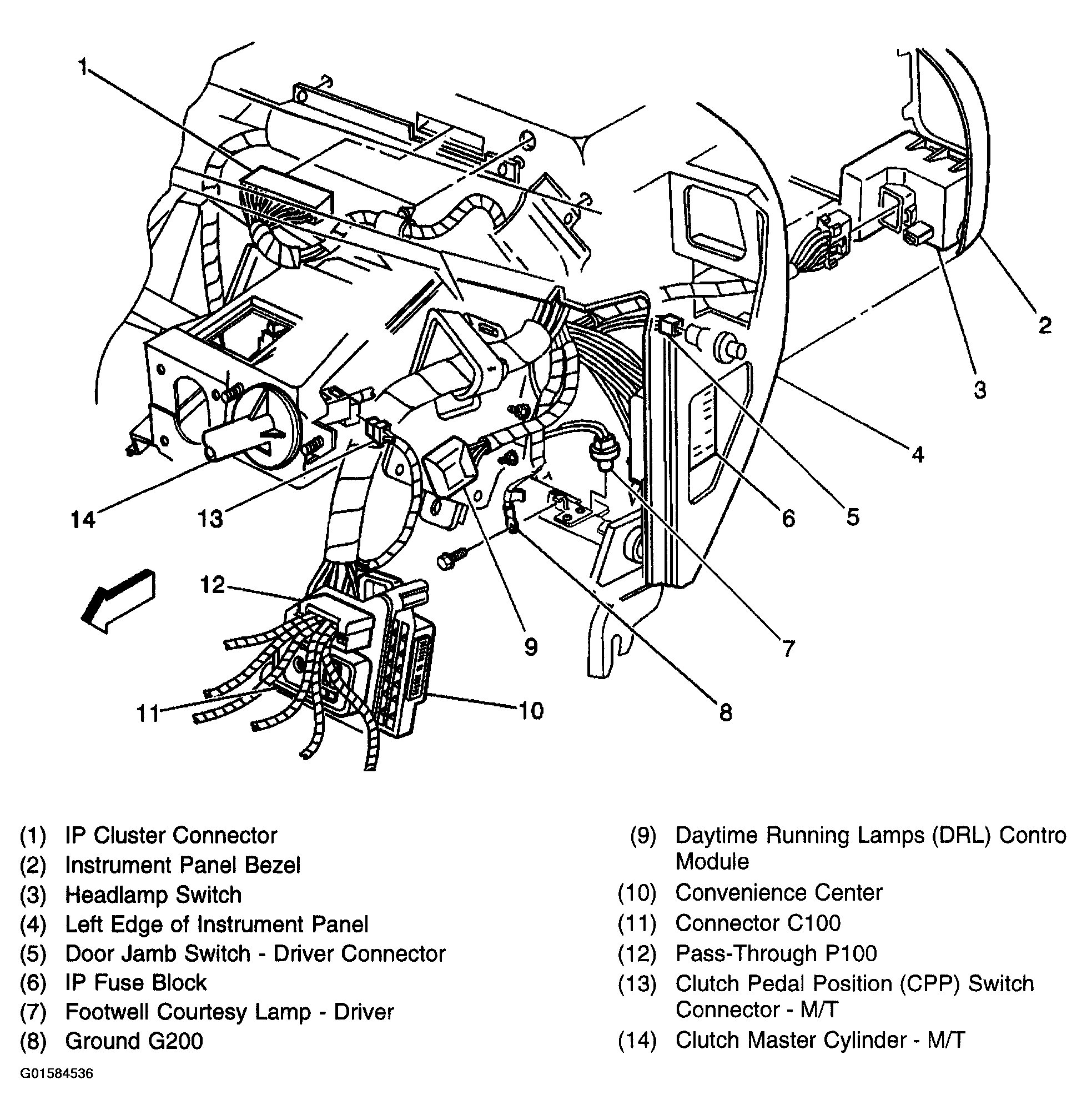

Fig 1: C100, P100, G200, CPP Switch & Lighting Components - Left Side Of IP

Courtesy of GENERAL MOTORS CORP.

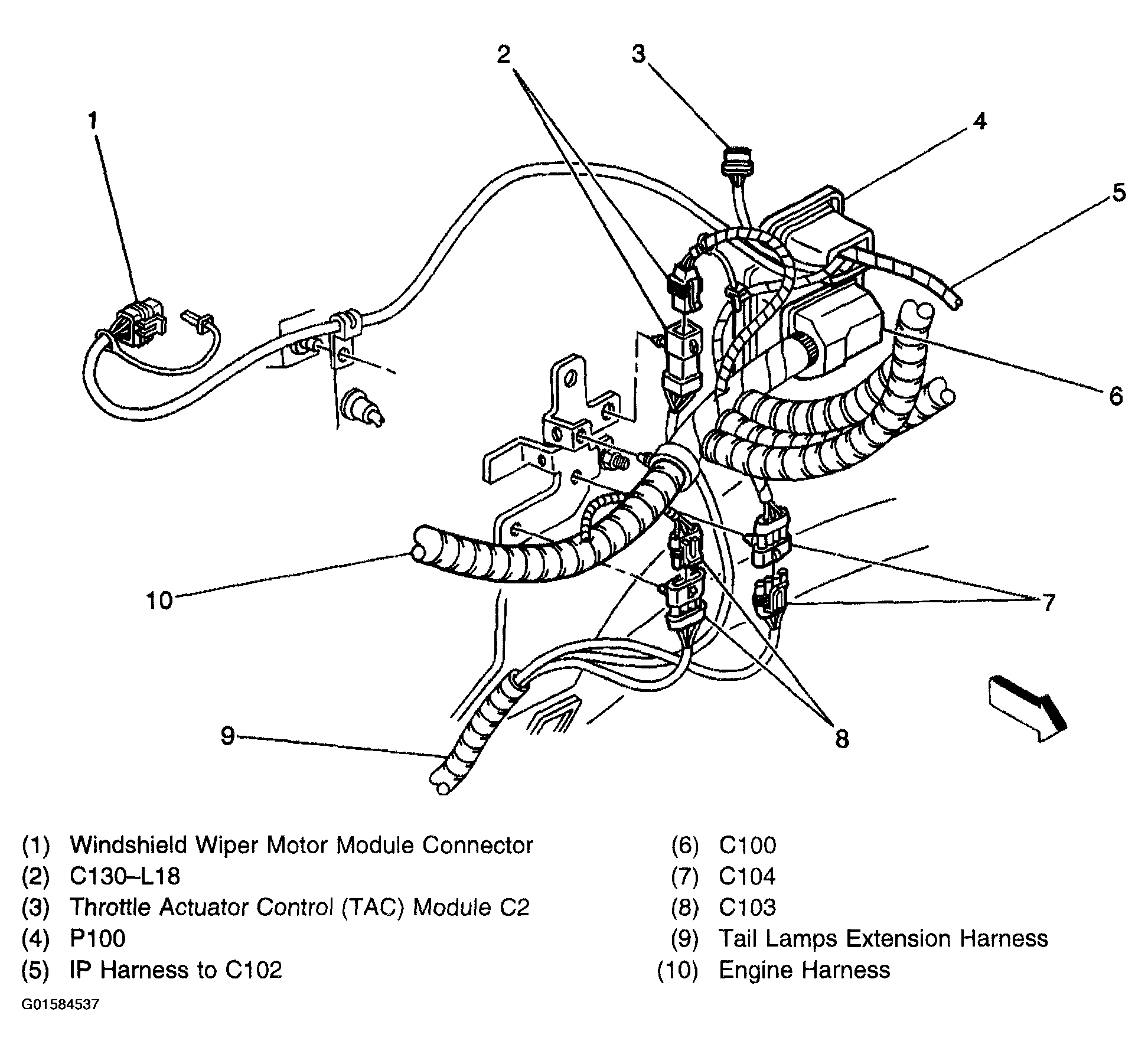

Fig 2: C100, C103, C104, C130, P100, TAC C2 & WSW Connector

Courtesy of GENERAL MOTORS CORP.

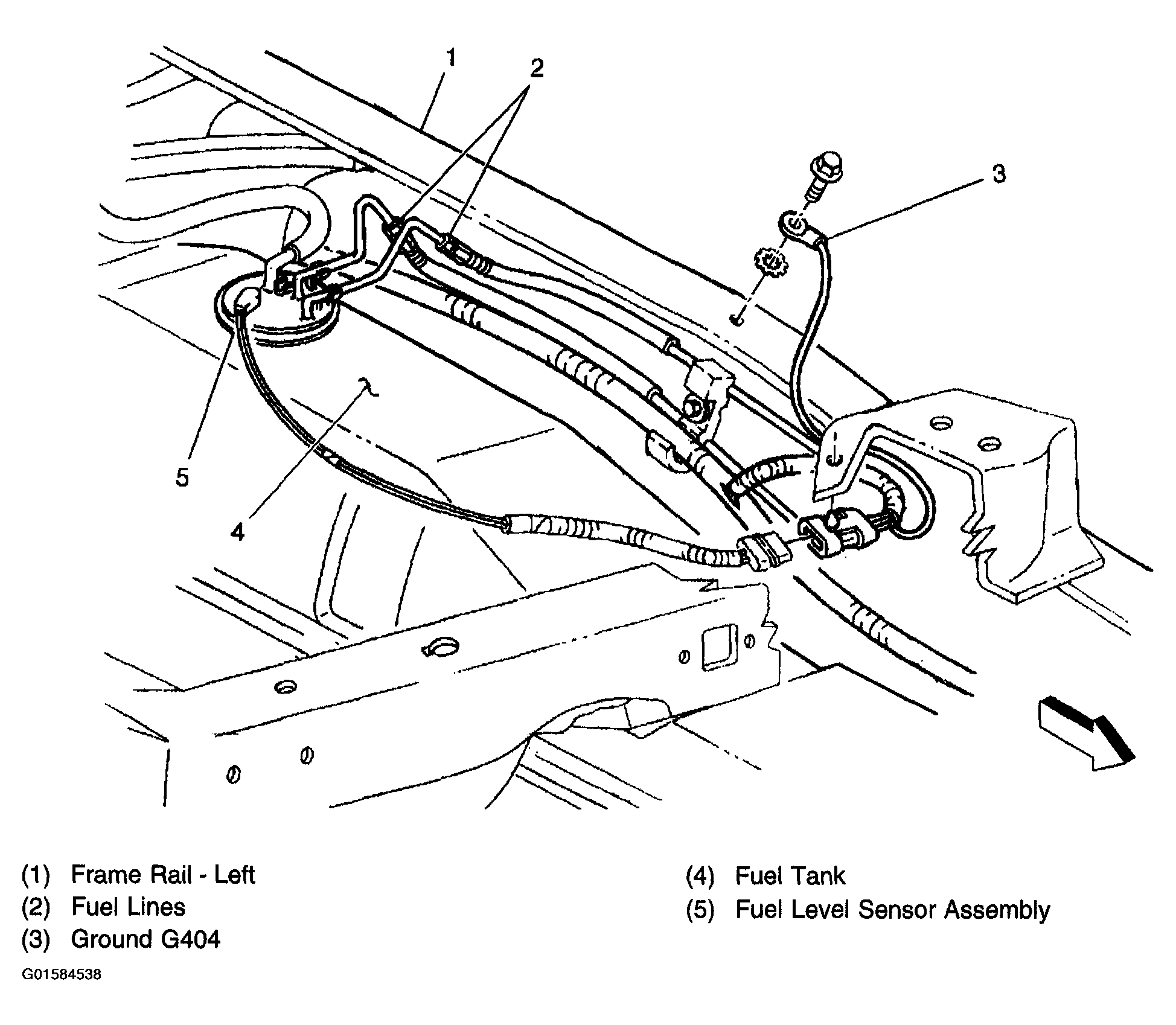

Fig 3: G404, Fuel Tank & Level Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

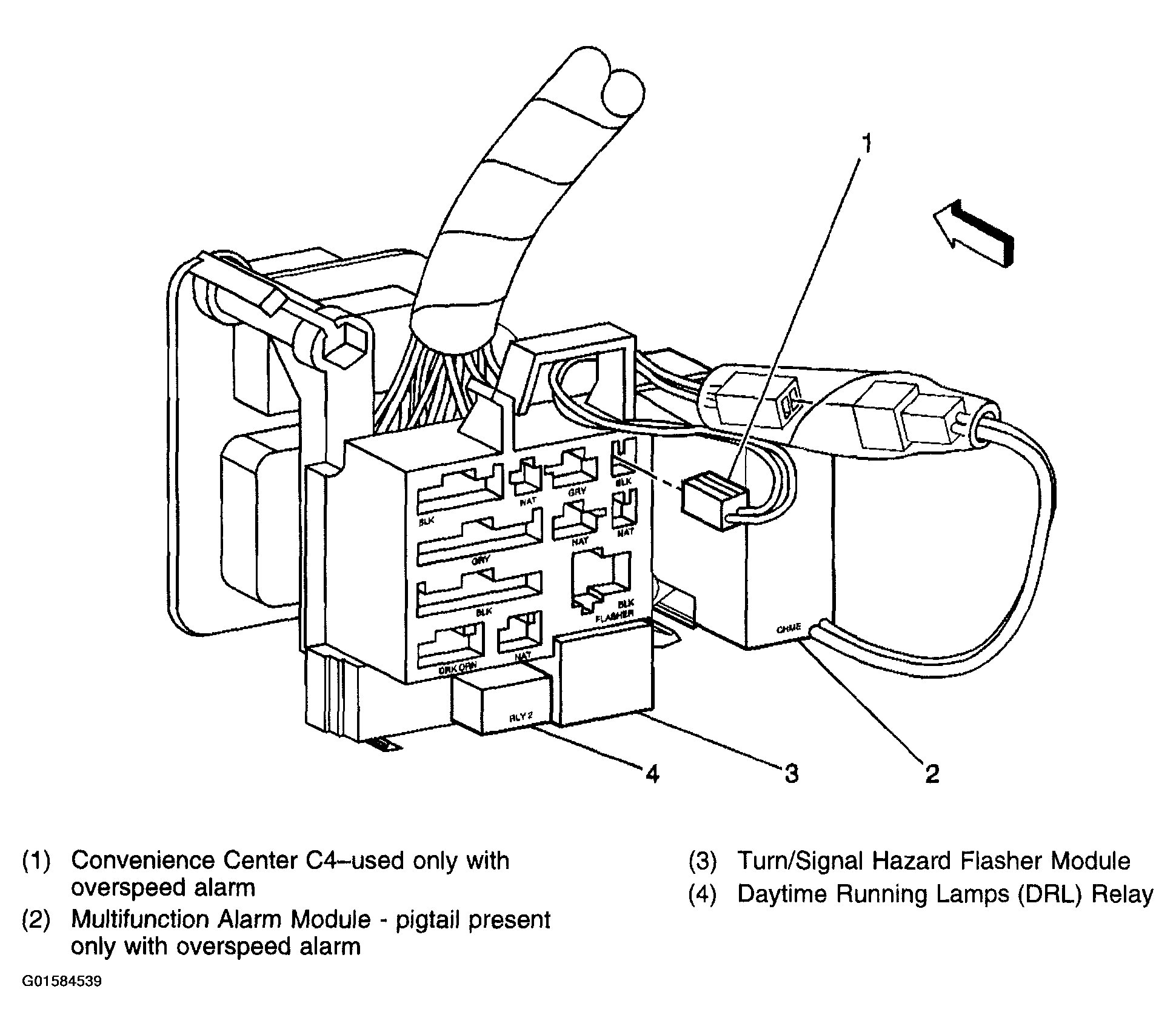

Fig 4: Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.

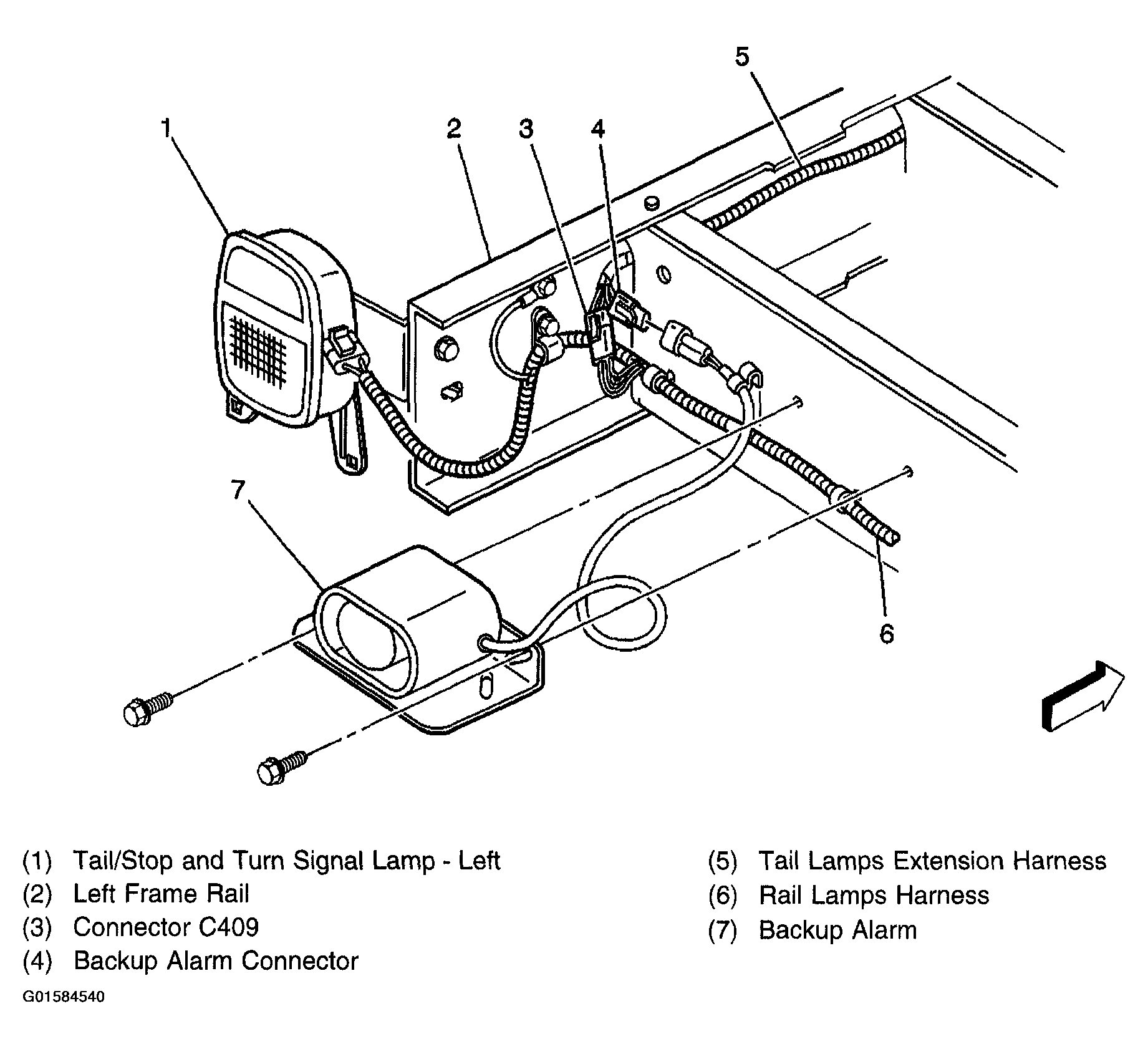

Fig 5: Backup Alarm

Courtesy of GENERAL MOTORS CORP.
