Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Connector Views >> A/T Related Connector End Views >> Tow/Haul Switch Connector, Column Wiring Harness Side

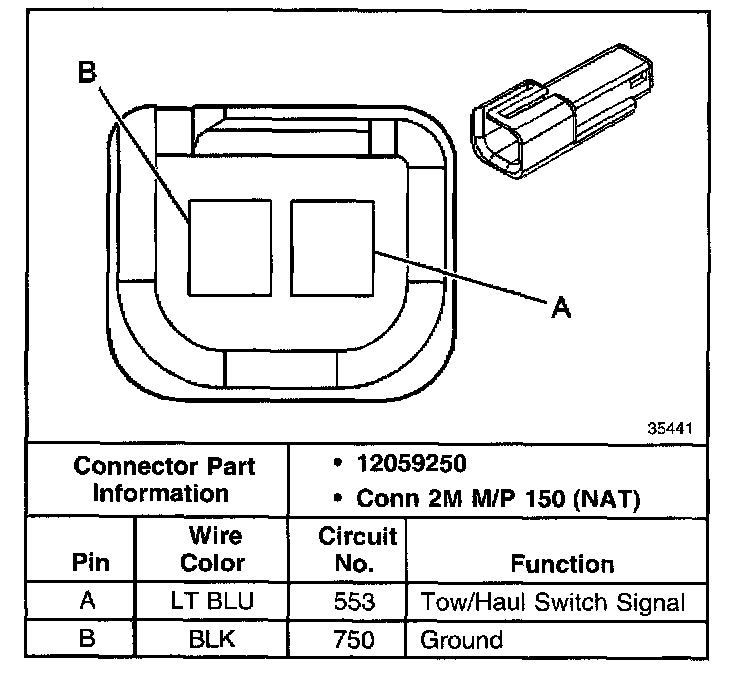

Tow/Haul Switch Connector, Column Wiring Harness Side
