Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Inline Harness Connector End Views
>>

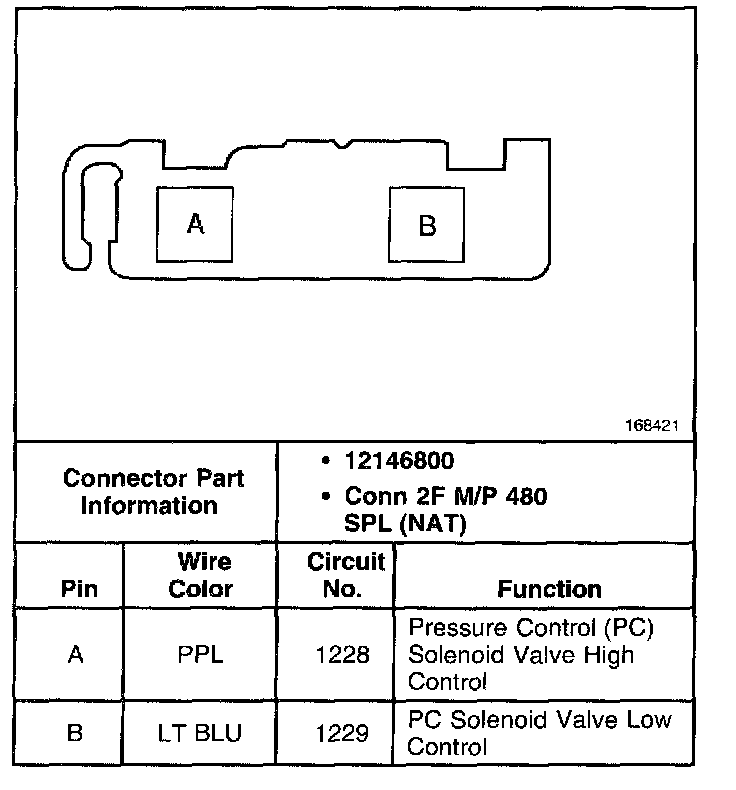

Pressure Control (PC) Solenoid Valve Connector
Pressure Control (PC) Solenoid Valve Connector
