Flywheel to Torque Converter Bolt Replacement

Flywheel to Torque Converter Bolt Replacement

Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.





2. Remove the starter.

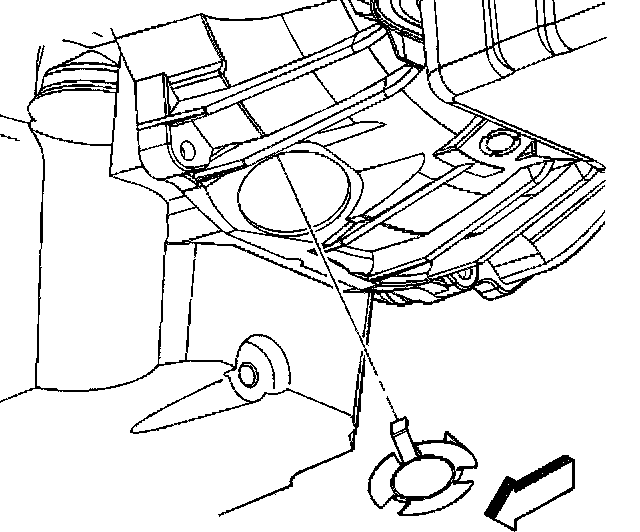

3. Remove the converter housing access plug.
4. Mark the converter and flywheel orientation for proper alignment during installation.

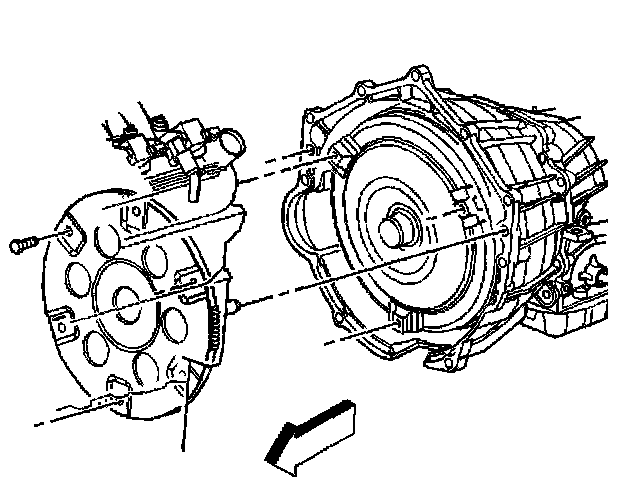

5. Remove the flywheel to converter bolts.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

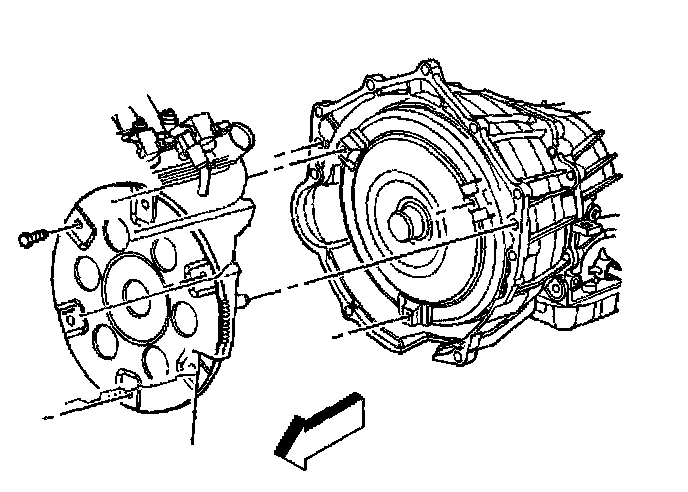

1. Install the flywheel to converter bolts. Align the marks made during removal. Do not draw the converter to the flywheel with the bolts. Hand start the bolts until all the bolts are installed.
Tighten the bolts to 60 Nm(44 ft. lbs.).

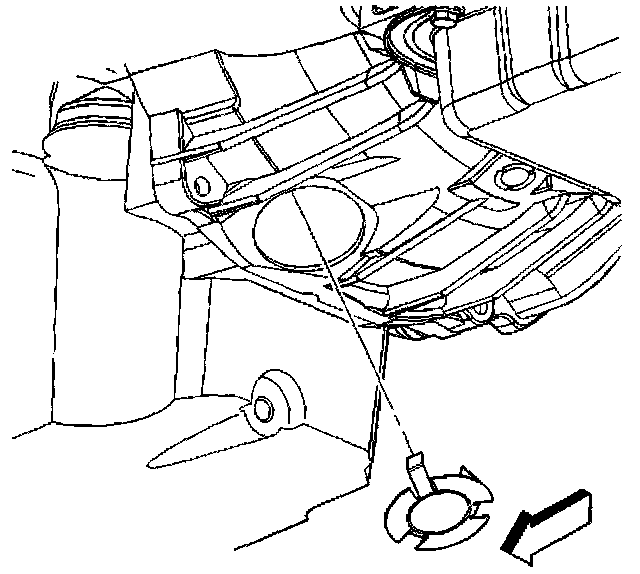

2. Install the converter housing access plug.
3. Install the starter.
4. Lower the vehicle.
