89. Torque Converter Installation

^ Tools Required
- J 21366 Converter Holding Strap

Caution: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.





1. Install the torque converter.

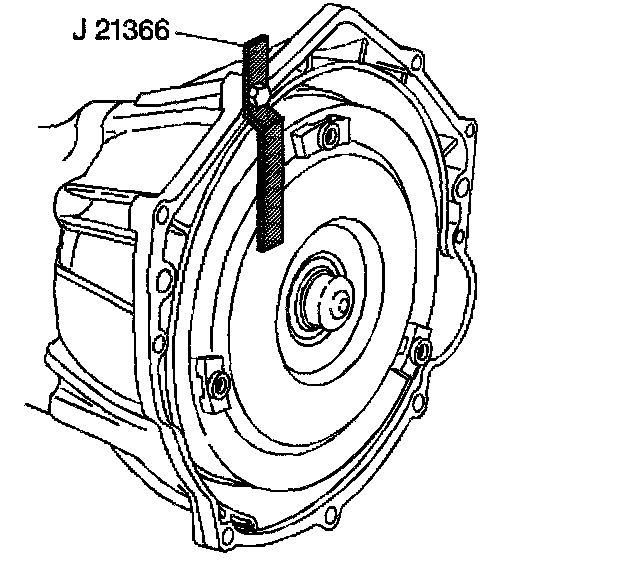

2. Install the J 21366.
