76. 1-2 Accumulator Assemble

1. Inspect the 1-2 accumulator piston (56) for the following conditions:
^ Porosity
^ Cracks
^ Scoring
^ Nicks and Scratches

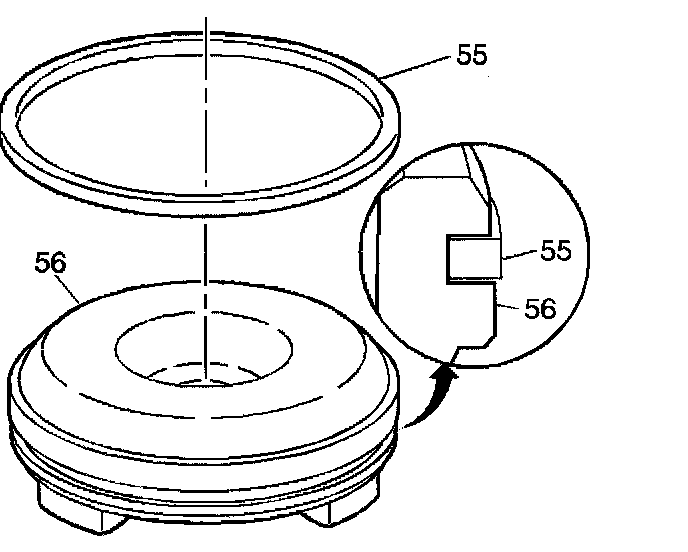

2. Install a 1-2 accumulator piston oil seal ring (55) on the 1-2 accumulator piston (56).

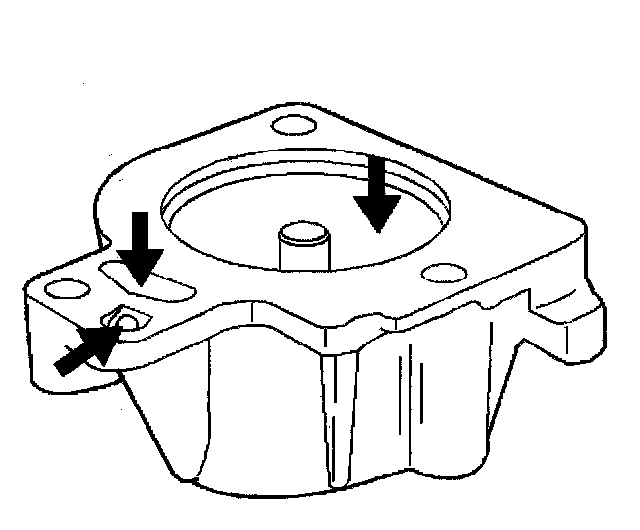

3. Inspect the 1-2 accumulator housing for the following conditions:
^ Porosity
^ Cracks
^ Scoring
^ Nicks and Scratches
^ Debris or blocked passages

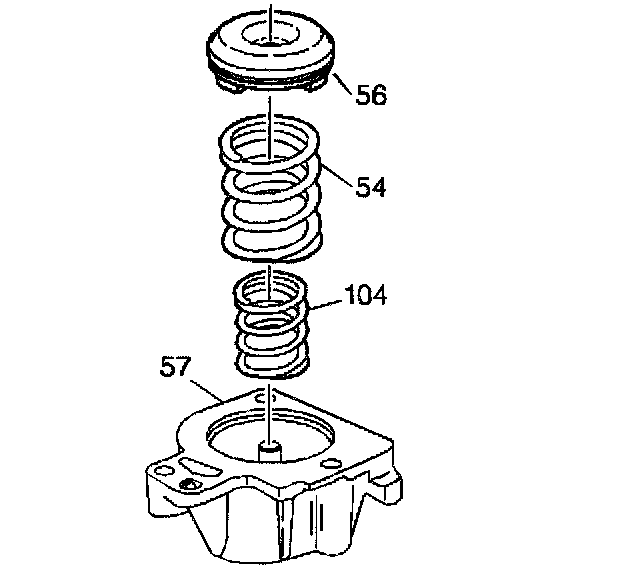

4. Install the 1-2 inner (104) and outer (54) accumulator springs.
5. Install the 1-2 accumulator piston (56).
