68. Oil Pump Cover and Body Assemble

Installation Procedure

^ Tools Required
- J 21368 Oil Pump Body and Cover Alignment Band

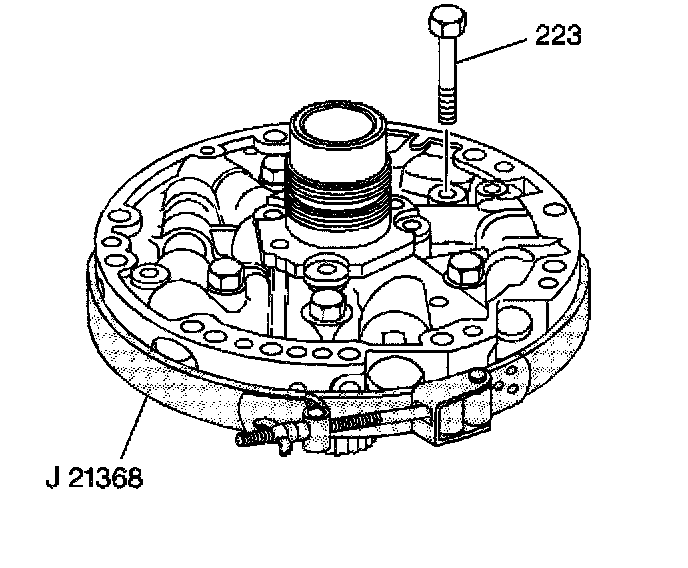

1. Place the oil pump cover onto the oil pump body and put stator shaft through a hole in the bench.
2. Install the pump cover bolts (223) finger tight only.
3. Install the J 21368.

Notice: Refer to Fastener Notice in Service Precautions.

4. Tighten the pump cover bolts (223).
^ Tighten the bolts to 24 Nm (18 ft. lbs.).
5. Remove the J 21368.
