37. Output Shaft Installation

^ Tools Required
- J 29837-A Output Shaft Support Fixture

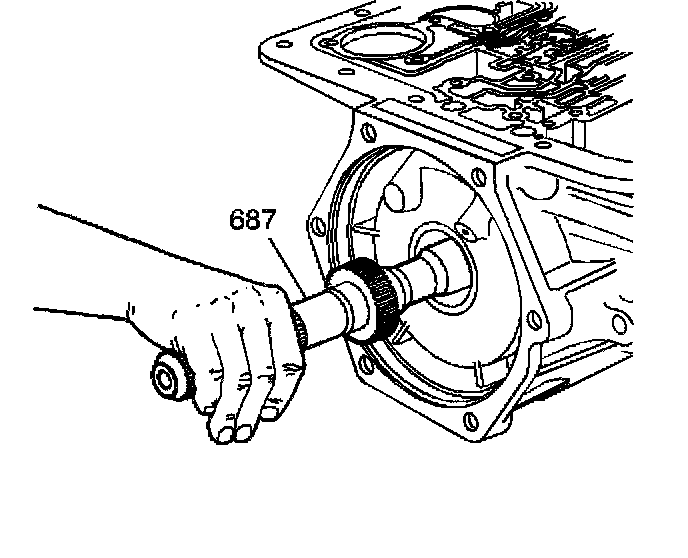

1. Install the output shaft (687).

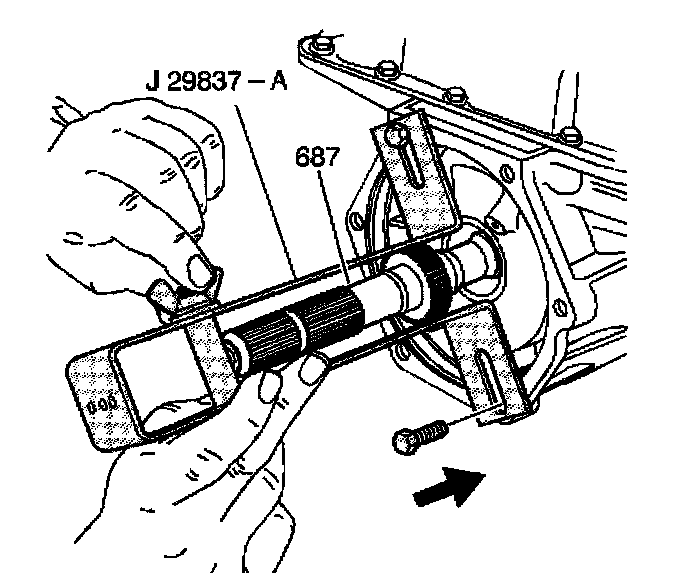

2. Install the J 29837-A.
