28. Reaction Gear and Carrier Installation

^ Tools Required
- J 36850 Assembly Lubricant

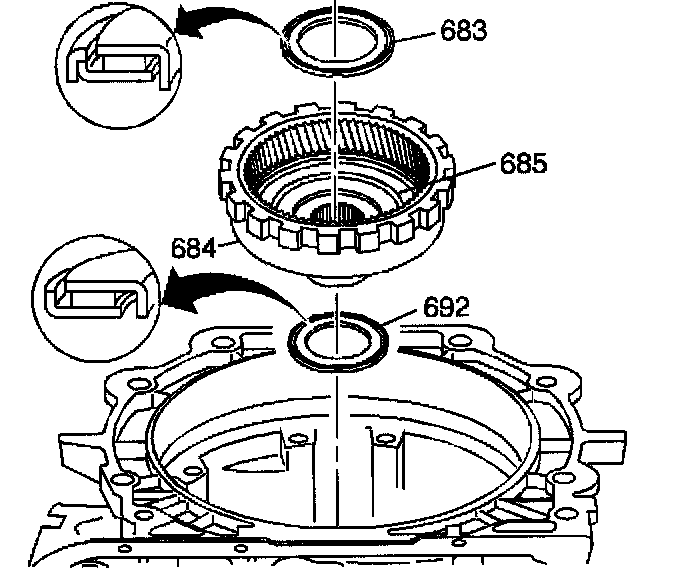

1. Install the reaction carrier/support thrust bearing assembly (683) into the internal reaction gear support (685).
2. Install the reaction gear support to case bearing (692) onto the internal reaction gear support (685). Retain the bearing using J 36850 or equivalent.
3. Install the internal reaction gear (684) and the internal reaction gear support (685) into the case.

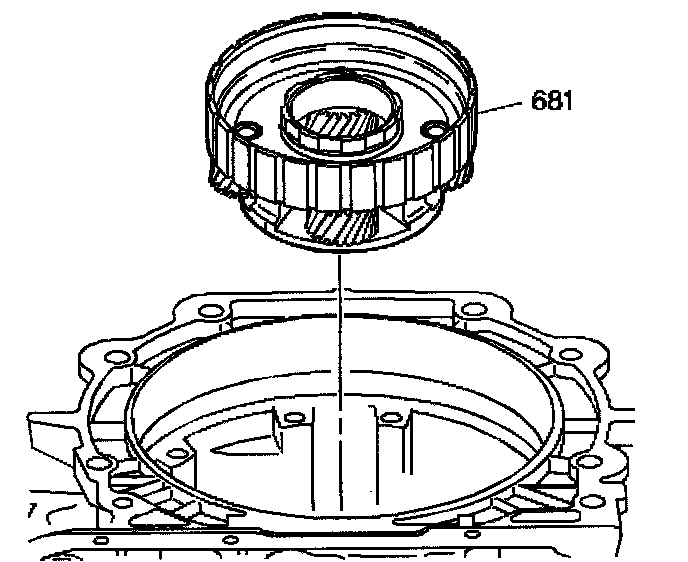

4. Install the reaction carrier assembly (681) into the internal reaction gear.
