Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Valve Trains

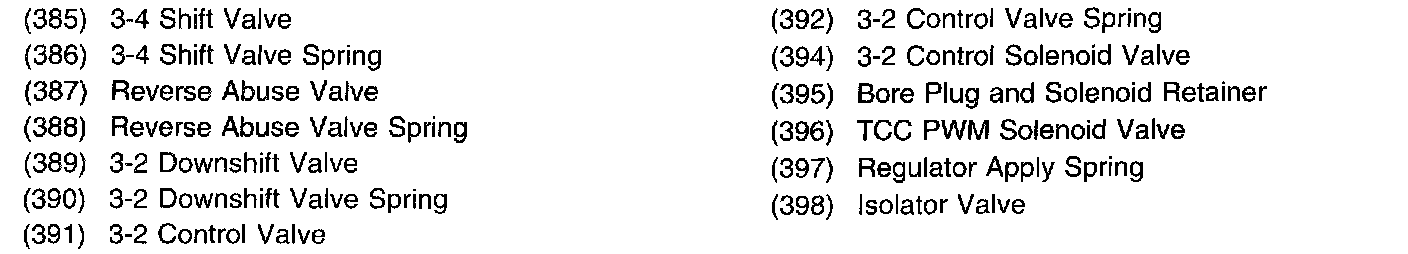

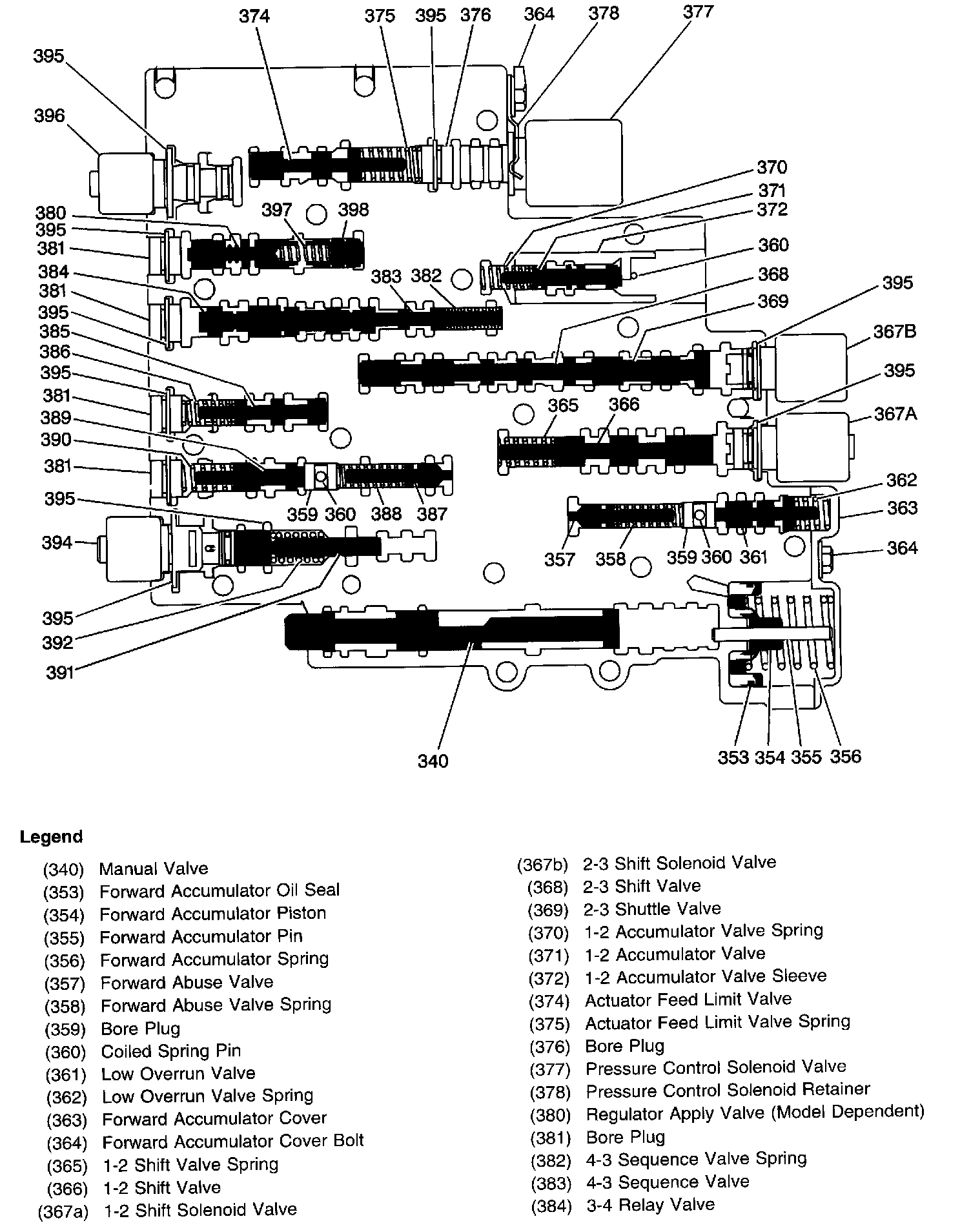

Valve Trains





Part 1 of 2





Part 2 of 2

Valve Trains
