Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Disassembled Views
>>
Parking Lock and Manual Shift Shaft Assembly

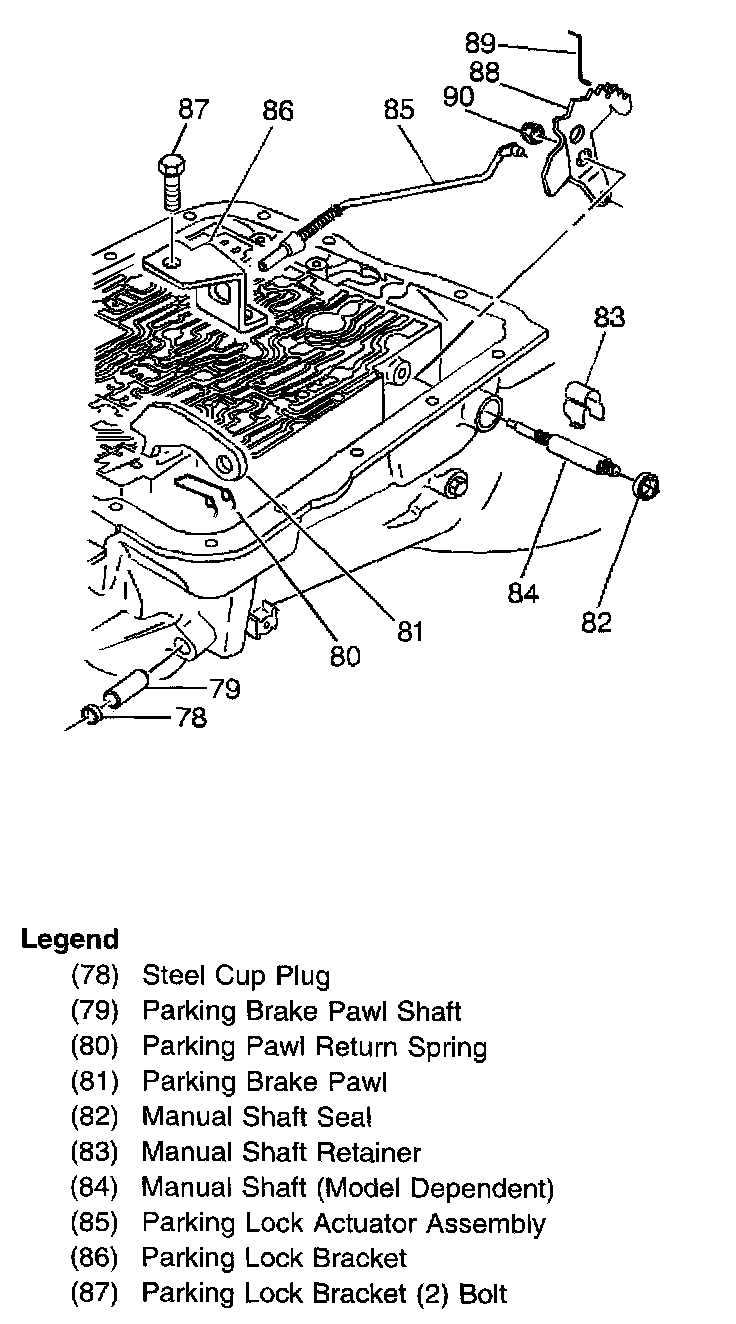

Parking Lock and Manual Shift Shaft Assembly
Part 1 of 2

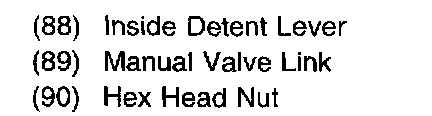

Part 2 of 2
Parking Lock and Manual Shift Shaft Assembly
