GMC
>>
2001
>>
Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Disassembled Views
>>
Control Valve Body Assembly
Control Valve Body Assembly

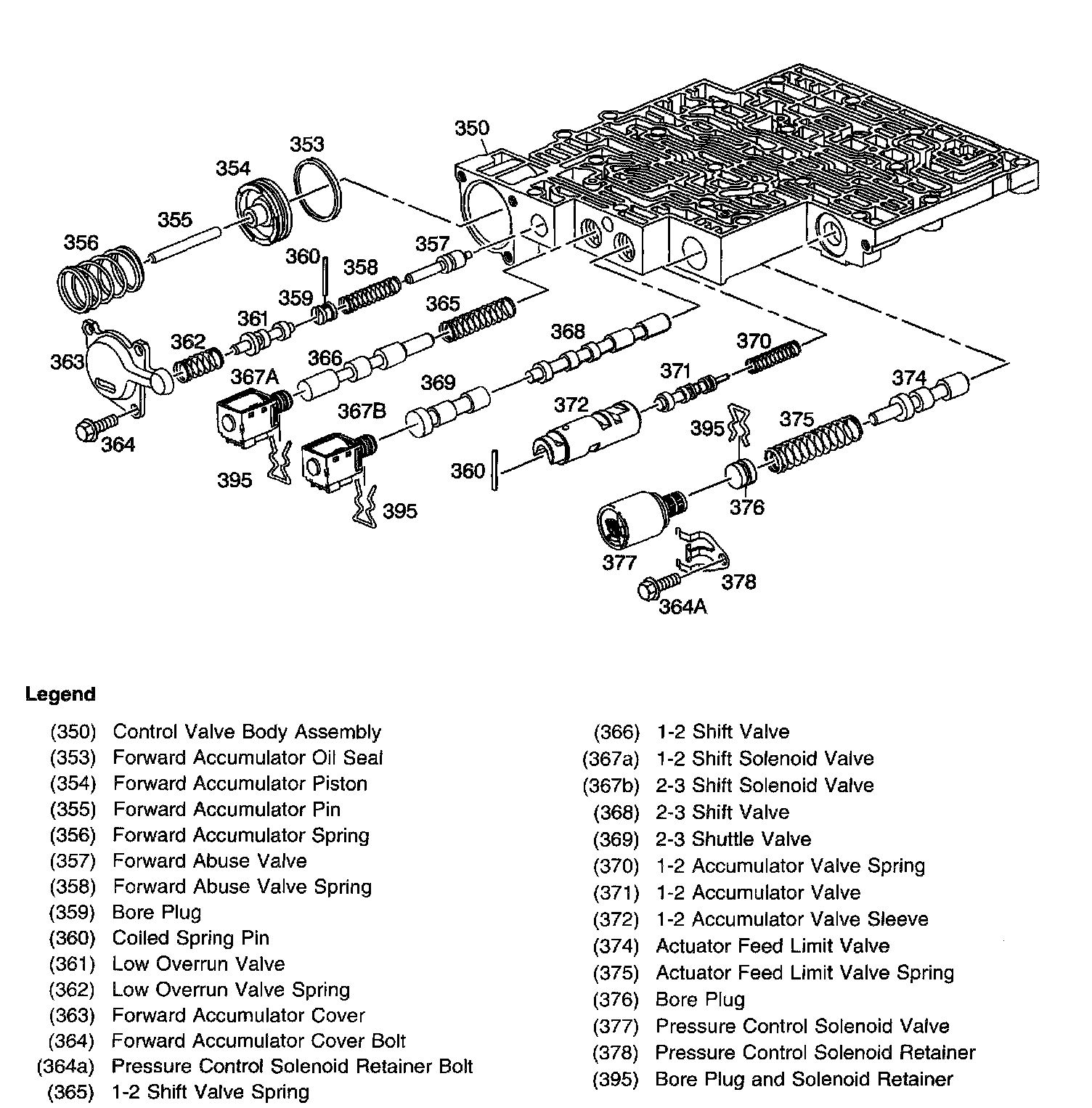

Control Valve Body Assembly (1 of 2)

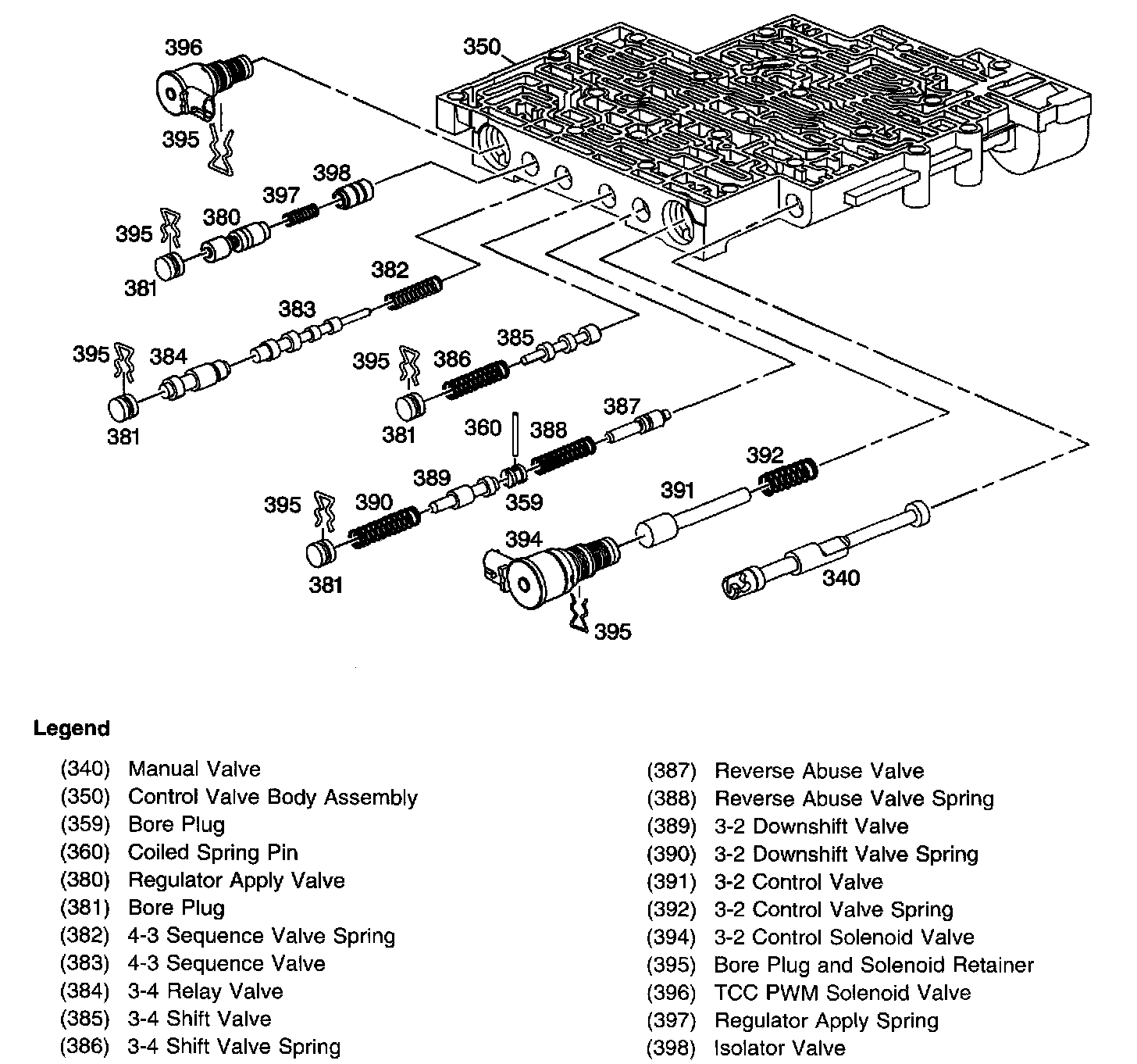

Control Valve Body Assembly (2 of 2)
