Front

Removal Procedure





1. Remove the rotor. Refer to Wheel Hub, Bearing, and Seal Replacement.
2. Remove the wheel stud.

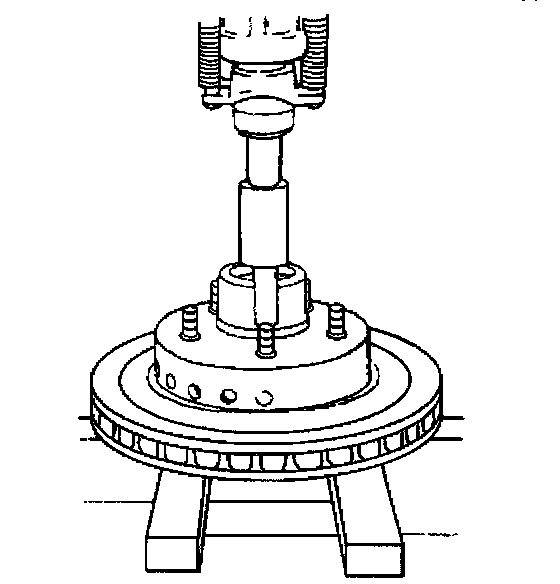

- Press the stud out using an arbor press.
- Do not damage the wheel mounting surface on the wheel hub flange.

Installation Procedure





1. Install the stud into the hole in the wheel hub.
1.1. Start the serrated stud into the hole in the wheel hub by tapping lightly with a hammer.
1.2. The stud must be square with the wheel hub before pressing on the arbor press.
2. Install the rotor. Refer to Wheel Hub, Bearing, and Seal Replacement.
