Upper Control Arm Bushings Replacement

Upper Control Arm Bushings Replacement

- Tools Required
- J 22269-1 Accumulator and Servo Piston Remover

Removal Procedure





1. Remove the upper control arm. Refer to Upper Control Arm Replacement.
2. Mount the upper control arm in a vise.

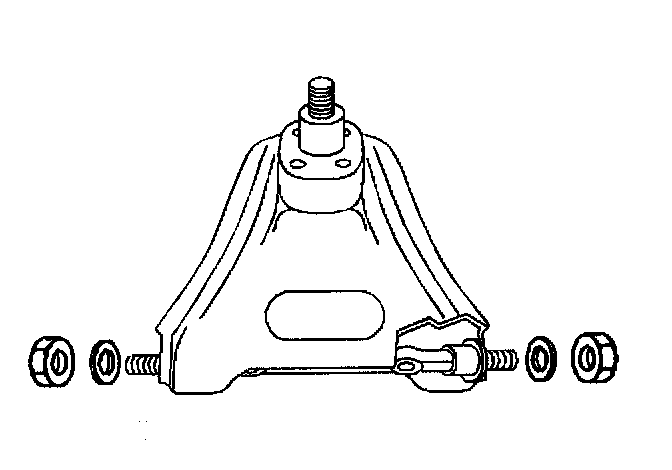

3. Remove the upper control arm shaft nuts and the retainers.

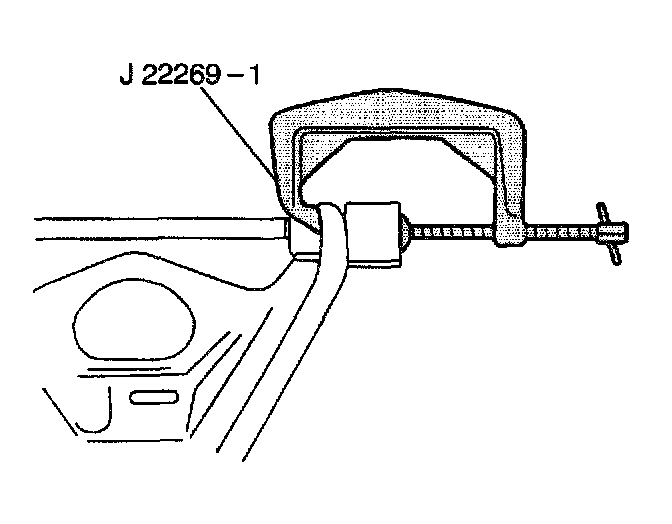

4. Remove the upper control arm bushings. Use the J22269-1, a slotted washer, and a short piece of pipe slightly larger than the bushing.

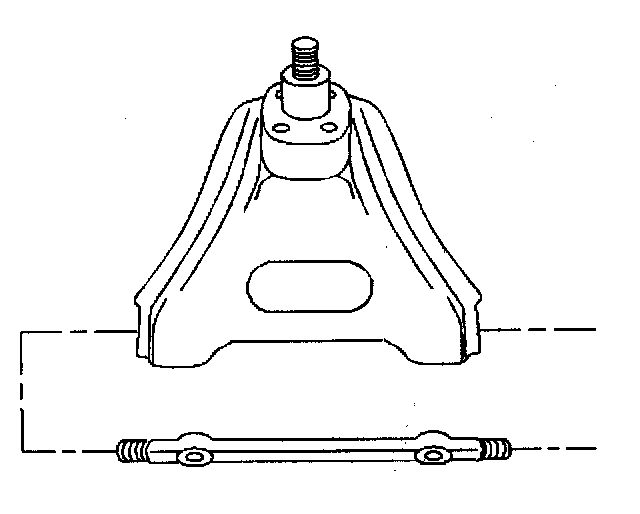

5. Remove the upper control arm shaft from the upper control arm.

Installation Procedure





1. Install the upper control arm shaft into the upper control arm.

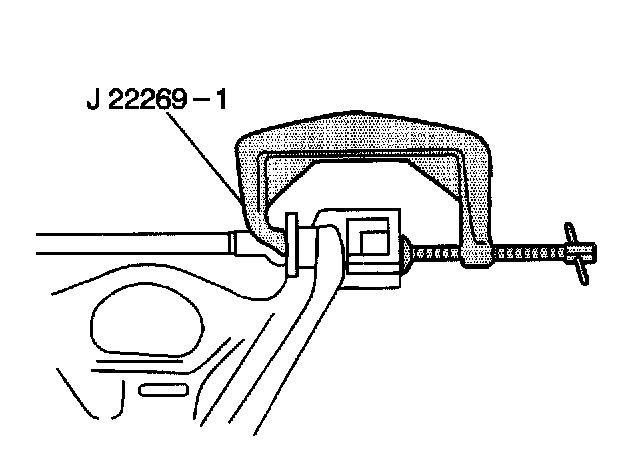

2. Install the upper control arm bushings into the upper control arm. Use the J22269-1 and a short piece of pipe that is the same outer diameter as the rubber bushing.

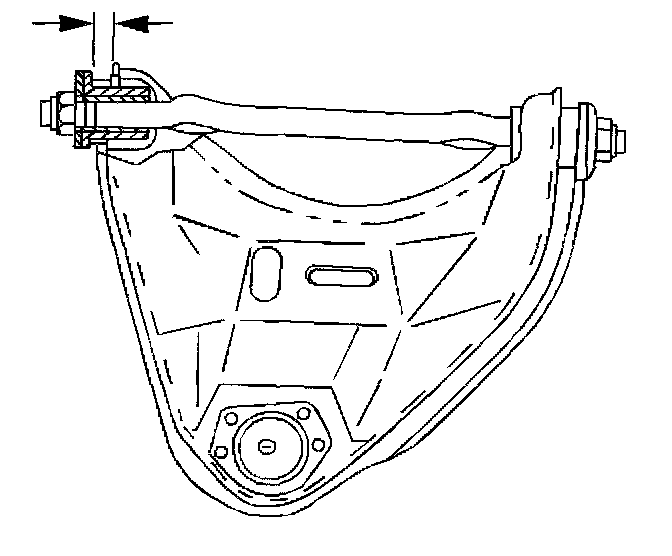

3. Tighten the J22260-1 until the bushing is positioned on the shaft and the control arm as shown. The measurement should be 12.8 - 13.8 mm (0.48 - 0.52 inch) on both ends.

Notice: Refer to Fastener Notice in Service Precautions.





4. Install the upper control arm shaft retainers and the retaining nuts.
- Tighten the upper control arm shaft retaining nuts to 115 Nm (85 ft. lbs.).
5. Install the upper control arm to the vehicle. Refer to Upper Control Arm Replacement.
