Steering Shaft, Lower Bearing & Jacket - Disassemble

1. Remove the electronic lock module assembly. Refer to Electronic Column Lock Module - Disassemble - Off Vehicle.

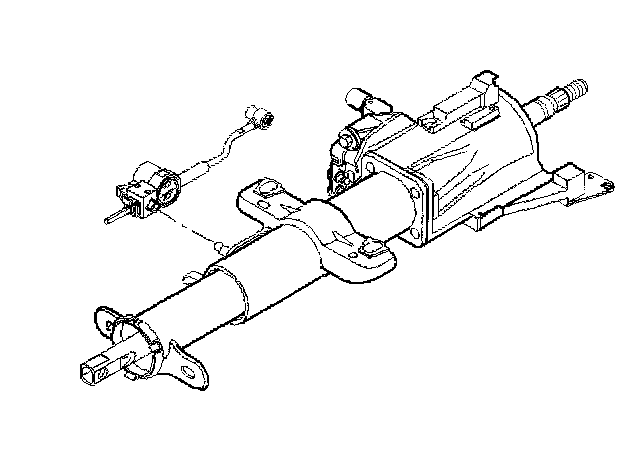

2. Remove the turn signal and multifunction switch assembly. Refer to Turn Signal and Multifunction Switch Assembly - Disassemble - Off Vehicle.

Important: Using excessive force in removing the automatic transmission shift lock control from the steering column may cause damage.

3. Remove the automatic transmission shift lock control.
4. Use a screwdriver to pry the automatic transmission shift lock control from the steering column jacket assembly.





5. Remove the 3 flat head 6-lobed socket tapping screws.
6. Remove the park lock cable assembly.

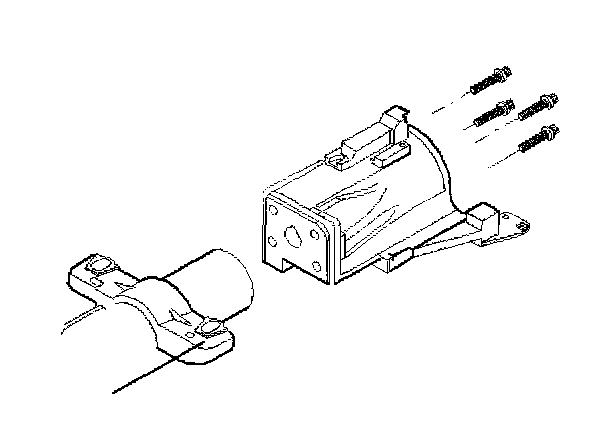

7. Remove the 4 TORX screws from the steering column housing assembly.
8. Remove the steering column housing assembly from the steering column housing jacket.

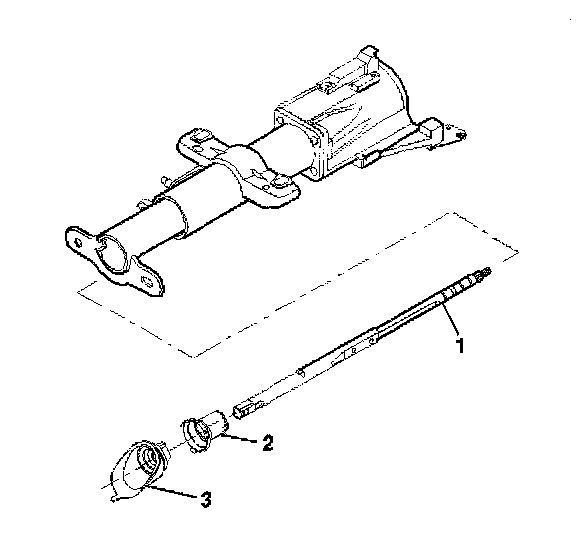

9. Remove the following parts from the steering column jacket assembly:
9.1. The steering column seal (3).
9.2. The adapter and bearing assembly (2).
9.3. The lower steering shaft (1).
