Tilt Lever

Removal Procedure

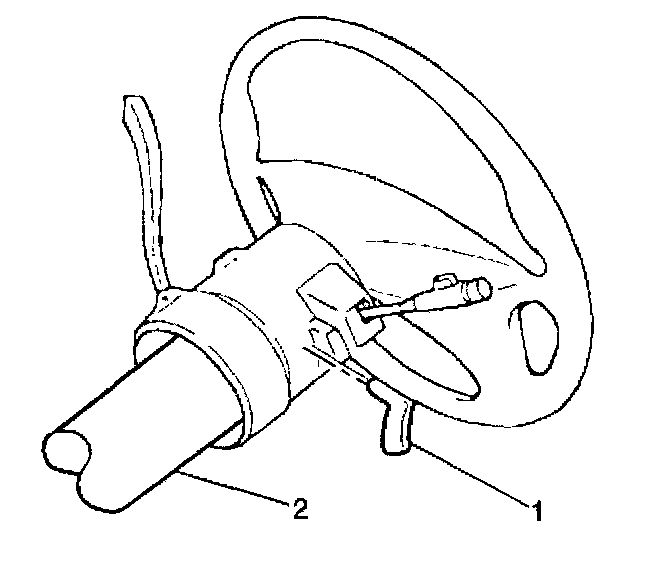

Pull the tilt steering column lever (1) out from the steering column (2).

Installation Procedure





Align the tilt steering column lever (1) and push the lever into the steering column (2).
