Ignition & Key Alarm Switch - Assemble

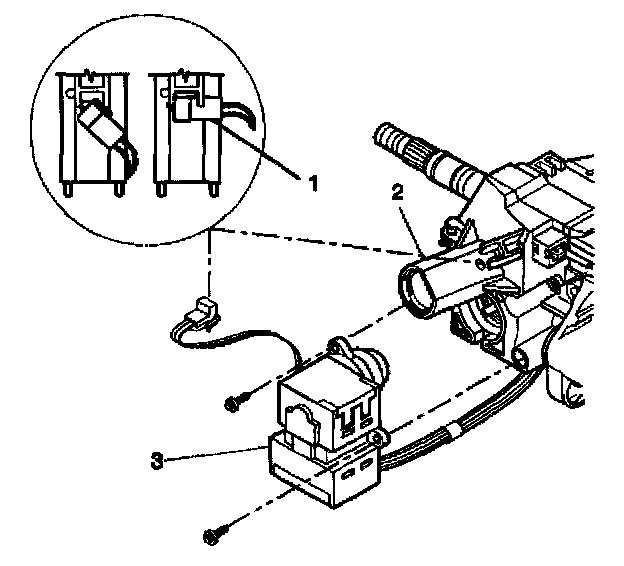

1. Install the ignition and key alarm switch assembly (3) onto the electronic lock module assembly (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the 2 tapping screws into the ignition and key alarm switch assembly (3).
- Tighten the tapping screws to 1.5 Nm (13 inch lbs.).
3. Install the key alarm connector (1) to the electronic lock module assembly (2)

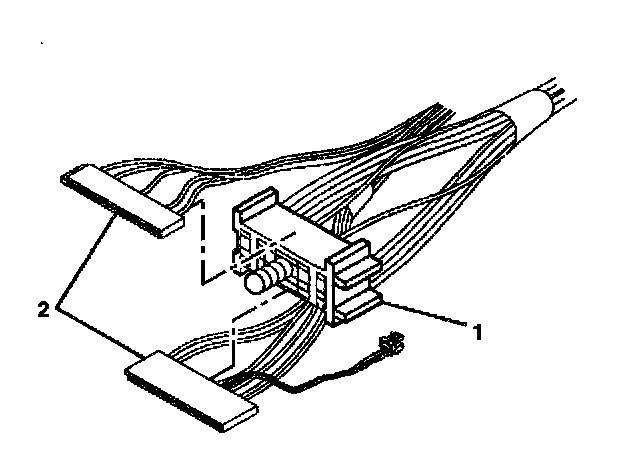

4. Slide the 2 connectors (2) onto the bulk head connector (1).

Notice: Refer to Improper Routing of the Wire Harness Notice in Service Precautions.

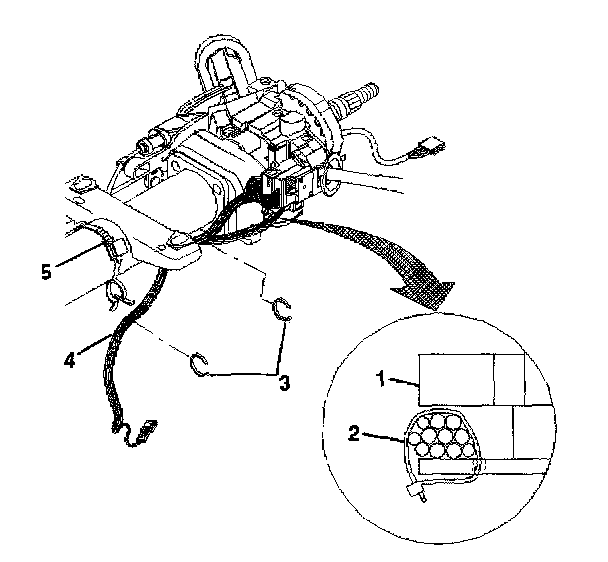

5. Install the wire harness strap (2) into the steering column tilt head assembly (1).
6. Install the wire harness straps (3) onto the wire harness assembly (4).
7. Install the wire harness assembly (4) into the wire harness strap (5).
8. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle.
9. Enable the inflatable restraint steering wheel module. Refer to Enabling the SIR System in Restraint Systems.
