Home >> GMC >> 2001 >> Safari Van 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C200 - C299 >> C200 (I/P to Main Body)

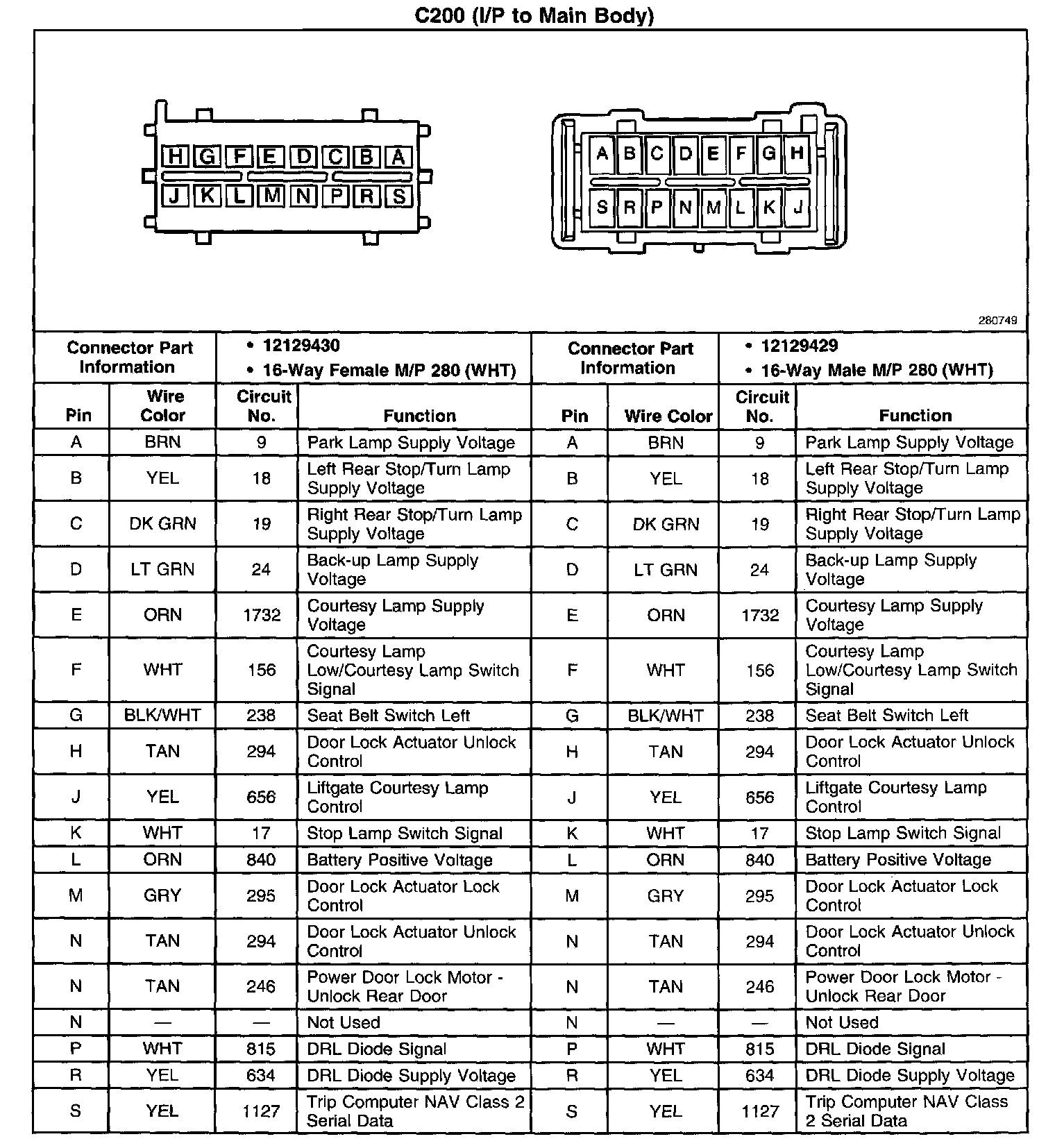

C200 (I/P to Main Body)

C200 (I/P To Main Body):
