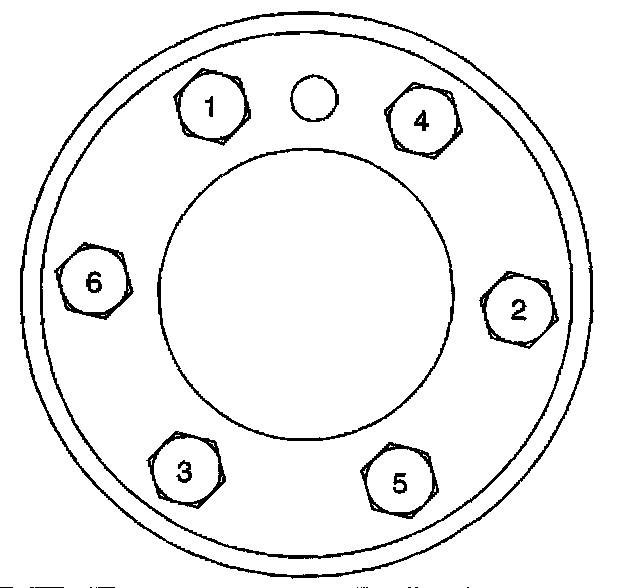

Tightening Sequence - Flex Plate to Crankshaft





- Tighten the engine flywheel bolts in sequence to 100 Nm (74 ft. lbs.).
