Seat Belt Latch Replacement - Center Rear

REMOVAL PROCEDURE




1. Remove the rear seat from the vehicle.

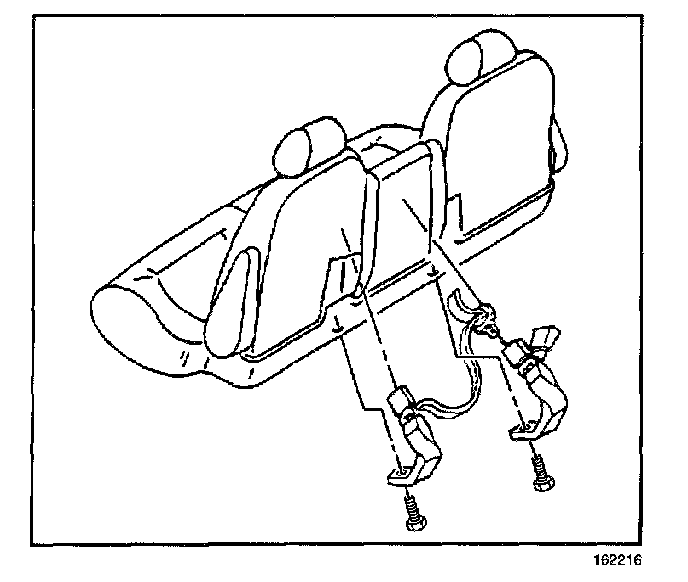

2. Remove the seat belt latch retaining bolts from the seat frame.

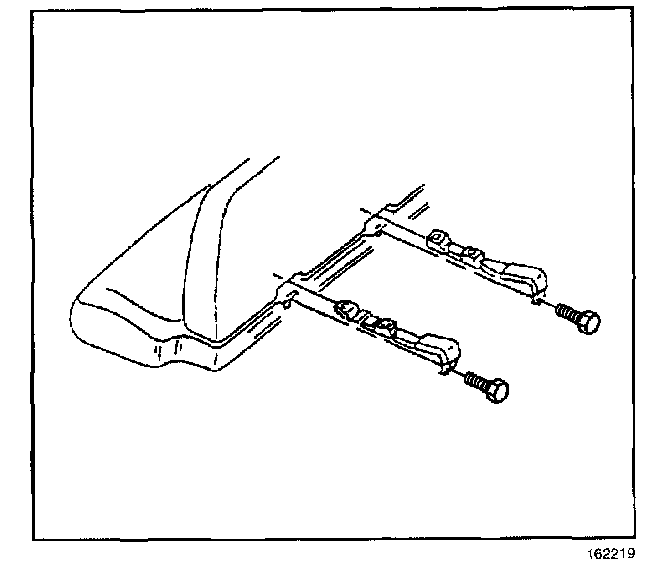

3. Remove the seat belt latch retaining bolts from the seat frame.
4. Remove the seat belt latch through the seat back.
5. Remove the seat belt latch from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt latch to the vehicle through the seat back.




2. Install the seat belt latch to the vehicle through the seat back.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the bolts that hold the seat belt latch to the seat frame.

Tighten
Tighten the seat belt latch bolts to 53 N.m (39 lb ft).

4. Install the rear seat to the vehicle.
