Rear (RPO ZP7)

REMOVAL PROCEDURE

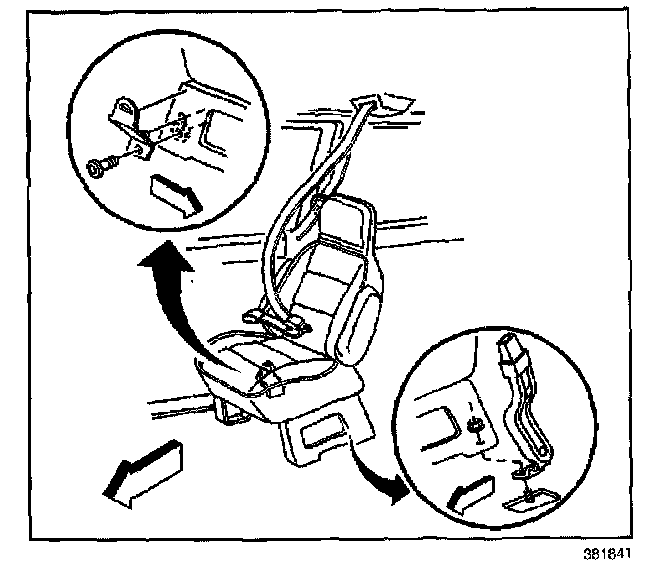

1. Remove the seat belt buckle latch bolt from the side of the riser.
2. Remove the seat belt buckle latch. The seat doesn't have to be removed from the vehicle.

INSTALLATION PROCEDURE




1. Install the seat belt buckle latch to the side of the riser.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt buckle latch bolt.

Tighten
Tighten the seat belt buckle latch bolt to the riser to 35 N.m (26 lb ft).

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
