Rear (RPO ZP8)

REMOVAL PROCEDURE

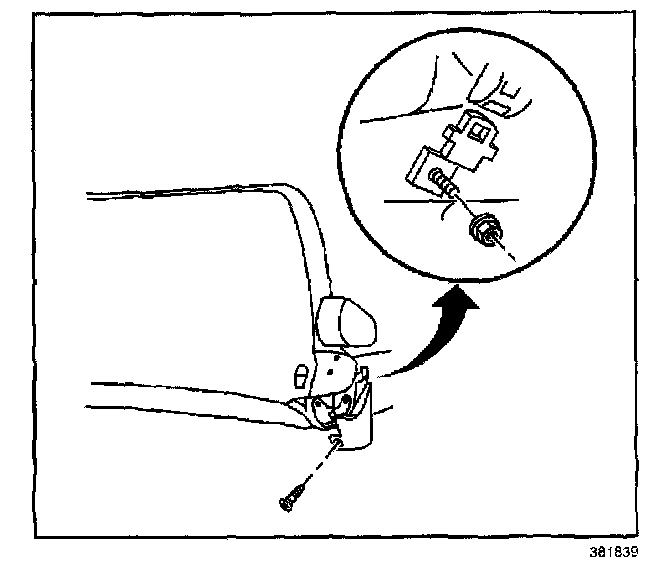

1. Remove the rear bench seat side cover screw to expose the seat belt latch bolt.
2. Remove the rear bench seat side cover screw.
3. Remove the seat bell latch nut.
4. Remove the seat belt latch.

INSTALLATION PROCEDURE




1. Install the seat belt latch.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the seat belt latch nut.

Tighten
Tighten the seat belt latch nut to 53 N.m (39 lb ft).

3. Install the rear bench seat side cover and screw.

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
