Rear

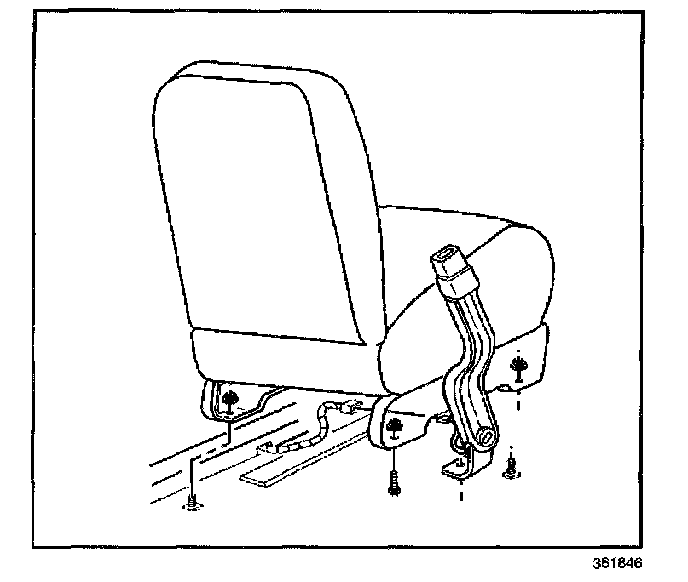

REMOVAL PROCEDURE




1. Remove the nuts located on the inside of the seat riser.
2. Remove the seat belt buckle from the floor stud by lifting upward on the seat. The seat doesn't have to be removed from the vehicle.
3. Remove the seat belt buckle.

INSTALLATION PROCEDURE




1. Install the seat belt buckle.
2. Install the seat belt buckle to the floor stud.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the nuts located at the base of the seat riser.

Tighten
Tighten the bucket seat to the floor to 35 N.m (26 lb ft).
