Center Rear

REMOVAL PROCEDURE

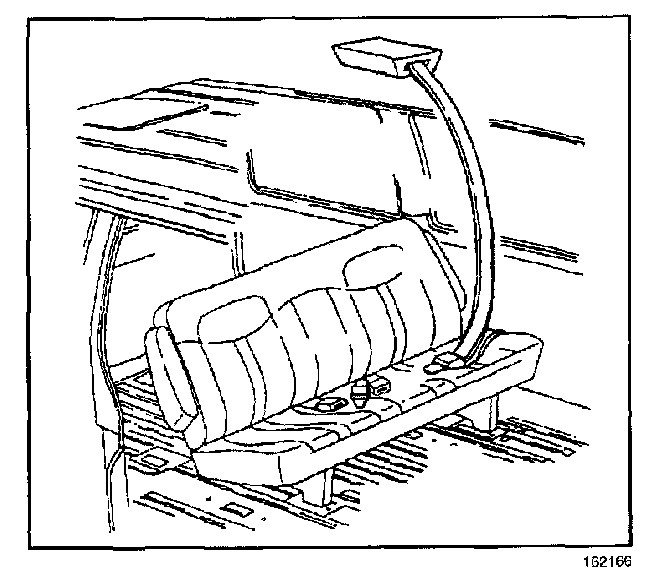

1. Remove the rear bench seat from the vehicle.
2. Remove the seat belt buckle retaining bolt from the seat frame.




3. Remove the seat belt buckle through the seat back.

INSTALLATION PROCEDURE




1. Install the seat belt buckle through the seat back.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the seal belt buckle retaining bolt to the seat frame.

Tighten
Tighten the seat belt buckle bolt to the seat frame to 53 N.m (39 lb ft).

3. Install the rear bench seat to the vehicle.
