Knee Bolster Bracket Replacement - Right

REMOVAL PROCEDURE




1. Remove the passenger's knee bolster. Refer to knee Bolster Replacement - Right

IMPORTANT: Do not remove the instrument panel to replace right or right center knee bolster brackets.




2. Roll the instrument panel down.

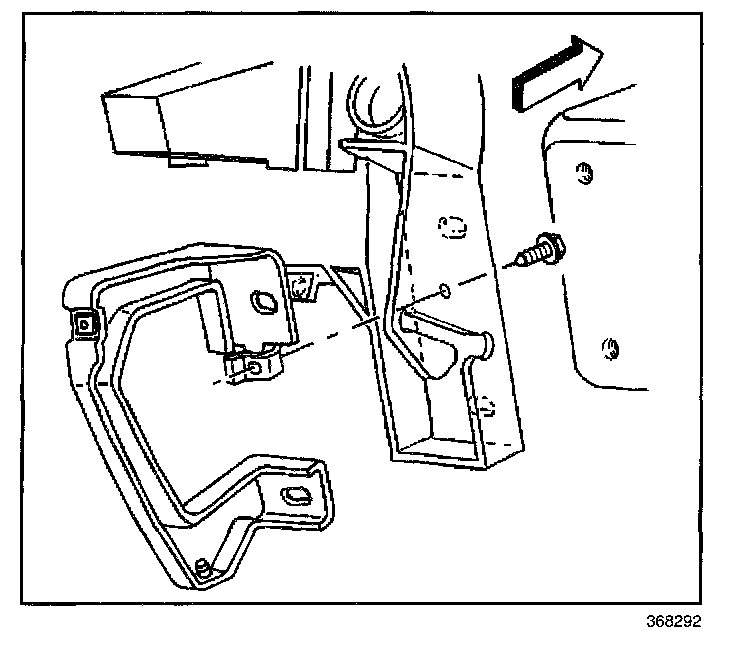

3. Remove the knee bolster bracket right side screws.
4. Remove the knee bolster bracket right side.

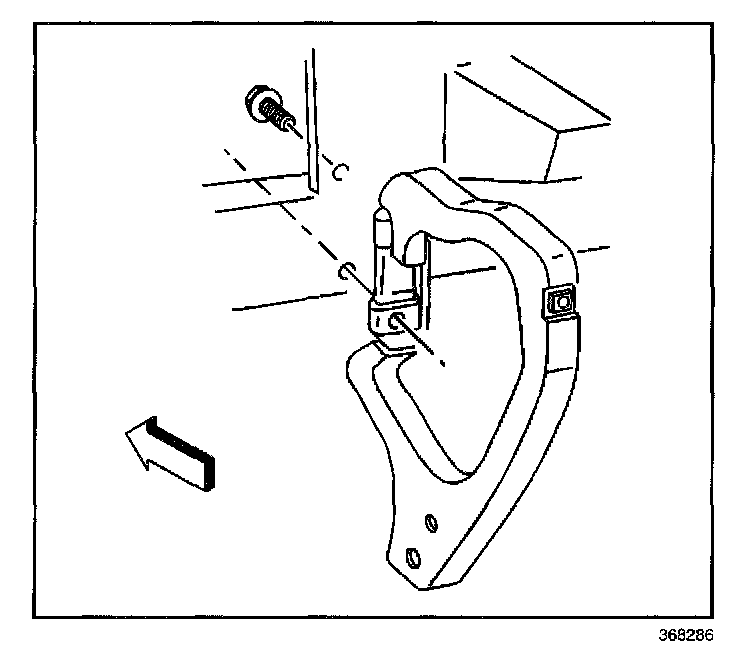

5. Remove the knee bolster bracket right center screws.
6. Remove the knee bolster bracket right center.

INSTALLATION PROCEDURE




1. Install the knee bolster bracket right center.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the knee bolster bracket right center screws.

Tighten
Tighten the knee bolster bracket right center screws to 8 N.m (71 lb in).




3. Install the knee bolster bracket right side.
Install the knee bolster bracket right side screws.

Tighten
Tighten the knee bolster bracket right side screws to 8 N.m (71 lb in).

4. Roll the instrument panel up.
5. Install the passenger's knee bolster. Refer to Knee Bolster Replacement - Right
