Knee Bolster Bracket Replacement - Passenger

Passenger Knee Bolster Bracket Replacement

Removal Procedure

1. Remove the passenger's knee bolster. Refer to Passenger Knee Bolster Replacement (Knee Bolster Replacement - Passenger).

Important: Do not remove the instrument panel to replace right or right center knee bolster brackets.


2. Roll the instrument panel down. Refer to Instrument Panel Assembly Replacement (Instrument Panel (IP) - Assembly Replacement).

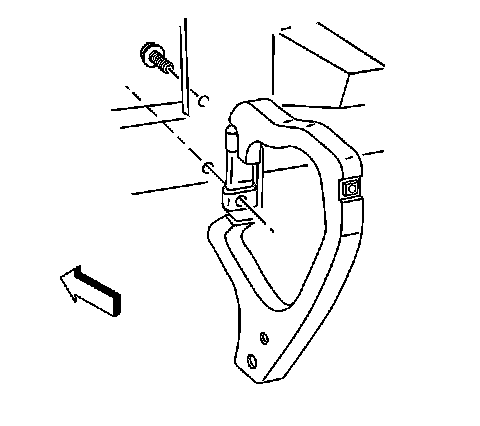

3. Remove the knee bolster bracket right side screws.
4. Remove the knee bolster bracket right side.

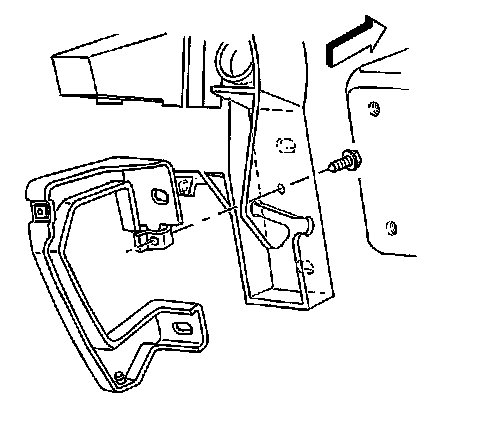

5. Remove the knee bolster bracket right center screws.
6. Remove the knee bolster bracket right center.

Installation Procedure




1. Install the knee bolster bracket right center.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the knee bolster bracket right center screws.

Tighten the knee bolster bracket right center screws to 8 Nm (71 lb.in.).




3. Install the knee bolster bracket right side.
Install the knee bolster bracket right side screws.

Tighten the knee bolster bracket right side screws to 8 Nm (71 lb.in.).

4. Roll the instrument panel up. Refer to Instrument Panel Assembly Replacement (Instrument Panel (IP) - Assembly Replacement).
5. Install the passenger's knee bolster. Refer to Passenger Knee Bolster Replacement (Knee Bolster Replacement - Passenger).
