Safari Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Related Connector End Views
>>

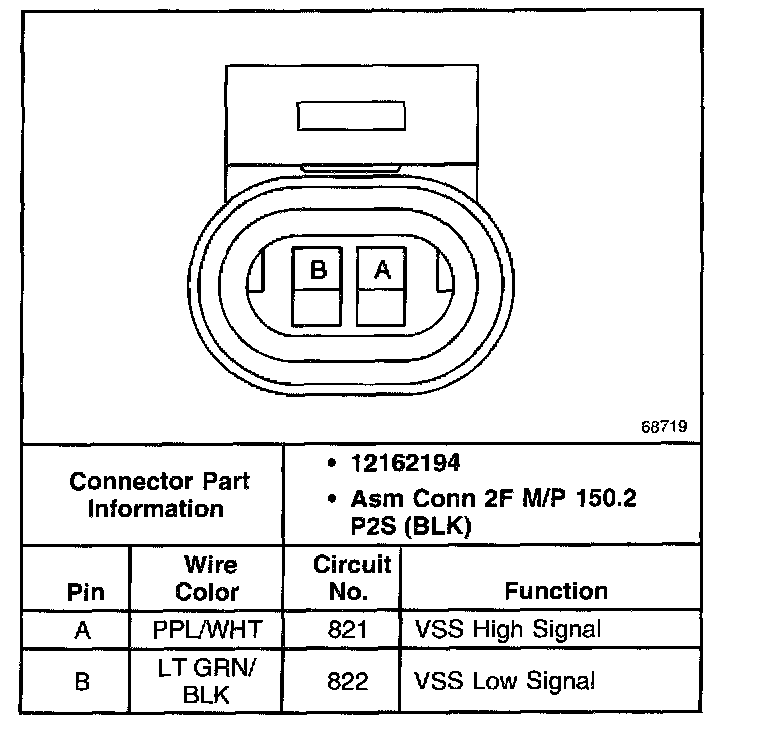

Vehicle Speed Sensor Assembly Connector, Wiring Harness Side
Vehicle Speed Sensor Assembly Connector, Wiring Harness Side
